6901cf786b5b3f0ec081844fProduct Number: 71181-70 Product Number: 71180-70 Product Number: 71183-70

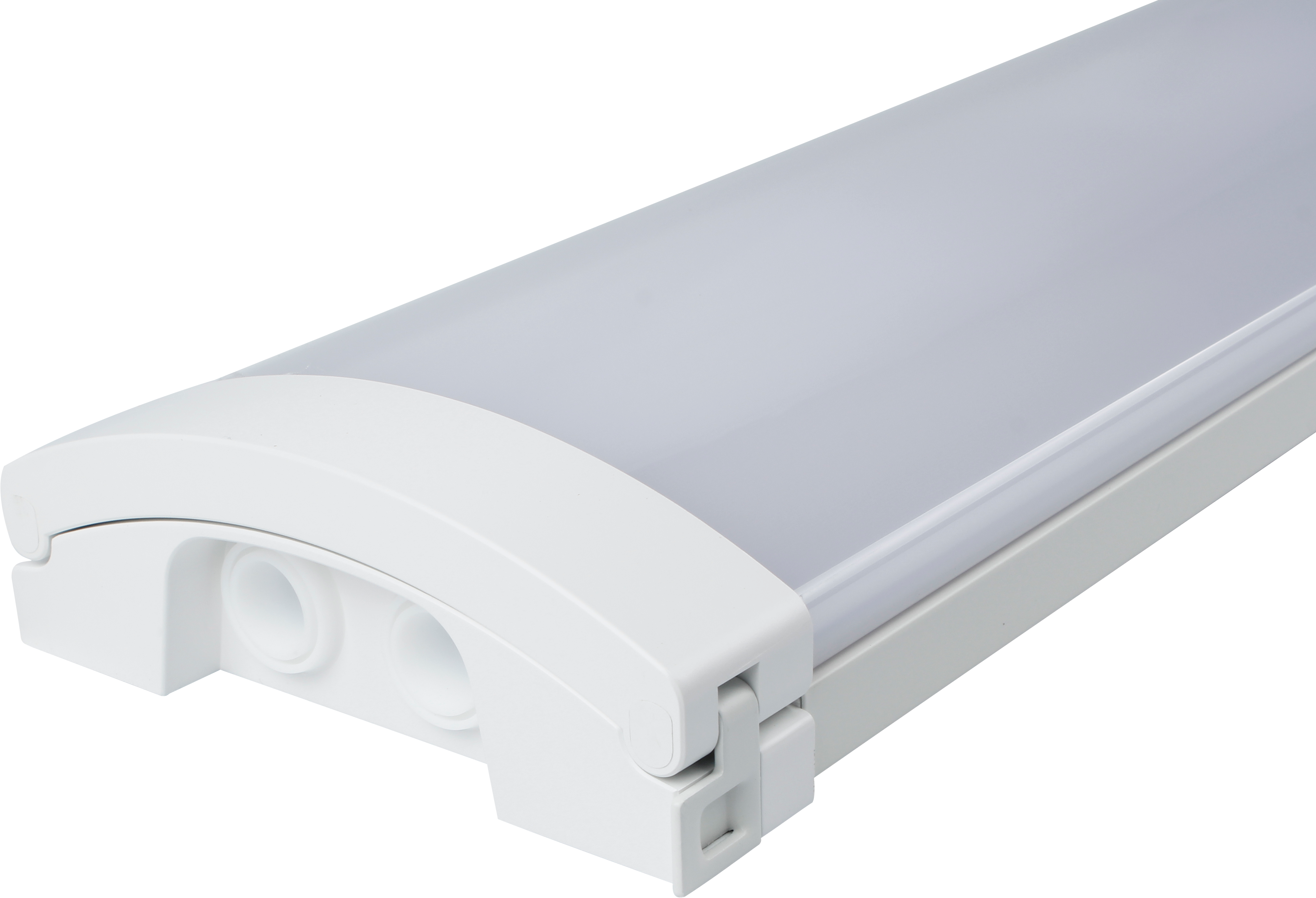

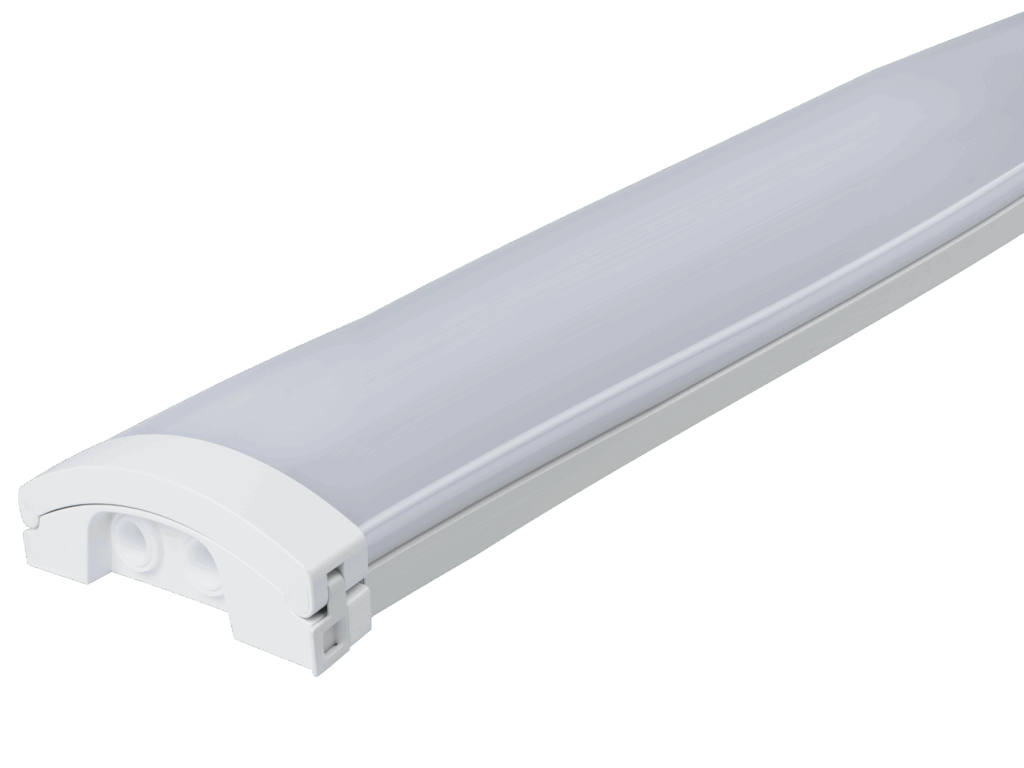

Grid Batten

Dimensions

Dimensions

1220 × 15,5 × 55 mm

620 × 15,5 × 55 mm

1510 × 15,5 × 55 mm
Weight

3050 g

N/A

N/A

Specification

Material

Metal/plastic

Stål
Color

White
Electrical Safety Class

Class I
IP-Grade

IP44
Electrical Connection

terminal block

fixed mounting
IK Rating

IK07
EL Number

3304593

3304592

3304591
GTIN

7041661282322

7041661282315

7041661283503

Technical

Wattage LED

19W
Total Wattage

22-40W
Ground Current/Voltage

AC220-240V
Replaceable LED

Yes
Supplied Light Sources

Yes
Brightness

3080-5600lm
Light Efficiency Luminaire

140lm/W
Color Rendering

>80
Color Temperature

2CCT (3000K/4000K)

3000K/4000K
SDCM

SDCM<3

<3
Life Span

200000
Light Angle

110°

110
Dimmable

No
Driver

built-in
UGR Rating

UGR<22
