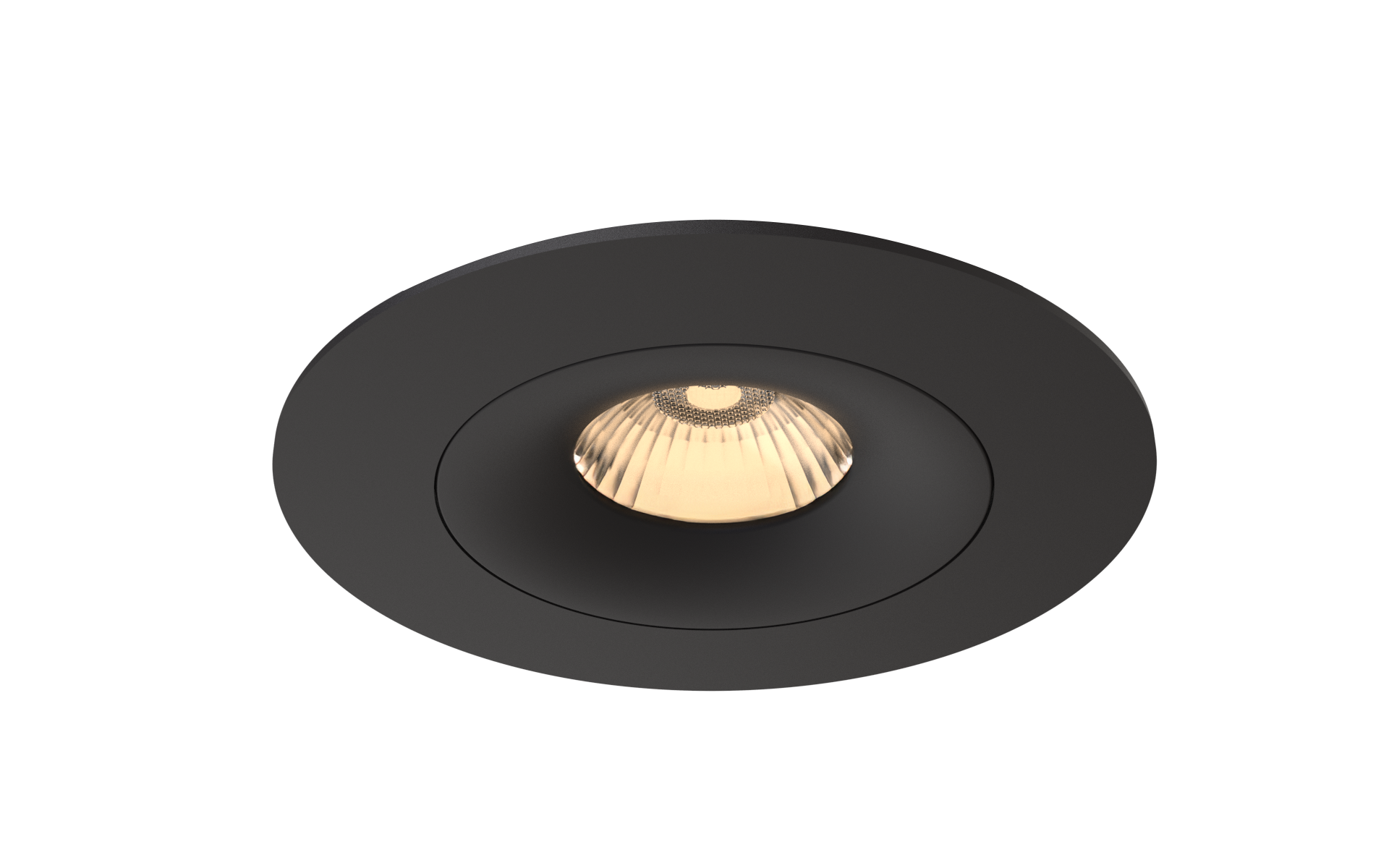

Lynx downlight

Product Number:
Dimensions
Dimensions

90 × 9 × 35 mm

90 × 9 × 35 mm

90 × 9 × 35 mm

90 × 9 × 35 mm

Cut out size

73-83mm

Recess Depth

33mm

Weight

195 g

195 g

195 g

195 g

Specification
Material

Aluminium

Color

Black

White

White

Black

Electrical Safety Class

Class II

IP-Grade

IP44

Electrical Connection

terminal block

IK Rating

IK07

ISOsafe

Yes

GTIN

7041661285422

7041661285439

7041661285415

7041661285408

Technical
Wattage LED

7W

Total Wattage

8W

Ground Current/Voltage

220-240V

Replaceable LED

No

Supplied Light Sources

Yes

Brightness

650 lm

660 lm

640 lm

630 lm

Light Efficiency Luminaire

81 lm/W

83lm/W

80 lm/W

79 lm/W

Color Rendering

>97

Color Temperature

3000K

3000K

2700K

2700K

SDCM

<3

Life Span

137000

Light Angle

36°

Dimmable

Yes

Dimmable Type

Trailing edge / Leading edge

Driver

external included

UGR Rating

UGR<18

UGR<19

UGR<19

UGR<18
