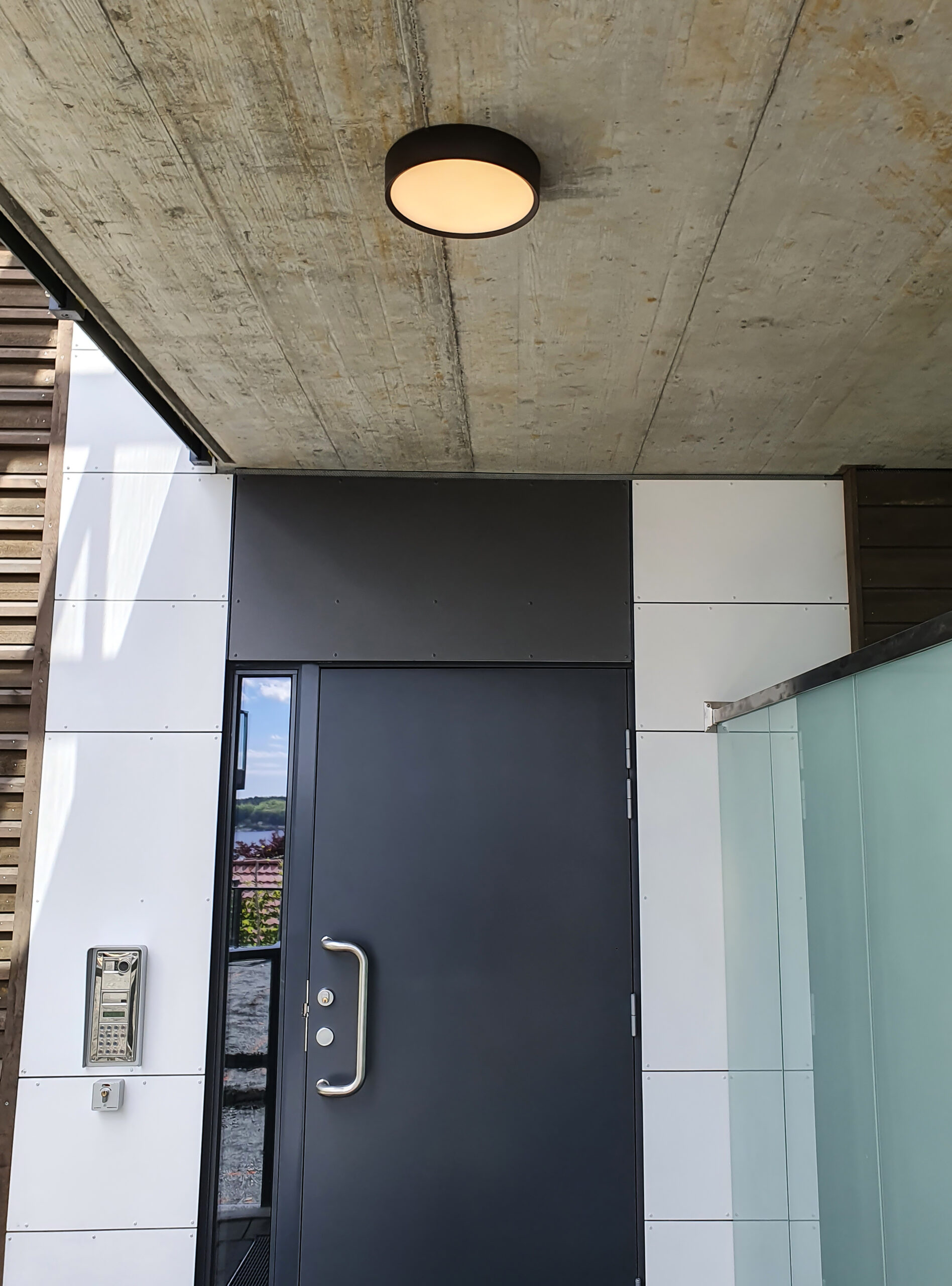

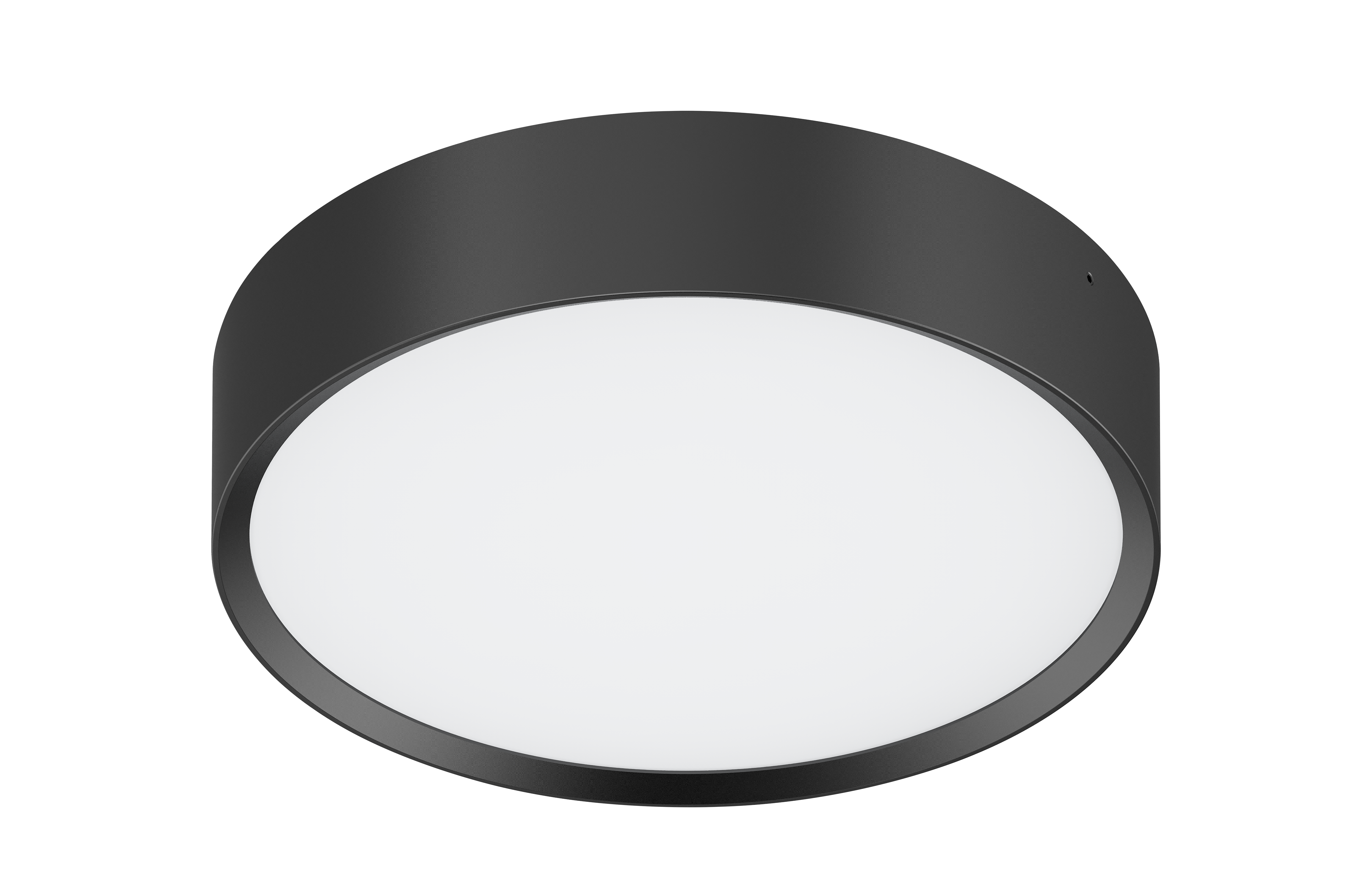

MANDAL ceiling lamp
Mandal roof was decided to be launched as a roof variant of our existing Mandal wall. These two are manufactured to meet several criteria among the electricians out there; among other things, it is very easy to install, has IP65 and IK10, high light output and dimmable.
Dimensions
| Dimensions | 250 × 25 × 58 mm |
|---|---|
| Weight | 1050 g |
Specification
| Material | Aluminum/plastic |
|---|---|
| Color | Black |
| Electrical Safety Class | Class I |
| IP-Grade | IP65 |
| Electrical Connection | fixed mounting |
| IK Rating | IK10 |
| Mounting Principle | fully assembled |
| EL Number | 3102555 |
| GTIN | 7041661270596 |
Technical
| Wattage LED | 12W |
|---|---|
| Ground Current/Voltage | 220-240V |
| Lamp Base | LED |
| Replaceable LED | No |
| Max Wattage | 12W |
| Supplied Light Sources | Yes |
| Wattage Supplied Light Sources | 12W |
| Brightness | 1050 lm |
| Light Efficiency Luminaire | 85lm/W |
| Color Rendering | >80 |
| Color Temperature | 3000K |
| SDCM | <6 |
| Life Span | 50000 |
| Light Angle | 110 |
| Dimmable | Yes |
| Dimmable Type | Trailing edge |
| Driver | built-in |
