71246Product Number: 71246-15 Product Number: 71246-70

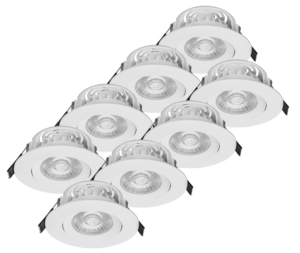

PITCH D2W downlight

Dimensions

Dimensions

95 × 9,5 × 31 mm

95 × 9,5 × 31 mm
Cut out size

73-83mm
Recess Depth

32mm (47mm with cage)
Weight

300 g

300 g

Specification

Material

Aluminium
Color

Black

White
Electrical Safety Class

Class II
IP-Grade

IP44
Electrical Connection

Plug/Terminal block
IK Rating

IK08
ISOsafe

Yes
EL Number

3208690

3208691
GTIN

7041661276406

7041661276413

Technical

Wattage LED

8W
Total Wattage

9W
Ground Current/Voltage

230V
Lamp Base

LED
Replaceable LED

No
Supplied Light Sources

Yes
Brightness

500

520 lm
Light Efficiency Luminaire

60 lm/W
Color Rendering

95
Color Temperature

3000-1800K
SDCM

SDCM<3
Life Span

100000
Light Angle

37°
Dimmable

Yes
Dimmable Type

Trailing edge / Leading edge
Driver

external included
UGR Rating

UGR<17
