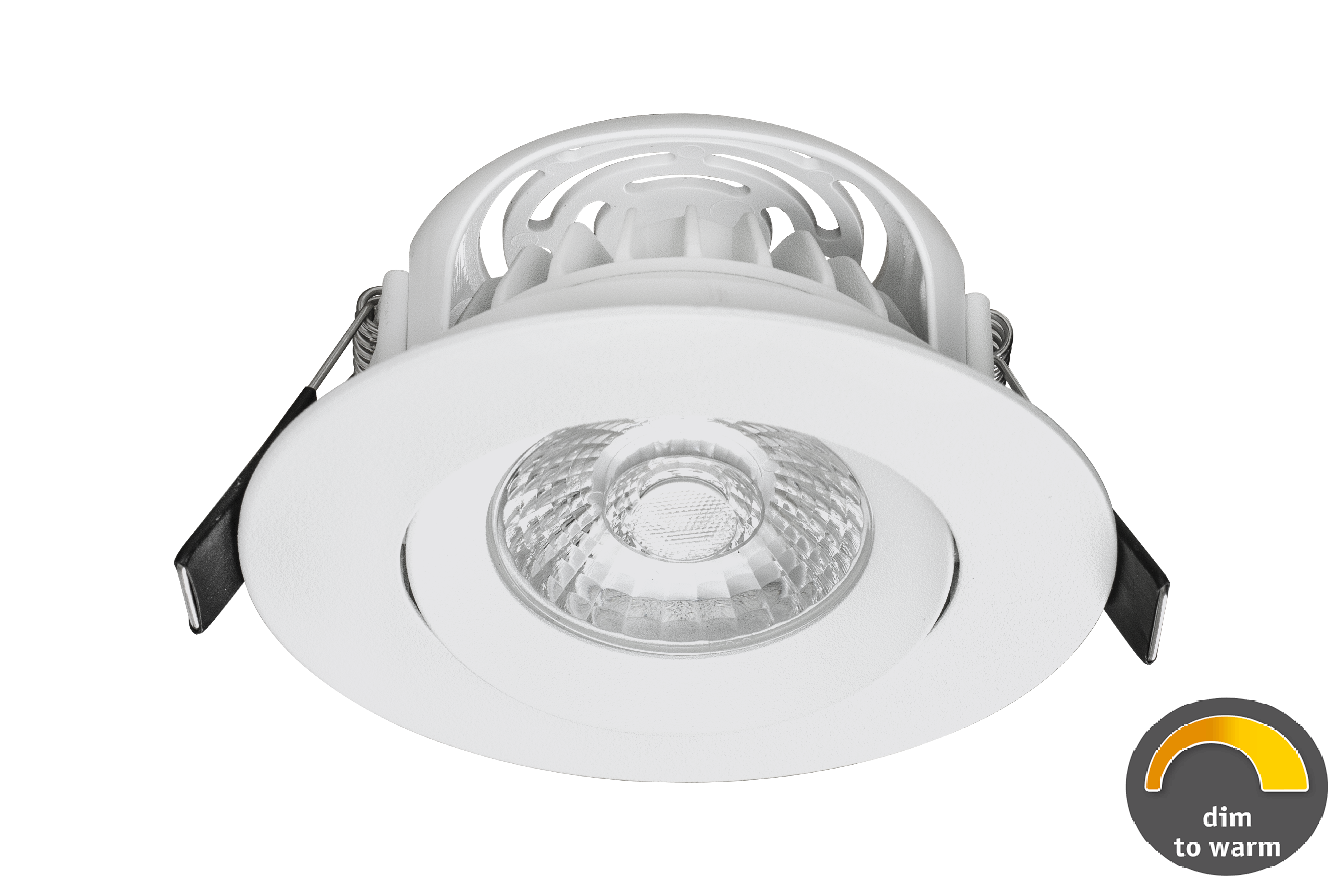

PITCH D2W downlight

Dimensions

Dimensions	95 × 9,5 × 31 mm 95 × 9,5 × 31 mm
Cut out size	73-83mm
Recess Depth	32mm (47mm with cage)
Weight	300 g 300 g

Specification

Material	Aluminium
Color	Black White
Electrical Safety Class	Class II
IP-Grade	IP44
Electrical Connection	Plug/Terminal block
IK Rating	IK08
ISOsafe	Yes
GTIN	7041661276406 7041661276413

Technical

Wattage LED	8W
Total Wattage	9W
Ground Current/Voltage	230V
Lamp Base	LED
Replaceable LED	No
Supplied Light Sources	Yes
Brightness	500 520 lm
Light Efficiency Luminaire	60 lm/W
Color Rendering	95
Color Temperature	3000-1800K
SDCM	SDCM<3
Life Span	100000
Light Angle	37°
Dimmable	Yes
Dimmable Type	Trailing edge / Leading edge
Driver	external included
UGR Rating	UGR<17
