71136Product Number: 71136-15 Product Number: 71136-70

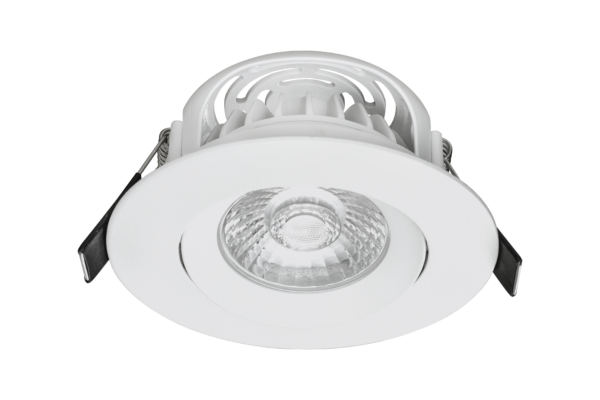

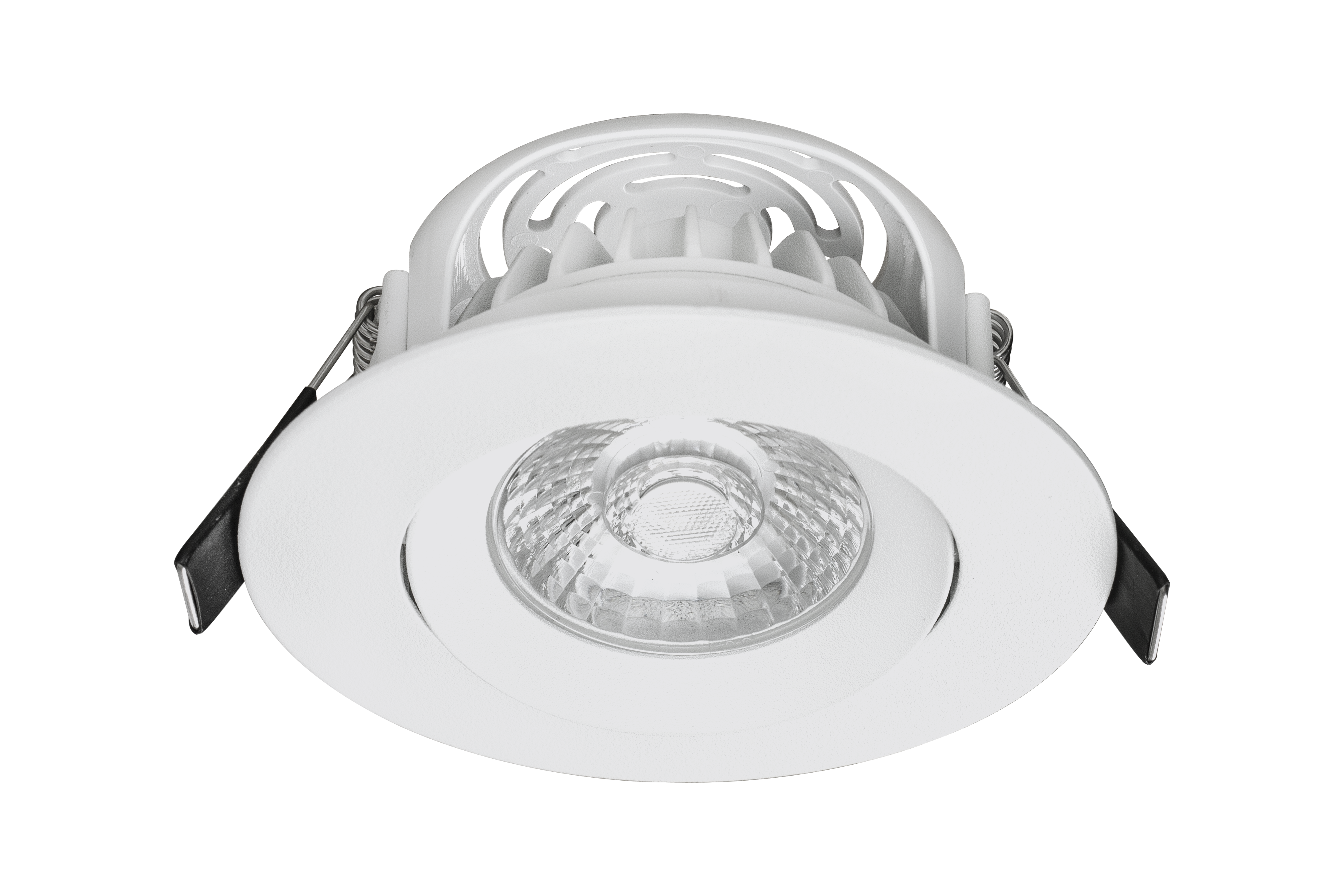

PITCH downlight

Clear

Dimensions

Dimensions

95 × 9,5 × 31 mm

95 × 9,5 × 31 mm
Cut out size

73-83mm
Recess Depth

31mm
Weight

300 g

300 g
Package Quantity

36

Specification

Material

Aluminium
Color

Black

White
Electrical Safety Class

Class II
IP-Grade

IP44
Electrical Connection

Plug/Terminal block
IK Rating

IK08
ISOsafe

Yes
EL Number

3210678

3210629
GTIN

7041661273436

7041661273429

Technical

Wattage LED

8W
Total Wattage

9W
Ground Current/Voltage

200mA 36V
Lamp Base

LED
Replaceable LED

No
Max Wattage

8W
Supplied Light Sources

Yes
Brightness

600 lm

620 lm
Light Efficiency Luminaire

70 lm/W

72 lm/W
Color Rendering

97
Color Temperature

2700K
SDCM

<2
Life Span

100000
Light Angle

37°
Dimmable

Yes
Dimmable Type

Trailing edge / Leading edge
Driver

external included
UGR Rating

UGR<17
