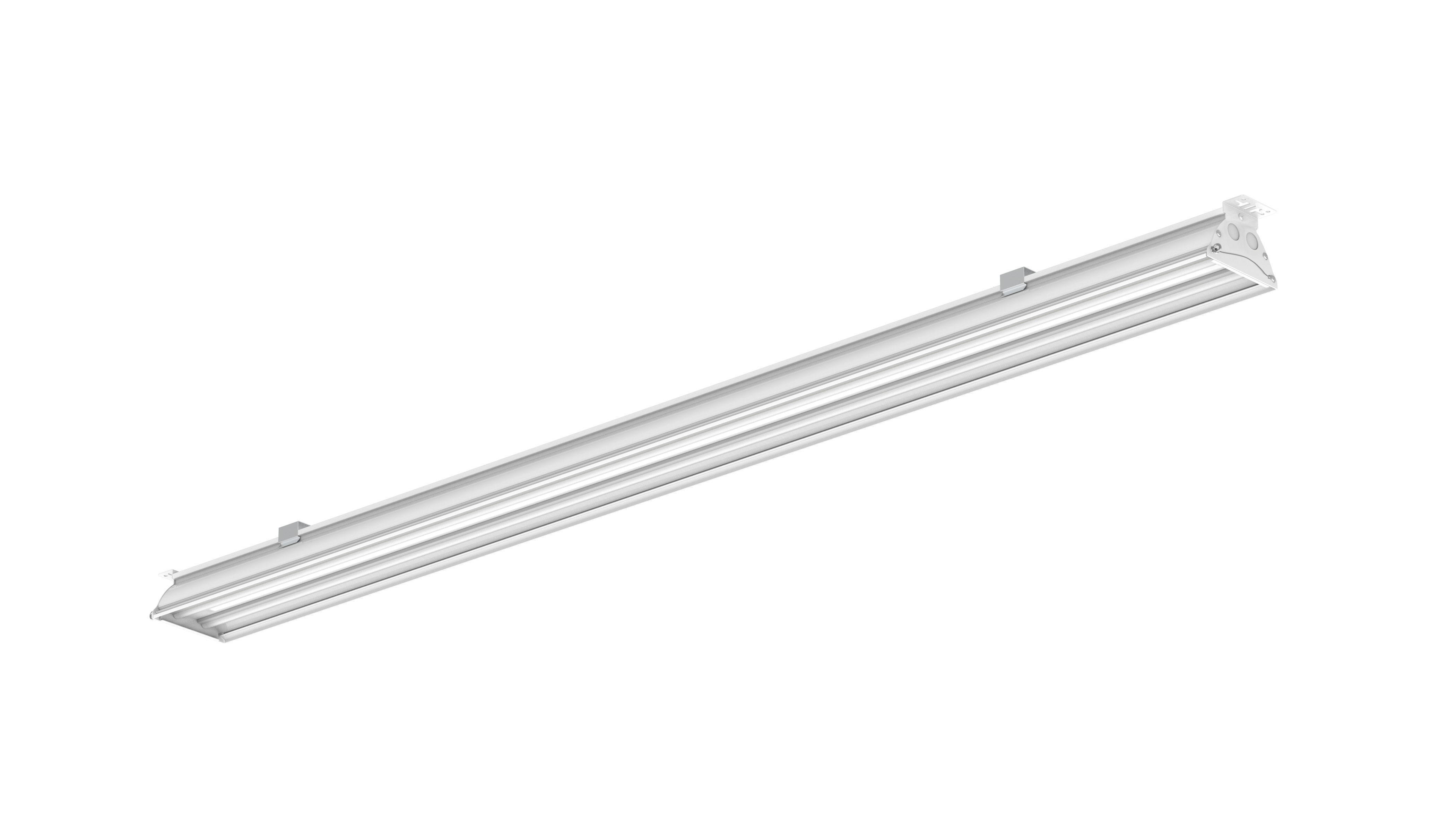

PULSE highbay 150/1500
PULSE highbay is an energy efficient and practical LED luminaire with many uses! The luminaire provides good light with wide beam angle and is very suitable for warehousing and industrial installations. It is possible to buy a grille for extra protection and lower glare (UGR<19). The luminaire is easy to install (direct/suspended) and comes with through-wiring and quick-release terminals at both ends. High performance (>160lm/W) and long lifetime (>125,000t)! The power can be adjusted in four steps directly on the driver. Available in two physical sizes and three wattages, as well as with DALI.
Dimensions
Dimensions | 1460 × 10,7 × 64,8 mm |
---|---|
Weight | 2500 g |
Specification
Material | Aluminium |
---|---|
Color | White |
Electrical Safety Class | Class I |
IP-Grade | IP23 |
Electrical Connection | terminal block |
IK Rating | IK08 |
Mounting Principle | fully assembled |
EL Number | 3308616 |
GTIN | 7041661275669 |
Technical
Wattage LED | 100-150W |
---|---|
Ground Current/Voltage | 230V |
Replaceable LED | No |
Supplied Light Sources | Yes |
Brightness | 16000-24000 lm |
Light Efficiency Luminaire | 160 lm/W |
Color Rendering | > 80 |
Color Temperature | 4000K |
SDCM | <3 |
Life Span | 125000 |
Light Angle | 90° |
Dimmable | No |
Driver | built-in |
UGR Rating | UGR<23 |
