71206Product Number: 71206-15 Product Number: 71206-70

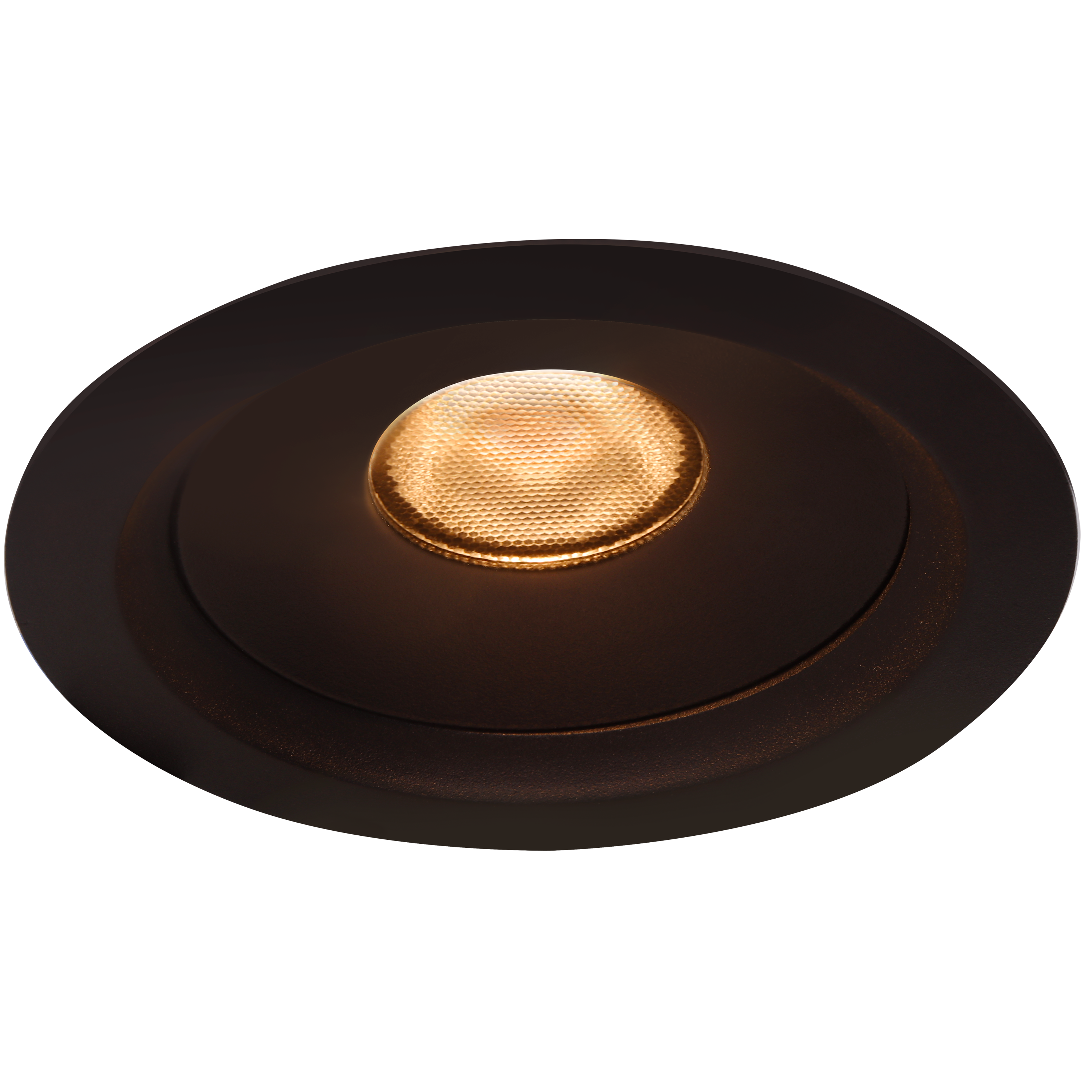

RA 360°

Dimensions

Dimensions

95 × 9,5 × 45 mm

95 × 9,5 × 45 mm
Cut out size

80-83mm
Recess Depth

44mm
Weight

340 g

340 g

Specification

Material

Aluminium
Color

Black

White
Electrical Safety Class

Class II
IP-Grade

IP44
Electrical Connection

Snabbkoppling till driver
IK Rating

IK06
ISOsafe

Yes
EL Number

3246844

3246843
GTIN

7041661275133

7041661275126

Technical

Wattage LED

9W
Total Wattage

10W
Ground Current/Voltage

220-240W

220-240V
Lamp Base

LED
Replaceable LED

No
Supplied Light Sources

Yes
Brightness

690 lm

700 lm
Light Efficiency Luminaire

70 lm/W

72 lm/W
Color Rendering

>95
Color Temperature

2700K
SDCM

<2
Life Span

100000
Light Angle

36°
Dimmable

Yes
Dimmable Type

Trailing edge / Leading edge
Driver

plug-in
UGR Rating

UGR<19
