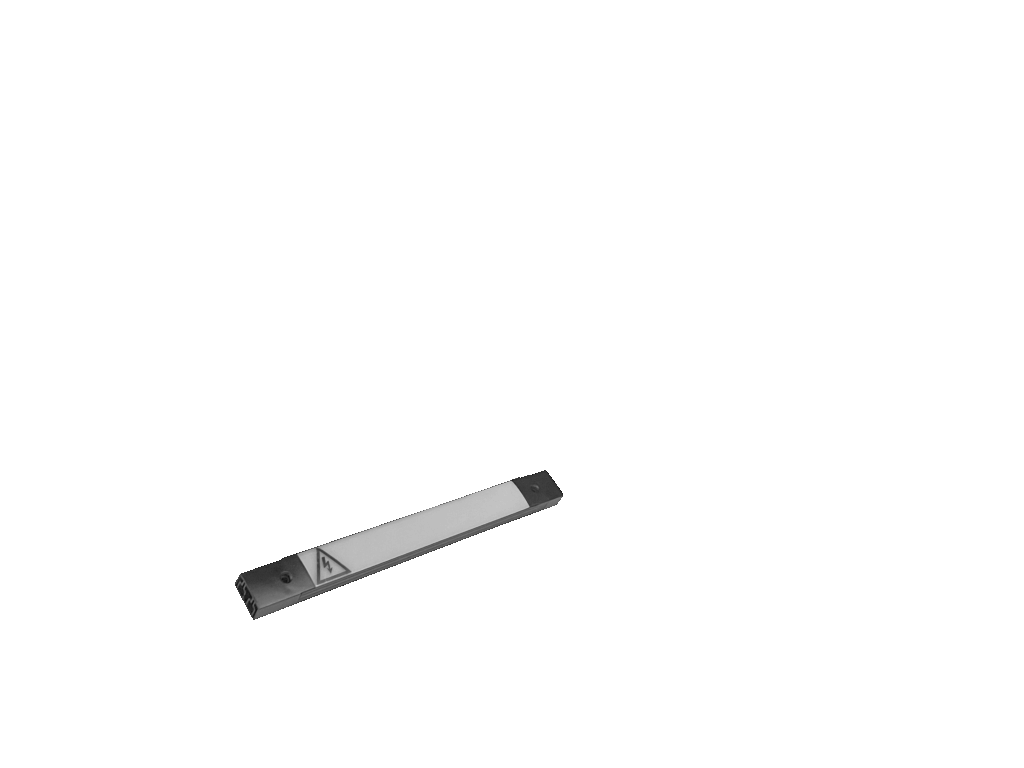

Scanled Pro
Dimensions
| Dimensions | 249 × 2,54 × 14 mm 249 × 2,54 × 14 mm 249 × 2,54 × 14 mm 548 × 2,54 × 14 mm 548 × 2,54 × 14 mm 548 × 2,54 × 14 mm 848 × 2,54 × 14 mm 848 × 2,54 × 14 mm 848 × 2,54 × 14 mm 249 × 2,54 × 14 mm 548 × 2,54 × 14 mm 848 × 2,54 × 14 mm |
|---|---|
| Weight | 85 g 85 g 85 g 175 g 175 g 175 g 263 g 263 g 263 g 85 g 175 g 263 g |
Specification
| Material | Aluminum/plastic |
|---|---|
| Color | Black White White Black White White Black White White Black Black Black |
| Electrical Safety Class | Class II |
| IP-Grade | IP20 |
| Electrical Connection | Adapter för skena |
| GTIN | 7041661276703 7041661276697 7041661276666 7041661276727 7041661276710 7041661276673 7041661276741 7041661276734 7041661276680 7041661283336 7041661283343 7041661283350 |
Technical
| Total Wattage | 4W 4W 4W 9W 9W 9W 12W 12W 12W 4W 9W 12W |
|---|---|
| Ground Current/Voltage | 220-240V 220-240V AC220-240V 220-240V 220-240V AC220-240V 220-240V 220-240V AC220-240V 220-240V 220-240 220-240V |
| Replaceable LED | No |
| Supplied Light Sources | Yes |
| Brightness | 210 lm 260 lm 230 lm 550 lm 660 lm 600 lm 730 lm 880 lm 800 lm 210lm 550lm 730lm |
| Light Efficiency Luminaire | 52 lm/W 65 lm/W 57 lm/W 61 lm/W 74 lm/W 67 lm/W 61 lm/W 74 lm/W 67 lm/W 52lm/W 62lm/W 61lm/W |
| Color Rendering | >90 >90 CRI>90 >90 >90 CRI>90 >90 >90 CRI>90 CRI>90 CRI>90 CRI>90 |
| Color Temperature | 3000K 3000K 2700K 3000K 3000K 2700K 3000K 3000K 2700K 2700K 2700K 2700K |
| SDCM | <3 <3 SDCM<4 <3 <3 SDCM<4 <3 <3 SDCM<4 SDCM<4 SDCM<4 SDCM<4 |
| Life Span | 50000 |
| Light Angle | 113° |
| Dimmable | Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes No |
| Dimmable Type | Trailing edge / Leading edge |
| Driver | built-in |
| UGR Rating | UGR<29 |
