71116Product Number: 71116-70-15 Product Number: 71117-70-29

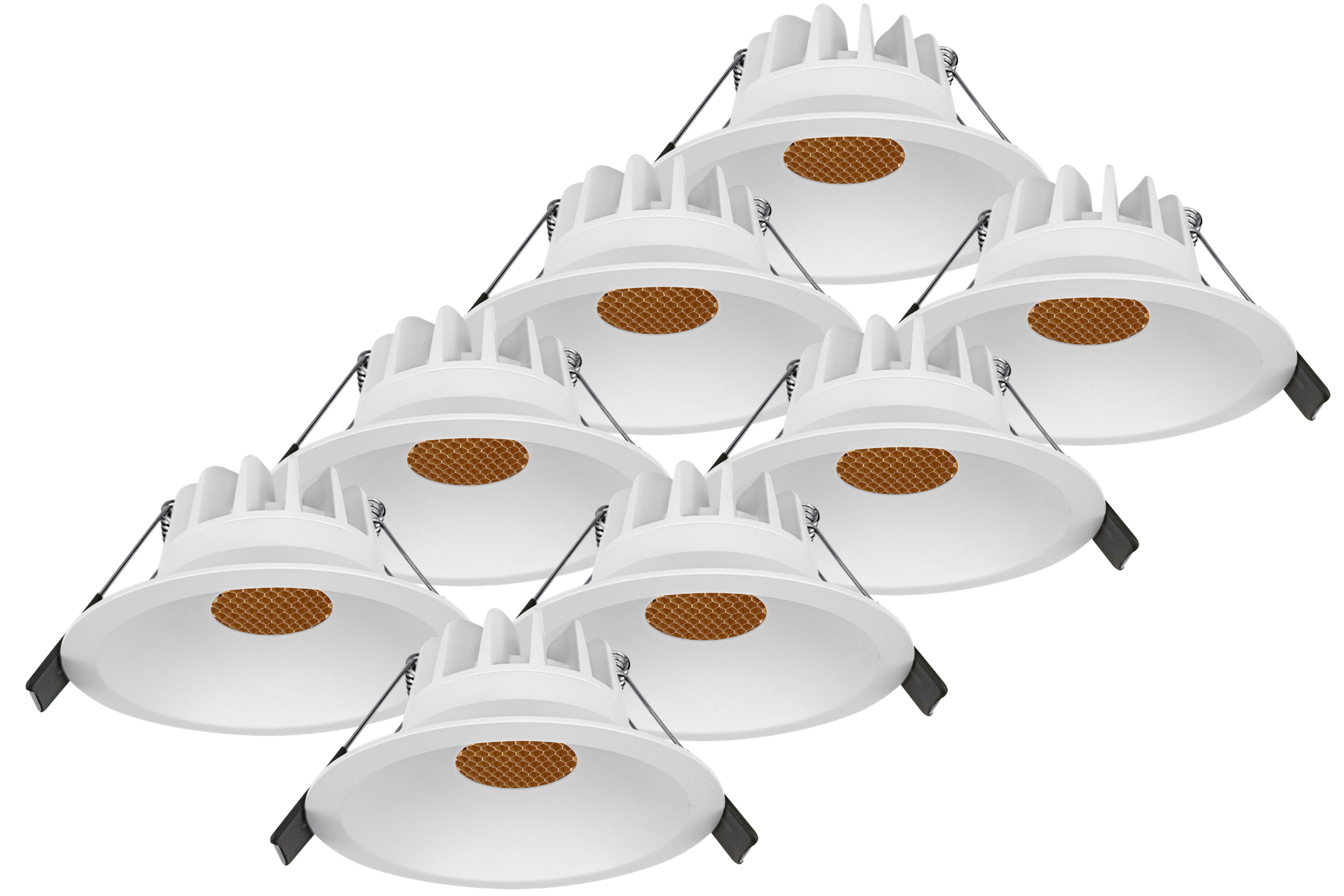

STYX downlight 8-pack

Dimensions

Dimensions

90 × 9 × 49 mm

90 × 9 × 49 mm
Cut out size

80-83mm
Recess Depth

48mm
Weight

234 g

234 g

Specification

Material

Aluminum/plastic
Color

White / Black

White / Copper
Electrical Safety Class

Class II
IP-Grade

IP44
EL Number

3210655

3210659
GTIN

7041661272972

7041661272989

Technical

Ground Current/Voltage

200mA Actec DC20-40V AC220-240V
Replaceable LED

No
Max Wattage

7,5W

7,5W
Supplied Light Sources

Yes
Brightness

595 lm
Light Efficiency Luminaire

85lm/W
Color Rendering

>95
Color Temperature

2700K
SDCM

<3
Life Span

100000
Light Angle

35°
Dimmable

Yes
Dimmable Type

Trailing edge / Leading edge
Driver

external included
