71110Product Number: 71110-70-70 Product Number: 71111-70-15 Product Number: 71112-70-29 Product Number: 71113-15-15 Product Number: 71114-15-29

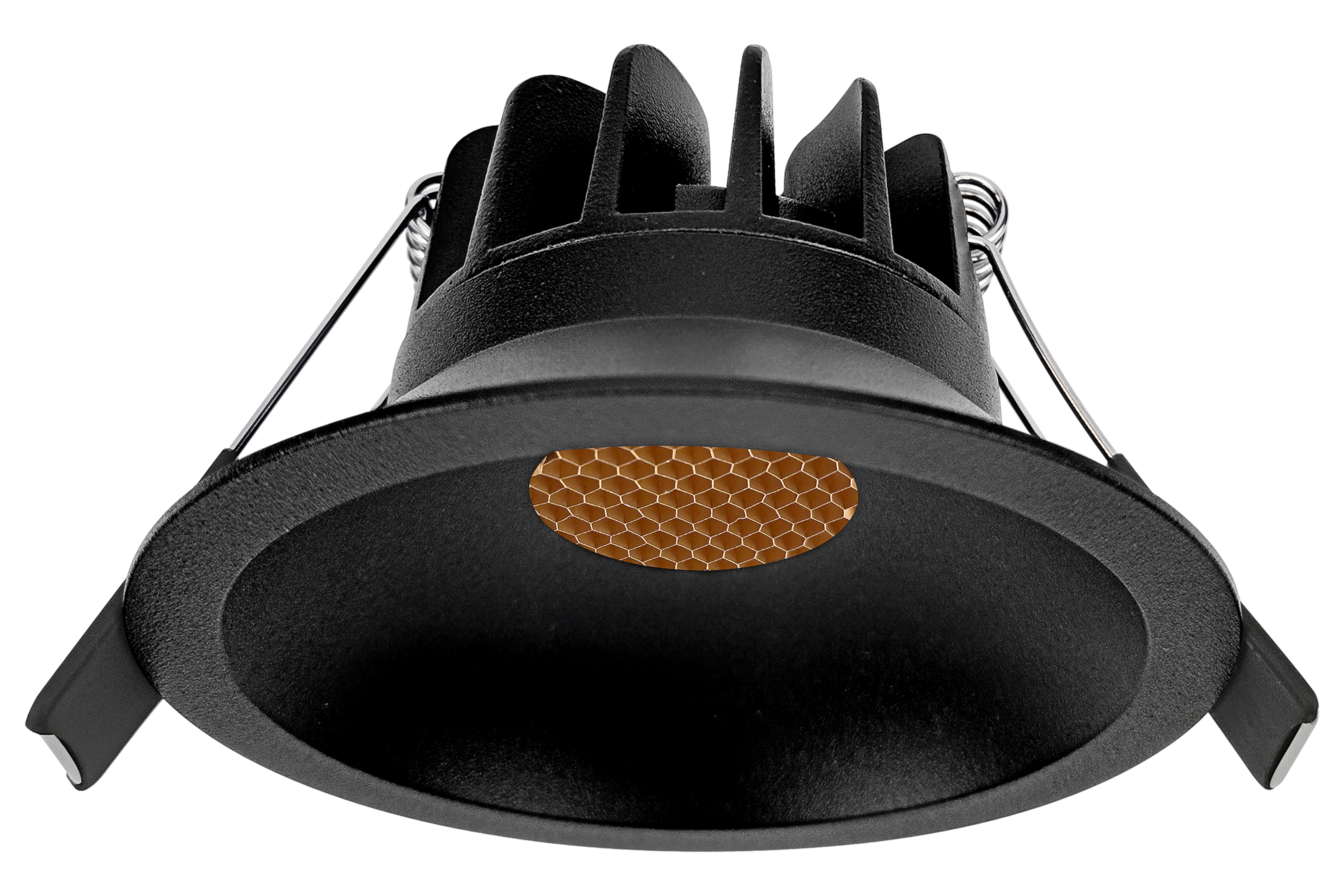

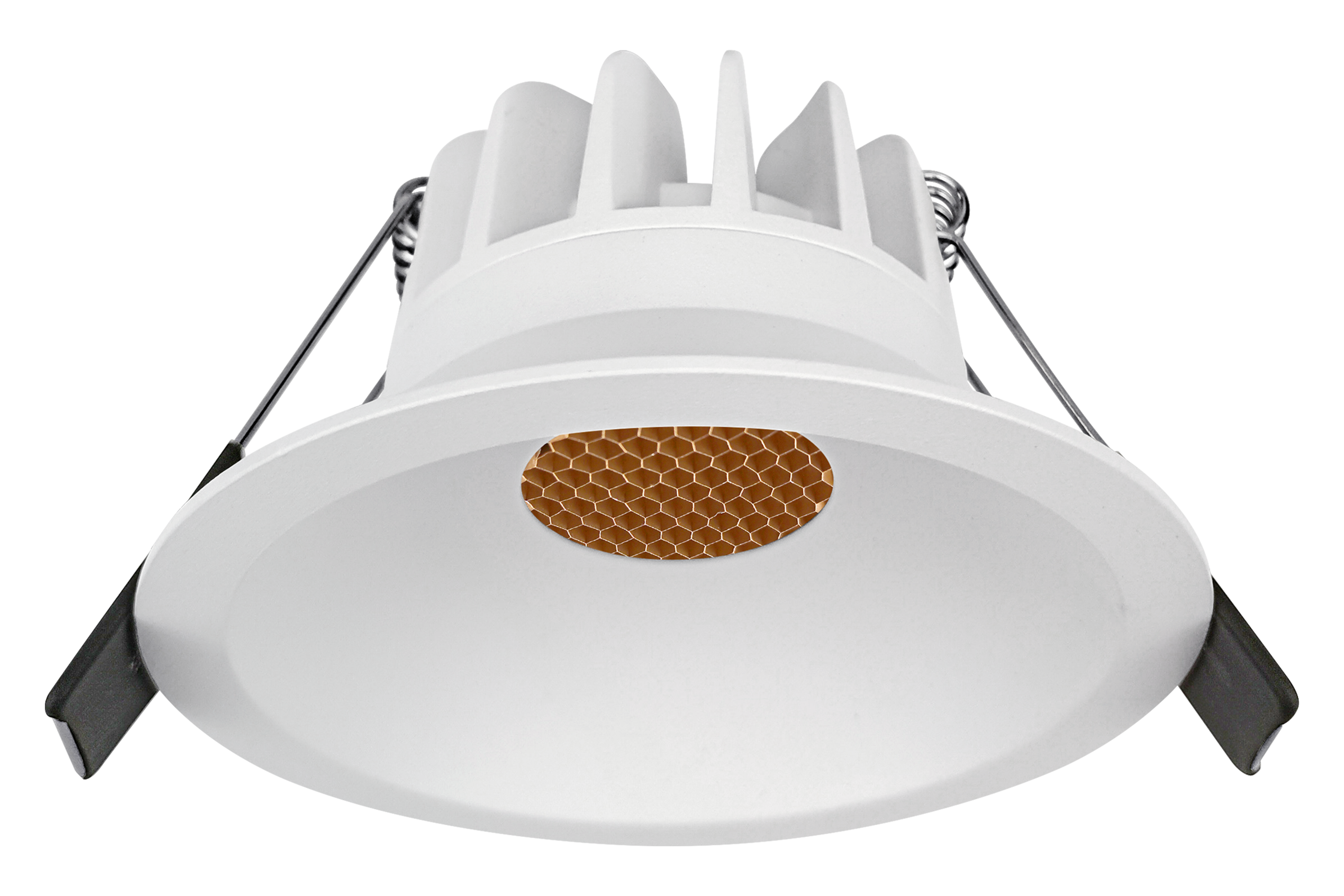

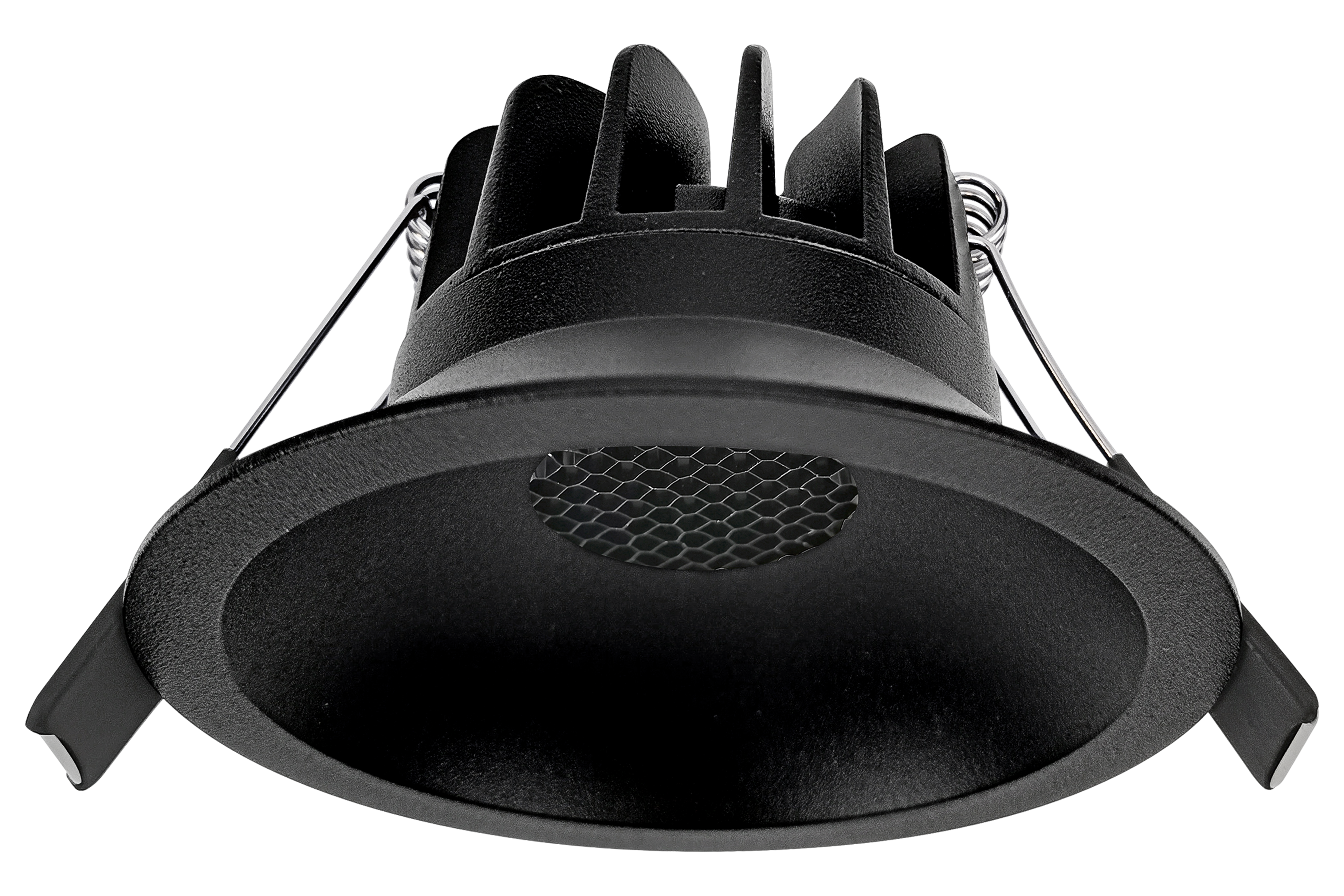

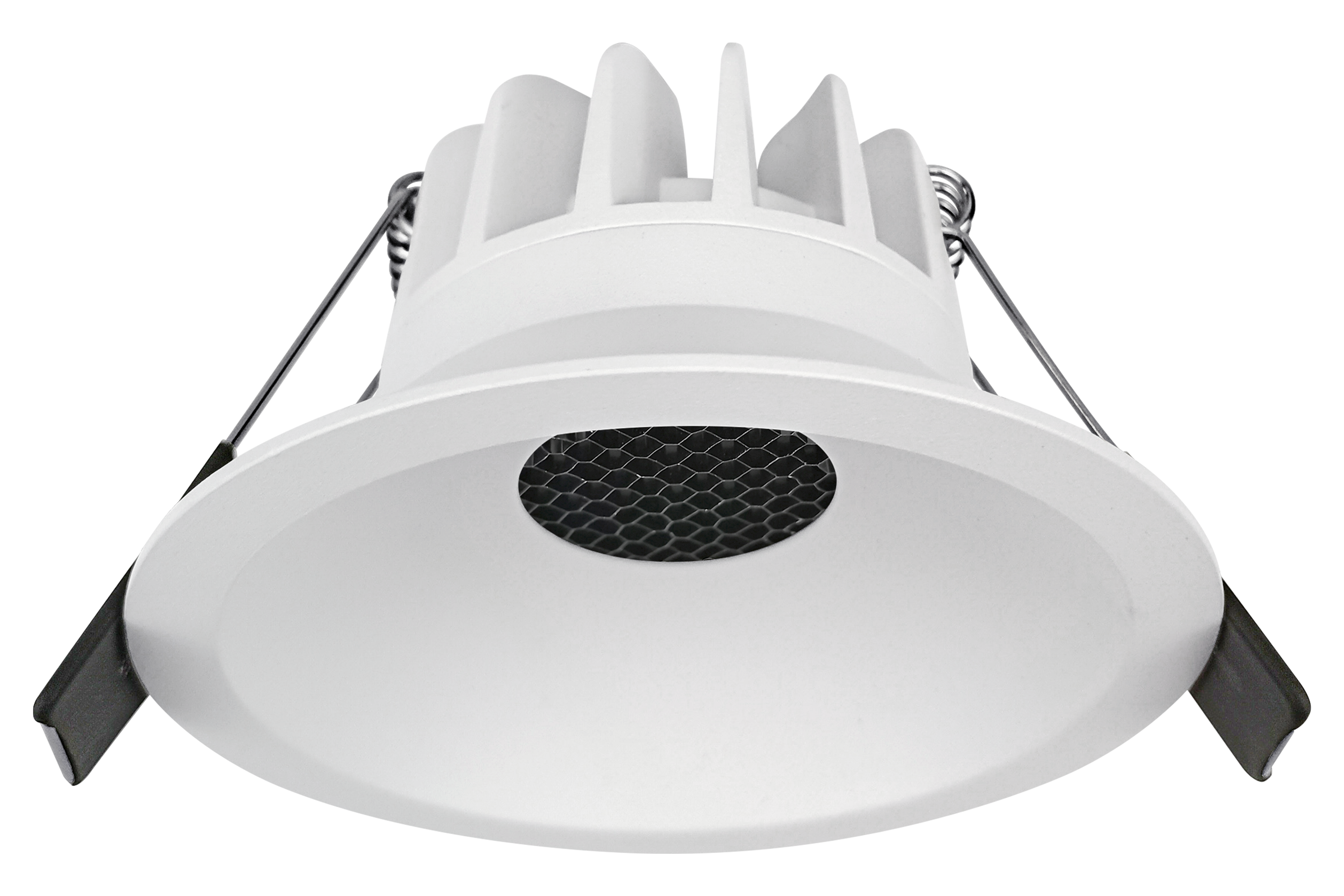

STYX downlight

Dimensions

Dimensions

90 × 9 × 49 mm

90 × 9 × 49 mm

90 × 9 × 49 mm

90 × 9 × 49 mm

90 × 9 × 49 mm
Cut out size

80-83mm
Recess Depth

48mm
Weight

234 g

234 g

234 g

234 g

234 g

Specification

Material

Aluminum/plastic
Color

White

White / Black

White / Copper

Black / Black

Black / Copper
Electrical Safety Class

Class II
IP-Grade

IP44
EL Number

3210637

3210638

3210639

3210640

3210641
GTIN

7041661272927

7041661272934

7041661272958

7041661273511

7041661272941

Technical

Wattage LED

7,5W
Ground Current/Voltage

200mA Actec DC20-40V AC220-240V
Replaceable LED

No
Max Wattage

7,5W

7,5W

Max 60W

7,5W

7,5W
Supplied Light Sources

Yes
Brightness

595 lm

595 lm

595 lm

545 lm

545 lm
Color Rendering

>95
Color Temperature

2700K
SDCM

<3
Life Span

100000
Light Angle

35°
Dimmable

Yes
Dimmable Type

Trailing edge / Leading edge
Driver

external included
