71252Product Number: 71252-15 Product Number: 71252-70

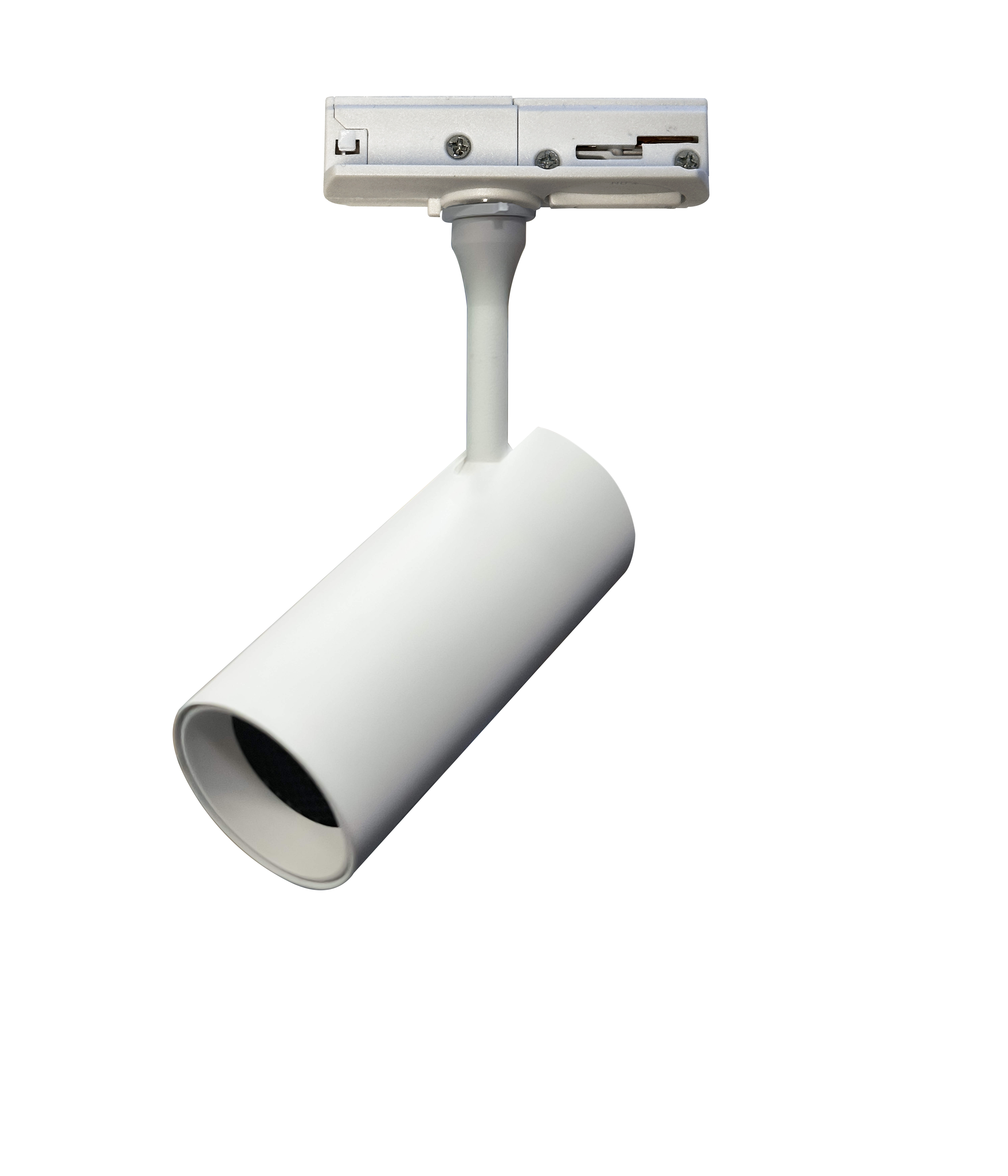

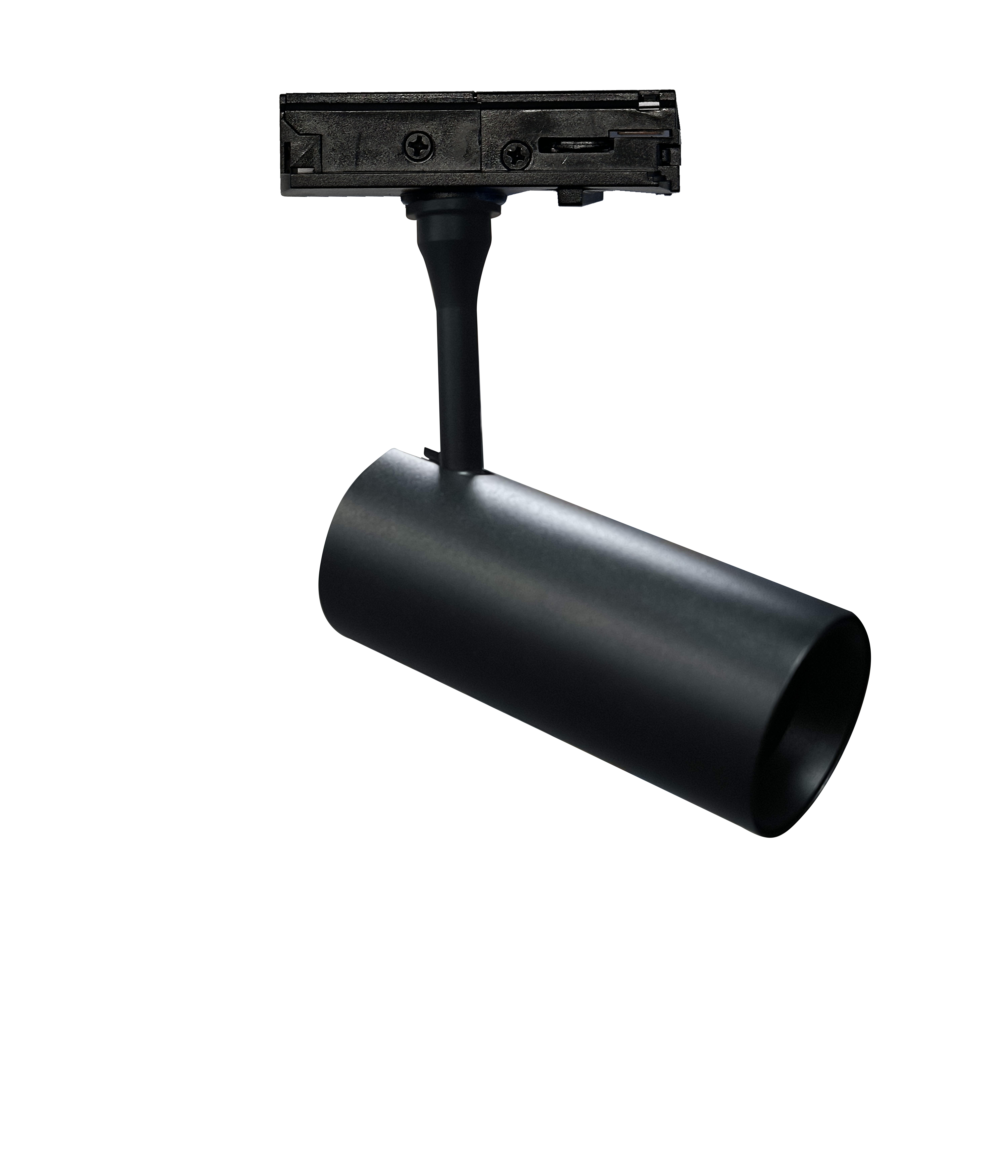

TRACKLINE SPARROW 8/45

Color

Black

White

Clear

Dimensions

Dimensions

45 × 4,5 × 104 mm

45 × 4,5 × 104 mm

Weight

192 g

192 g

Specification

Material	Aluminum/plastic
Color	Black White
Electrical Safety Class	Class I
IP-Grade	IP20
Electrical Connection	Adapter för skena
IK Rating	IK02
Mounting Principle	fully assembled
EL Number	3246854 3246853
GTIN	7041661276437 7041661276420

Technical

Wattage LED	8W
Ground Current/Voltage	220-240V
Replaceable LED	No
Supplied Light Sources	Yes
Brightness	560 lm 600 lm
Light Efficiency Luminaire	68 lm/W 72 lm/W
Color Rendering	>90
Color Temperature	2700K
SDCM	<3
Life Span	50000
Light Angle	32°
Dimmable	Yes
Dimmable Type	Trailing edge / Leading edge
Driver	built-in
UGR Rating	UGR<11
