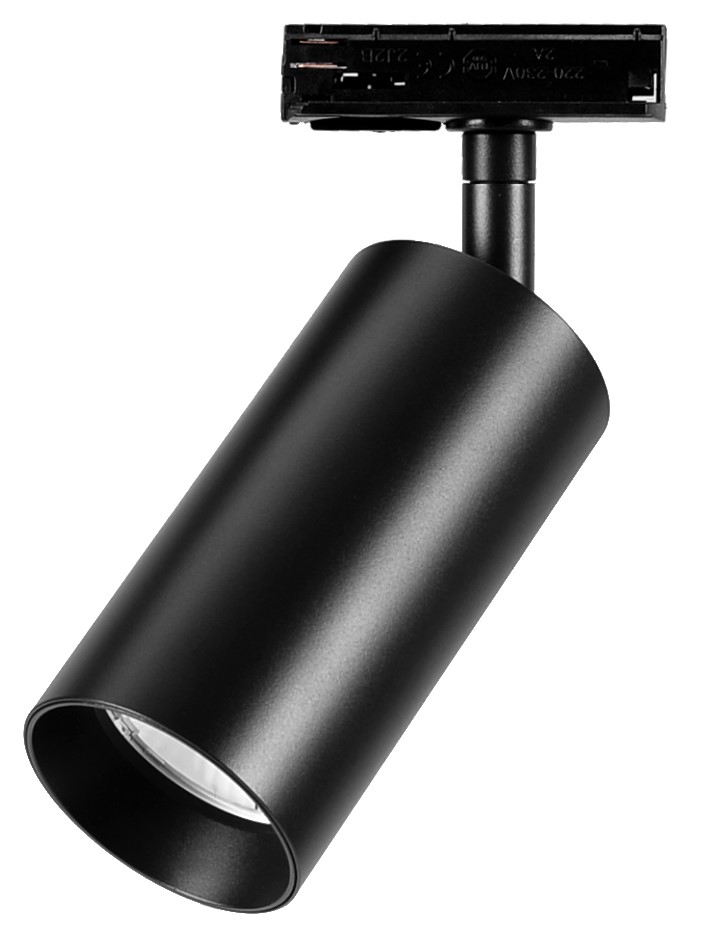

Trackline SWAN 14/65

Dimensions

Dimensions	65 × 6,5 × 130 mm 65 × 6,5 × 130 mm
Weight	432 g 432 g

Specification

Material	Aluminium
Color	Black White
Electrical Safety Class	Class I
IP-Grade	IP20
Electrical Connection	Adapter för skena
IK Rating	IK05
Mounting Principle	fully assembled
GTIN	7041661276512 7041661276529

Technical

Wattage LED	14W
Ground Current/Voltage	220-240V
Replaceable LED	No
Supplied Light Sources	Yes
Brightness	1720lm 1800lm
Light Efficiency Luminaire	131lm/W 136lm/W
Color Rendering	>90
Color Temperature	3000K
SDCM	<3
Life Span	80000
Light Angle	38°
Dimmable	Yes
Dimmable Type	Trailing edge / Leading edge
Driver	built-in
UGR Rating	UGR<19
