71249Product Number: 71249-15 Product Number: 71249-70

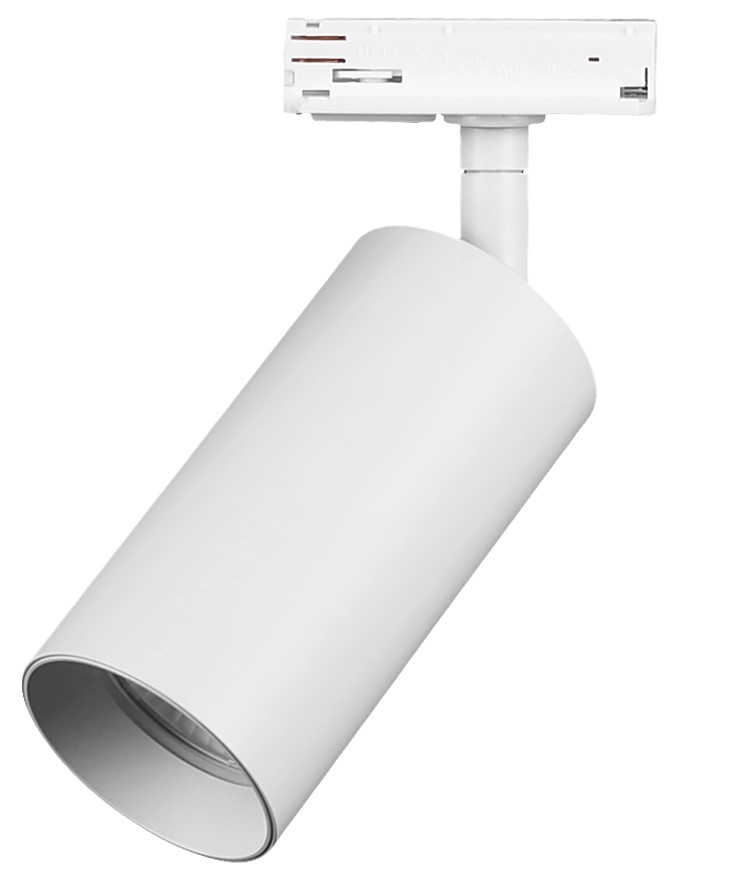

Trackline SWAN 14/65

Dimensions

Dimensions

65 × 6,5 × 130 mm

65 × 6,5 × 130 mm
Weight

432 g

432 g

Specification

Material

Aluminium
Color

Black

White
Electrical Safety Class

Class I
IP-Grade

IP20
Electrical Connection

Adapter för skena
IK Rating

IK05
Mounting Principle

fully assembled
EL Number

3246866

3246865
GTIN

7041661276512

7041661276529

Technical

Wattage LED

14W
Ground Current/Voltage

220-240V
Replaceable LED

No
Supplied Light Sources

Yes
Brightness

1720lm

1800lm
Light Efficiency Luminaire

131lm/W

136lm/W
Color Rendering

>90
Color Temperature

3000K
SDCM

<3
Life Span

80000
Light Angle

38°
Dimmable

Yes
Dimmable Type

Trailing edge / Leading edge
Driver

built-in
UGR Rating

UGR<19
