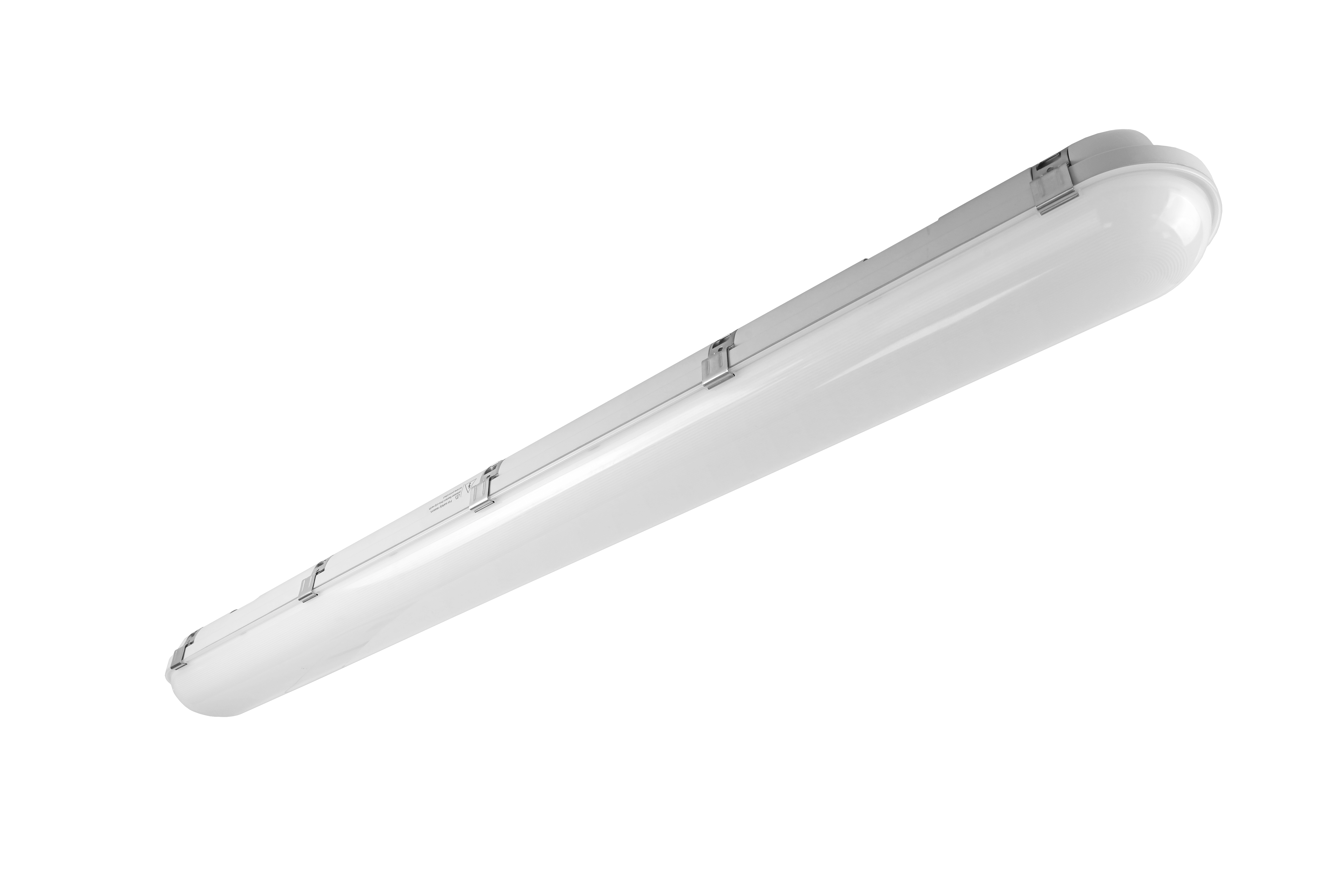

GARAGE 40/1200 DALI
Well-designed and easy-to-install LED luminaire produced in polycarbonate with stainless steel mounting clamps. High impact resistance (IK10) and high degree of density (IP65). Cable entry at both ends for visible cables and in the rear, middle and edges of the luminaire for concealed wiring. Especially suitable for installation in car parks, garages, storage rooms and warehouses. Can be mounted directly in the ceiling/wall/cable trunkings or suspended in wire. Available in 1200mm, 1500mm and 1800mm; with DALI dimming in both 1200mm and 1500mm.
1200mm, DALI, 40W, 125lm/W, 5000lm, IP65, IK10, CRI>80, 4000K, 50.000t
Dimensions
| Dimensions | 1200 × 12,5 × 88 mm |
|---|---|
| Weight | 2150 g |
Specification
| Material | Plastic |
|---|---|
| Color | Grey |
| Electrical Safety Class | Class I |
| IP-Grade | IP65 |
| Electrical Connection | fixed mounting |
| IK Rating | IK10 |
| Mounting Principle | fully assembled |
| EL Number | 3303687 |
| GTIN | 7041661273160 |
Technical
| Wattage LED | 40W |
|---|---|
| Ground Current/Voltage | AC200-240V |
| Lamp Base | LED |
| Replaceable LED | No |
| Max Wattage | 40W |
| Supplied Light Sources | Yes |
| Brightness | 5000 lm |
| Light Efficiency Luminaire | 125 lm/W |
| Color Rendering | >80 |
| Color Temperature | 4000K |
| SDCM | <6 |
| Life Span | 184000 |
| Light Angle | 120° |
| Dimmable | Yes |
| Driver | built-in |
