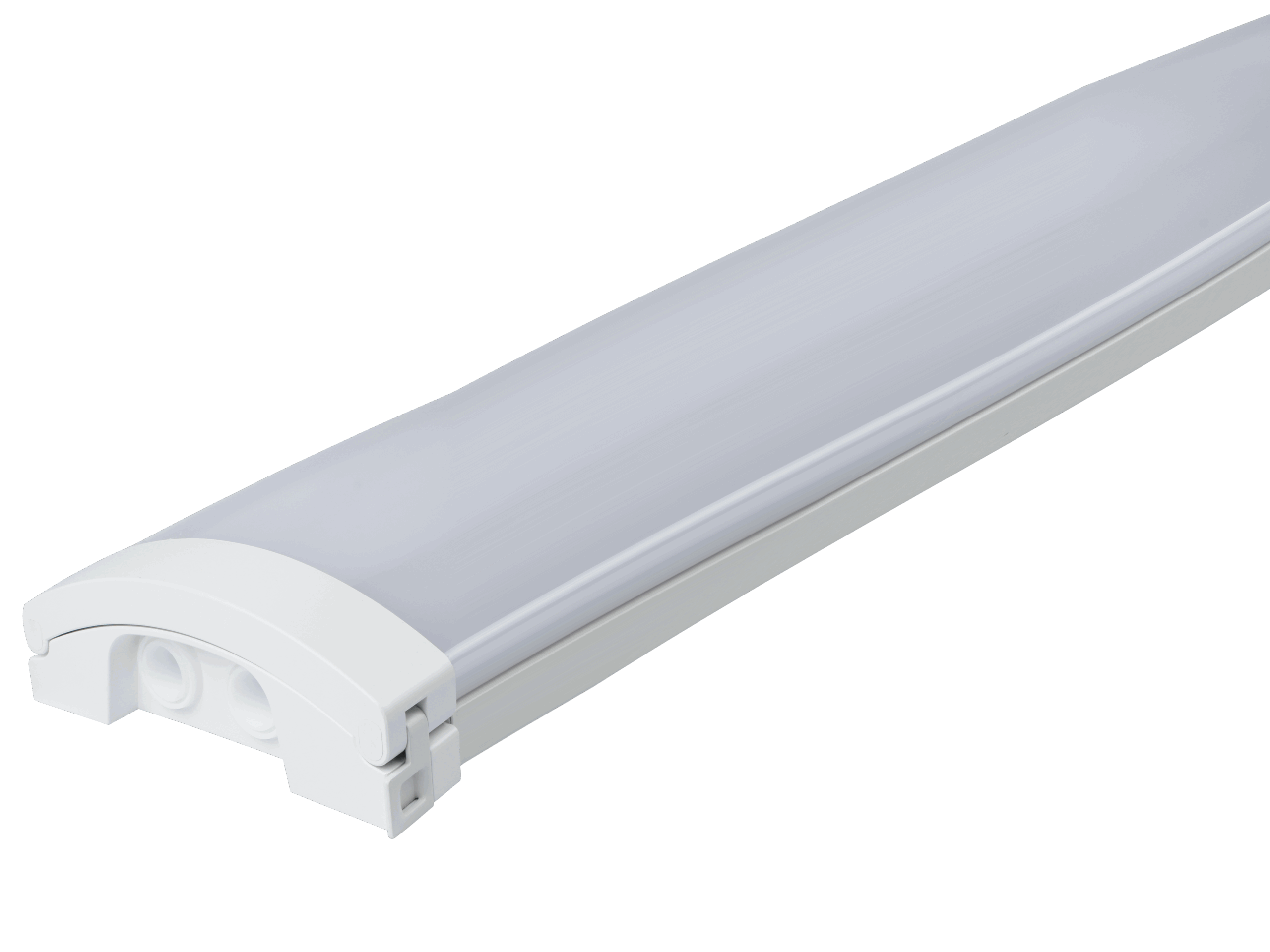

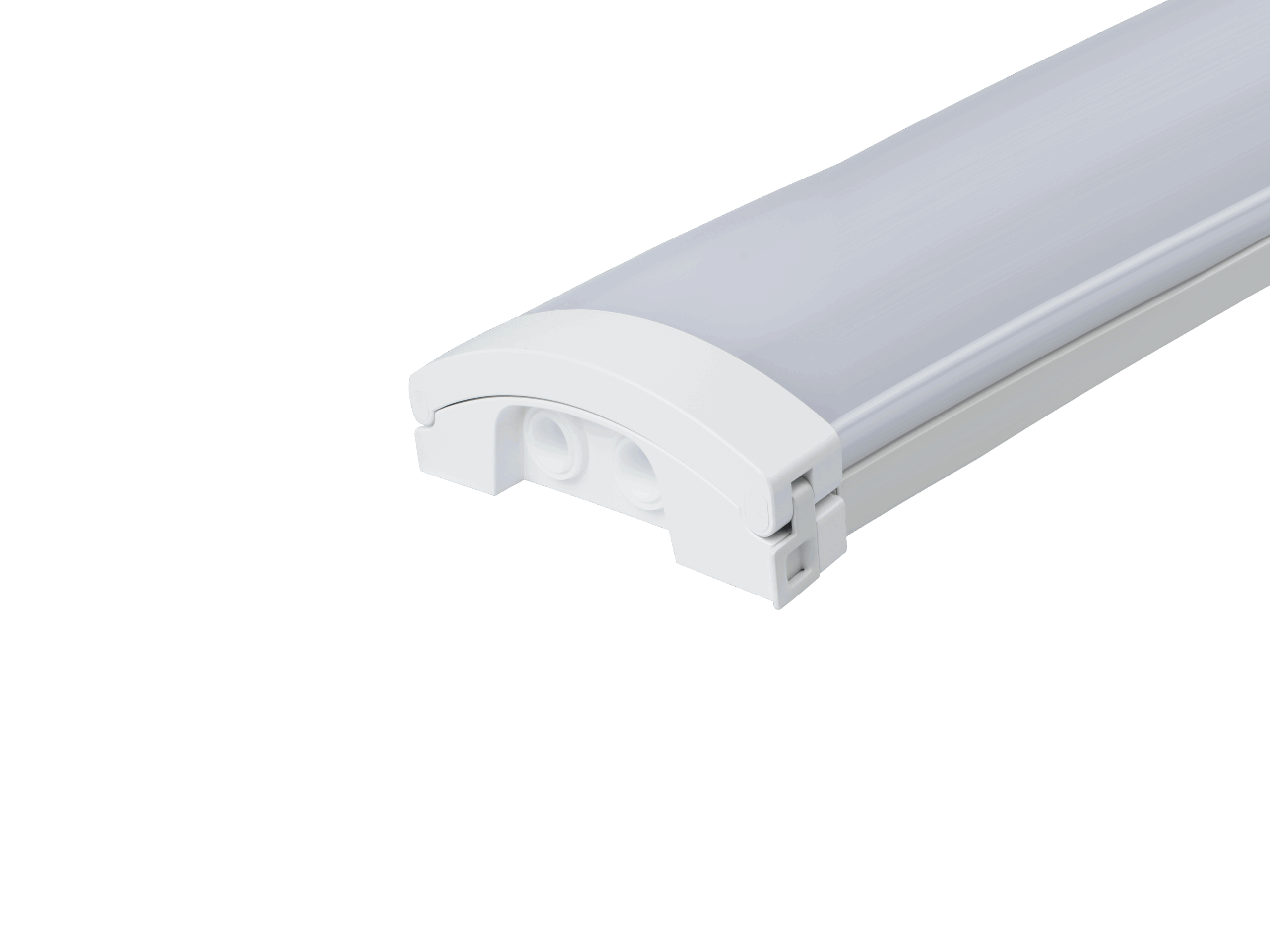

Grid Batten
Dimensions
| Dimensions | 1220 × 15,5 × 55 mm 620 × 15,5 × 55 mm 1510 × 15,5 × 55 mm |
|---|---|
| Weight | 3050 g N/A N/A |
Specification
| Material | Metal/plastic Stål |
|---|---|
| Color | White |
| Electrical Safety Class | Class I |
| IP-Grade | IP44 |
| Electrical Connection | terminal block fixed mounting |
| IK Rating | IK07 |
| GTIN | 7041661282322 7041661282315 7041661283503 |
Technical
| Wattage LED | 19W |
|---|---|
| Total Wattage | 22-40W |
| Ground Current/Voltage | AC220-240V |
| Replaceable LED | Yes |
| Supplied Light Sources | Yes |
| Brightness | 3080-5600lm |
| Light Efficiency Luminaire | 140lm/W |
| Color Rendering | >80 |
| Color Temperature | 2CCT (3000K/4000K) 3000K/4000K |
| SDCM | SDCM<3 <3 |
| Life Span | 200000 |
| Light Angle | 110° 110 |
| Dimmable | No |
| Driver | built-in |
| UGR Rating | UGR<22 |
