71042Product Number: 71042-15 Product Number: 71042-70

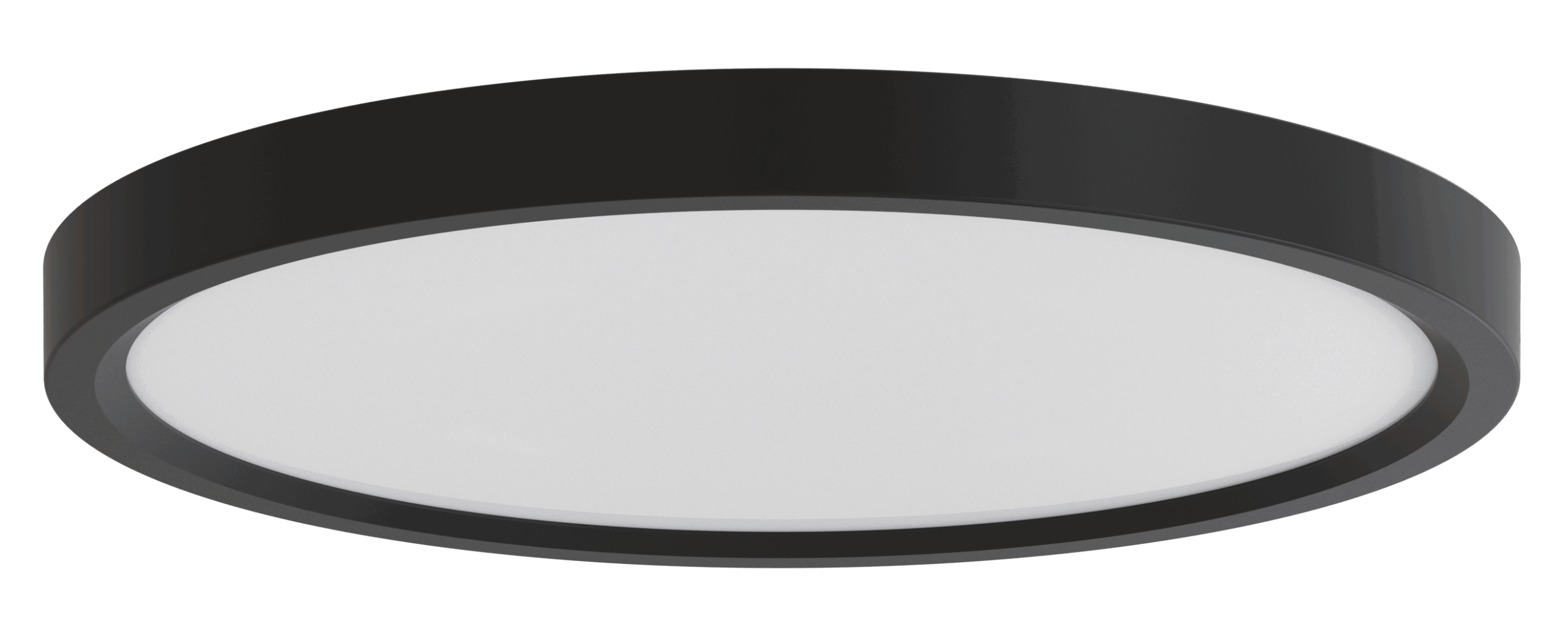

RING 15/300 evo

Dimensions

Dimensions

293 × 29,3 × 24 mm

293 × 29,3 × 24 mm
Weight

733 g

733 g

Specification

Material

Plastic
Color

Black

White
Electrical Safety Class

Class II
IP-Grade

IP20
Electrical Connection

Kabel
IK Rating

IK05
EL Number

3030000

3030001
GTIN

7041661283176

7041661283183

Technical

Wattage LED

12,92W

12,92W
Total Wattage

14W
Ground Current/Voltage

220-240V
Replaceable LED

No
Supplied Light Sources

Yes
Brightness

1425lm

1530lm
Light Efficiency Luminaire

100lm/W

110lm/W
Color Rendering

>90
Color Temperature

2700/3000/4000K
SDCM

4
Life Span

165000
Light Angle

110°
Dimmable

Yes
Dimmable Type

Trailing edge / Leading edge
Driver

built-in
UGR Rating

UGR<25
