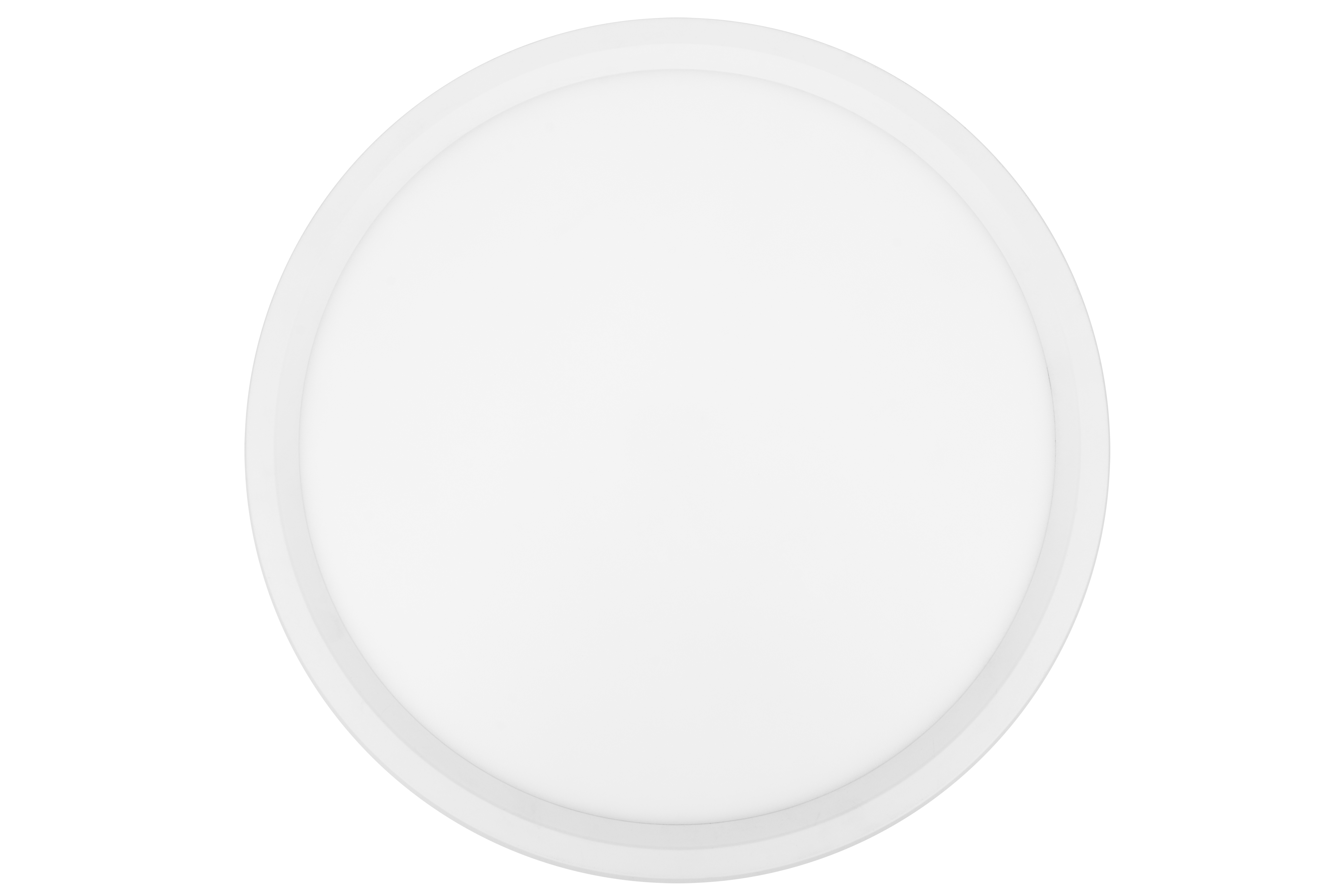

RING 20/400 DALI
Very low-profile and stylish DALI ceiling with high light output. Included in the box is a bracket for direct ceiling/wall mounting and a distance bracket for installation using open cabling. The lamp and brackets are made especially with the electrician in mind; which provides easy and problem-free assembly. Via a DALI system or a stand-alone DALI dimmer, the color temperature can be changed continuously from 2700K to 6500K. This means that this ceiling fits your installation perfectly.
Dimensions
Dimensions | 397 × 39,7 × 24 mm |
---|---|
Weight | 1340 g |
Package Quantity | 5 |
Specification
Material | Plastic |
---|---|
Color | White |
Electrical Safety Class | Class II |
IP-Grade | IP20 |
Electrical Connection | fixed mounting |
IK Rating | IK05 |
Mounting Principle | fully assembled |
EL Number | 3003337 |
GTIN | 7041661273764 |
Technical
Wattage LED | 18W |
---|---|
Total Wattage | 20W |
Ground Current/Voltage | 220-240V |
Lamp Base | LED |
Replaceable LED | No |
Max Wattage | 20W |
Supplied Light Sources | Yes |
Wattage Supplied Light Sources | 20W |
Brightness | 1800lm |
Light Efficiency Luminaire | 90lm/W |
Color Rendering | >80 |
Color Temperature | 2700-6500K |
SDCM | <4 |
Life Span | 50000 |
Light Angle | 110 |
Dimmable | Yes |
Dimmable Type | DALI |
Driver | built-in |
