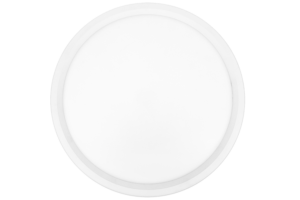

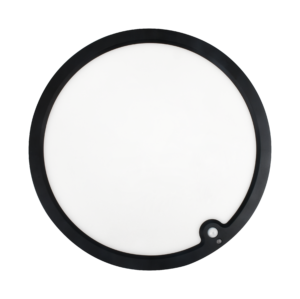

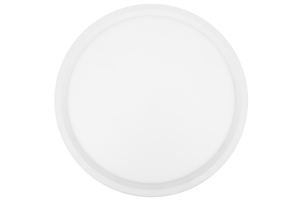

RING 15/300 PIR, white
Low-rise and stylish plafond with high light output and PIR sensor. Included in the box is a bracket for direct ceiling/wall mounting and a distance bracket for installation using open cabling. The lamp and brackets are made especially with the electrician in mind; which provides easy and problem-free assembly. On the back of the lamp there is a switch where you can choose the color temperature between 2700K, 3000K and 4000K, as well as a DIP switch to adjust the presence sensor. RING 15/300 PIR can act as Master and control several RING plafonds (Slave); up to 300W.
Dimensions
| Dimensions | 293 × 29,3 × 24 mm |
|---|---|
| Weight | 780 g |
Specification
| Material | Plastic |
|---|---|
| Color | White |
| Electrical Safety Class | Class II |
| IP-Grade | IP20 |
| Electrical Connection | tråd |
| IK Rating | IK05 |
| Mounting Principle | easy assembled |
| EL Number | 3003342 |
| GTIN | 7041661276314 |
Technical
| Wattage LED | 12,5W |
|---|---|
| Total Wattage | 15W |
| Replaceable LED | No |
| Supplied Light Sources | Yes |
| Brightness | 1350 lm |
| Light Efficiency Luminaire | 90 lm/W |
| Color Rendering | 80 |
| Color Temperature | 2700K/3000K/4000K |
| SDCM | <4 |
| Life Span | 50000 |
| Light Angle | 110° |
| Dimmable | No |
| Driver | built-in |
| UGR Rating | UGR<30 |
