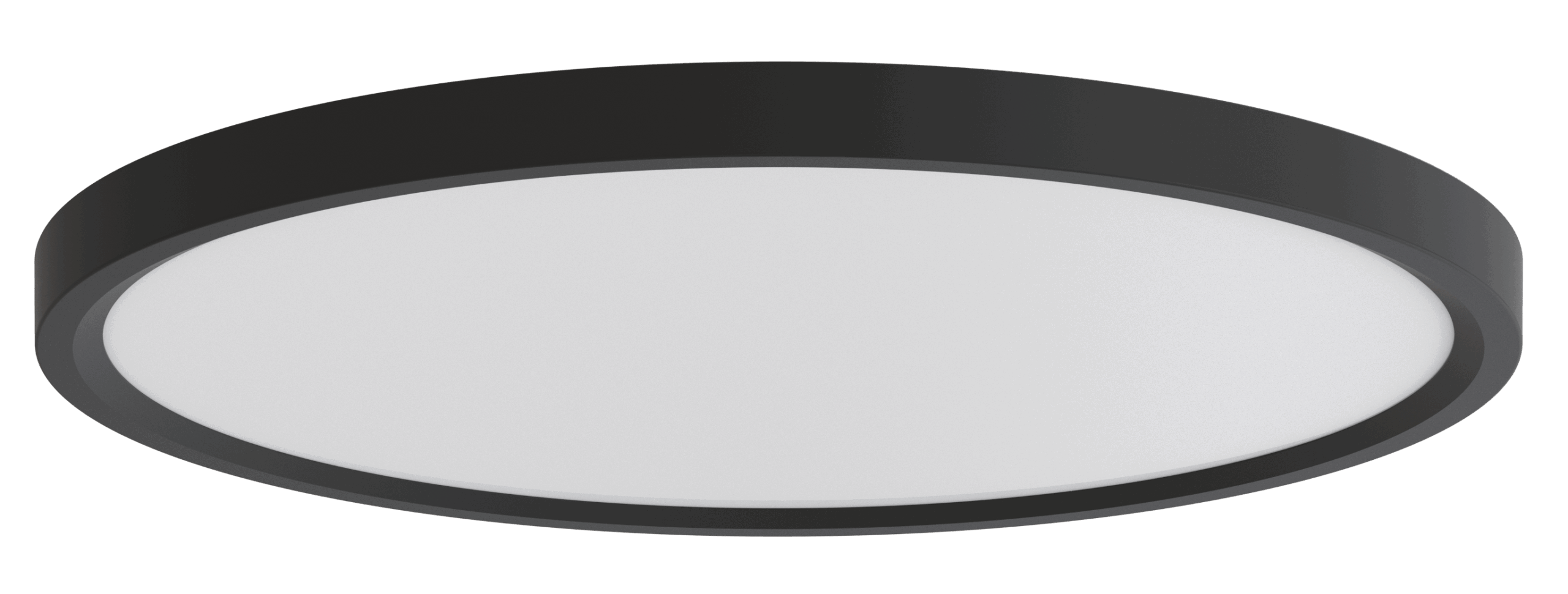

RING 20/400 evo

Dimensions

Dimensions	397 × 39,7 × 24 mm 397 × 39,7 × 24 mm
Weight	1255 g 1255 g

Specification

Material	Plastic
Color	Black White
Electrical Safety Class	Class II
IP-Grade	IP20
Electrical Connection	cable
IK Rating	IK05
GTIN	7041661283213 7041661283220

Technical

Wattage LED	17W
Total Wattage	19W
Ground Current/Voltage	220-240V
Replaceable LED	No
Supplied Light Sources	Yes
Brightness	1900lm 2040lm
Light Efficiency Luminaire	100lm/W 110lm/W
Color Rendering	<90
Color Temperature	2700/3000/4000K
SDCM	4
Life Span	165000
Light Angle	110°
Dimmable	Yes
Dimmable Type	Trailing edge / Leading edge
Driver	built-in
UGR Rating	UGR<22
