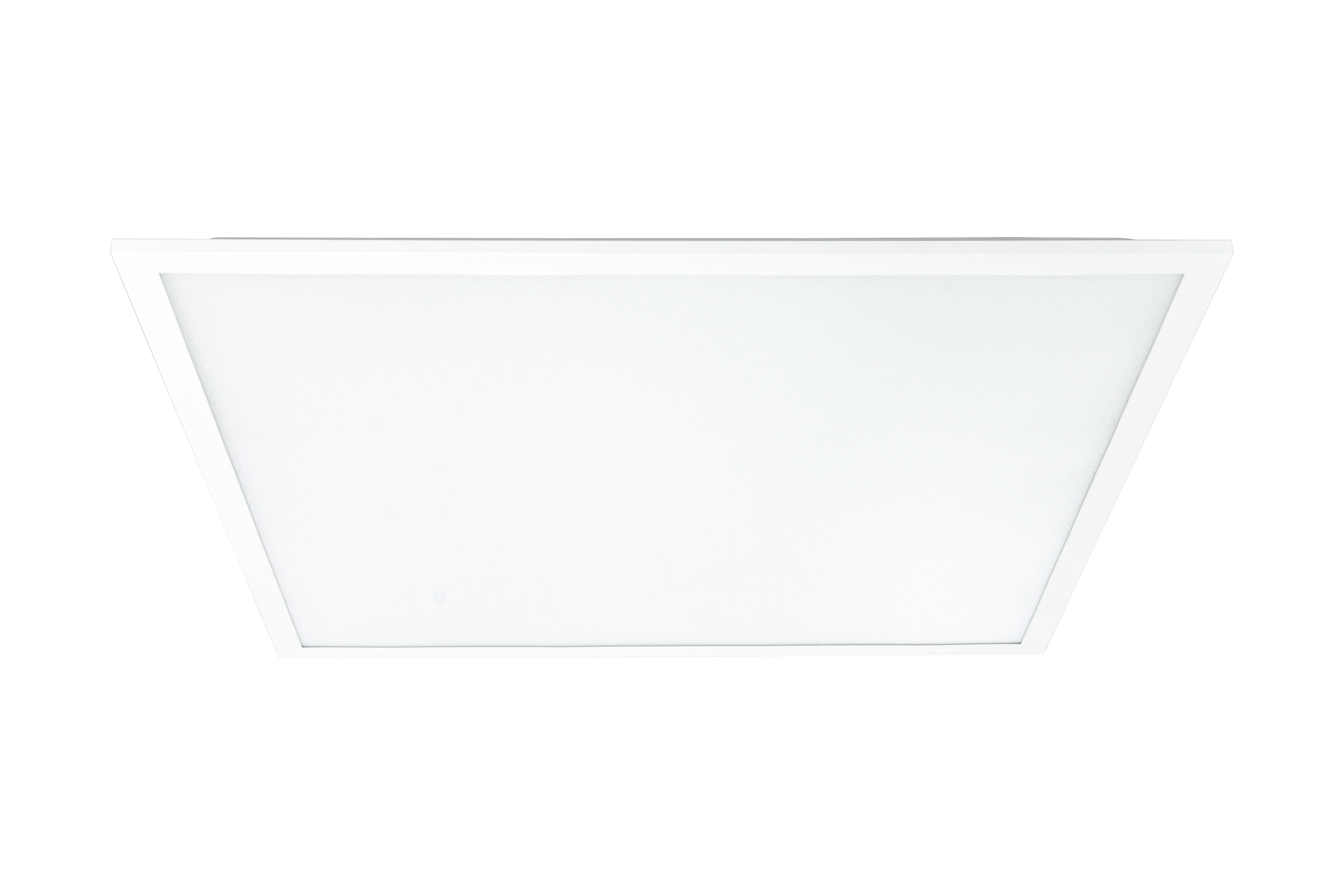

SCANPANEL 4K 60x60
Energy efficient LED panel 595x595x32, 3000K, 3810 lm, 36 W, UGR <19, 50,000 hours. Driver is sold separately with or without dimming (dimmable driver EL-no .: 6601123, non-dimmable driver EL-no .: 6601122). The driver is delivered with a 2 meter cable with plug, but can easily be connected to a fixed connection. Aluminum frame.
Dimensions
| Dimensions | 595 × 59,5 × 32 mm |
|---|---|
| Weight | 1720 g |
| Package Quantity | 5 |
Specification
| Material | Aluminum/plastic |
|---|---|
| Color | White |
| Cord Color | White |
| Electrical Safety Class | Class II |
| IP-Grade | IP40 |
| Electrical Connection | Snabbkoppling till driver |
| Mounting Principle | fully assembled |
| EL Number | 3303673 |
| GTIN | 7041661267367 |
Technical
| Ground Current/Voltage | AC200-240V |
|---|---|
| Lamp Base | LED plate |
| Replaceable LED | No |
| Max Wattage | 36 |
| Supplied Light Sources | Yes |
| Wattage Supplied Light Sources | 36W |
| Brightness | 3960 |
| Color Rendering | >80 |
| Color Temperature | 4000 K |
| SDCM | <6 |
| Life Span | 50000 |
| Light Angle | 90 |
| Dimmable | Yes |
| Driver | built-in |
