71140-01Product Number: 71140-01

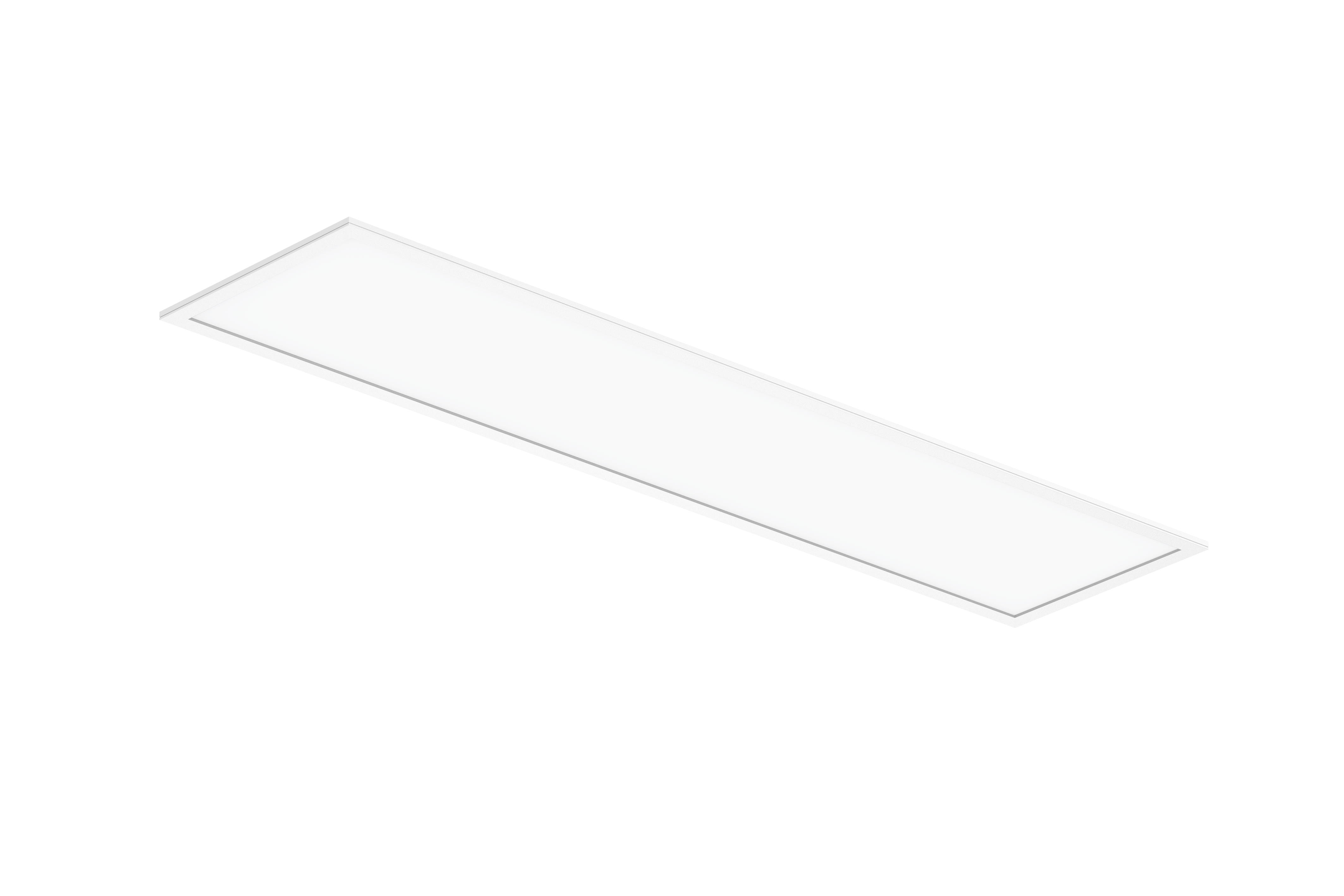

Skylight 3K 30120 XS

Extremely slim and bright LED panel with low glare. Perfect where the construction height above the suspended ceiling is limited. Specially designed to fit in our patented Skylight FRAME LED panel frame, for time-saving installation directly on the ceiling or wall!

Dimensions

Dimensions 290 × 119,5 × 29,5 mm
Weight 2400 g

Specification

Material

Aluminum/plastic

Color

White

Electrical Safety Class

Class II

IP-Grade

IP40

Electrical Connection

fixed mounting

EL Number

3303689

GTIN

7041661273542

Technical

Wattage LED

33W

Ground Current/Voltage

DC30-40V 850mA 33W

Lamp Base

LED

Replaceable LED

No

Max Wattage

33W

Supplied Light Sources

Yes

Wattage Supplied Light Sources

33W

Brightness

3850 lm

Light Efficiency Luminaire

117 lm/W

Color Rendering

>80

Color Temperature

3000K

SDCM

<3

Life Span

160000

Light Angle

90

Dimmable

Yes

Driver

not included
