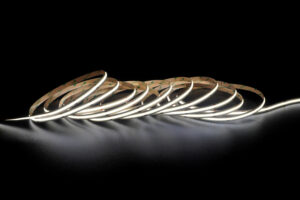

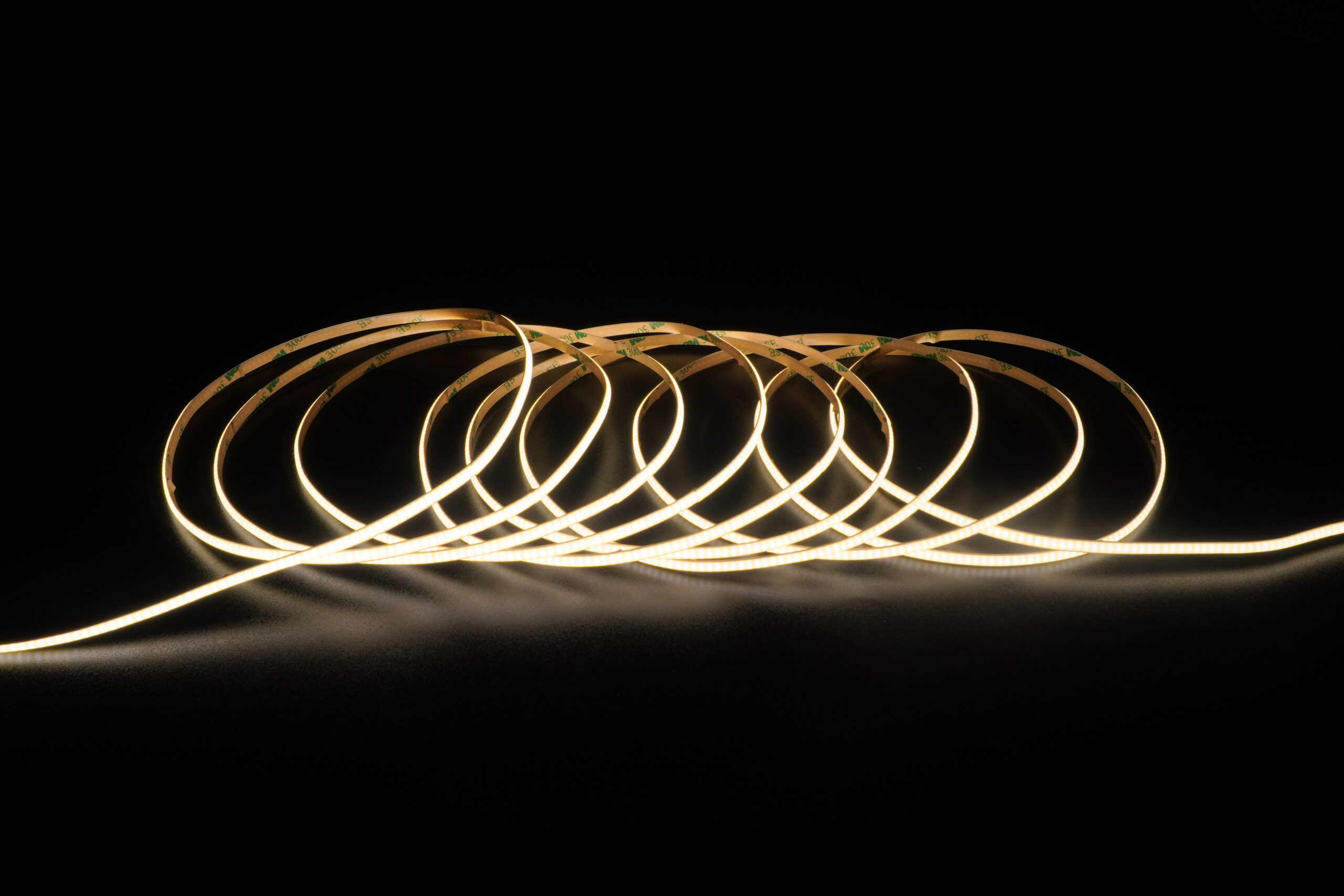

Scanstrip COB-27 slimline 10W/m IP20

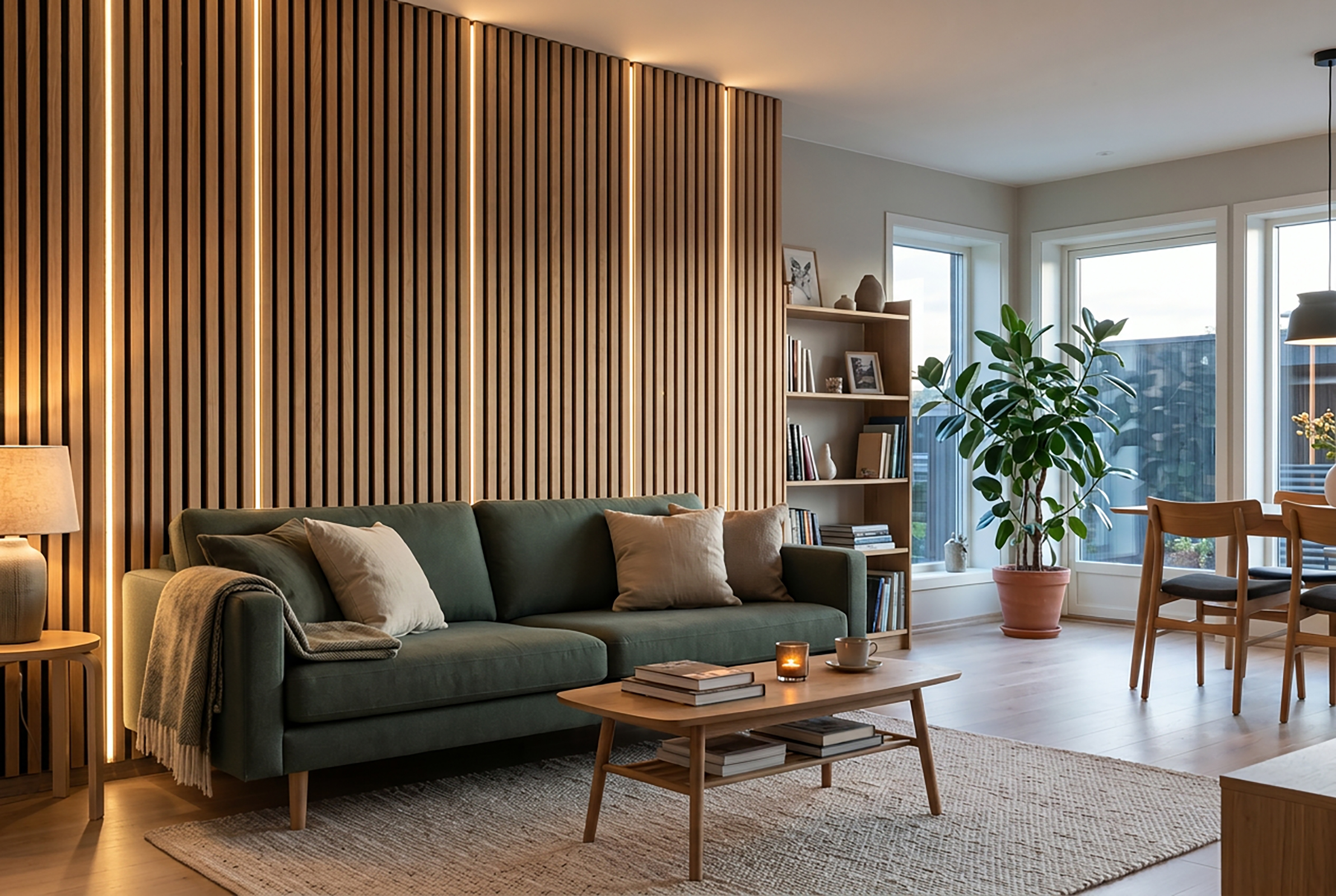

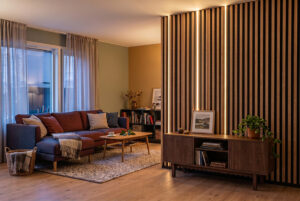

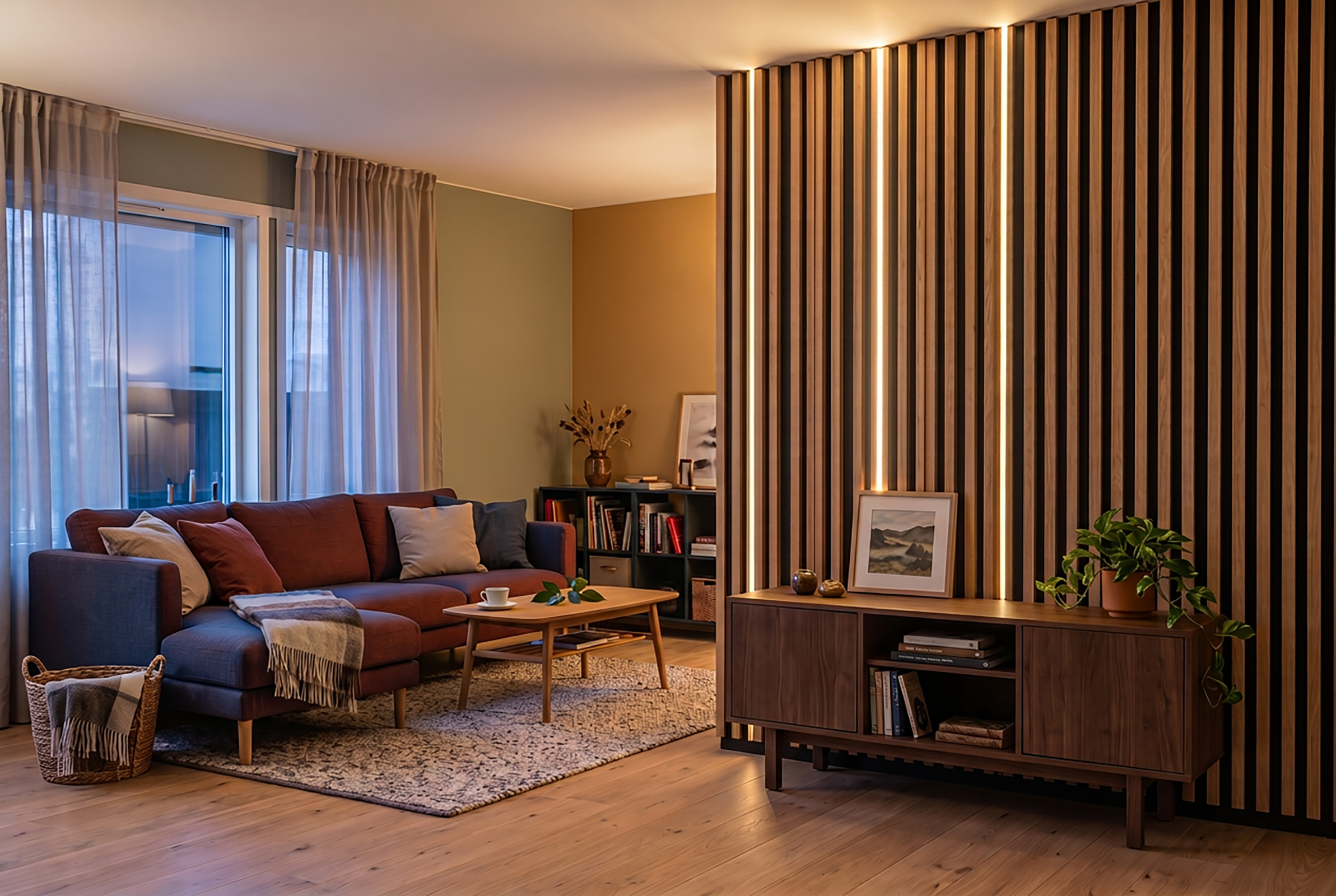

Scanstrip COB slimline can mainly be categorized as a long and flexible light diode; the diodes are closely spaced (384 LEDs/m) and covered with silicone. COB slimline 10W/m is only 5mm wide and specially developed for installation in narrow wall/ceiling slats along with Scanstrip NARROW aluminum profile (<8mm wide externally). The LED strip is available with color temperatures of 2700K and 3000K and comes in a 5m roll with a 2m white cable at both ends.
Dimensions
| Dimensions | 5000 × 0,5 × 2 mm |
|---|---|
| Weight | 180 g |
Specification
| Material | 2Oz Electrolytic Copper |
|---|---|
| Color | White / Copper |
| Electrical Safety Class | Class III |
| IP-Grade | IP20 |
| Electrical Connection | Kabel |
| EL Number | 3208693 |
| GTIN | 7041661279728 |
Technical
| Wattage LED | 10W/m |
|---|---|
| Total Wattage | 50W |
| Ground Current/Voltage | DC24V |
| Replaceable LED | No |
| Supplied Light Sources | Yes |
| Brightness | 930 lm/m |
| Light Efficiency Luminaire | 93 lm/W |
| Color Rendering | >90 |
| Color Temperature | 2700K |
| SDCM | <3 |
| Life Span | 56000 |
| Light Angle | 180° |
| Dimmable | Yes |
| Driver | not included |
