71131-01Product Number: 71131-01

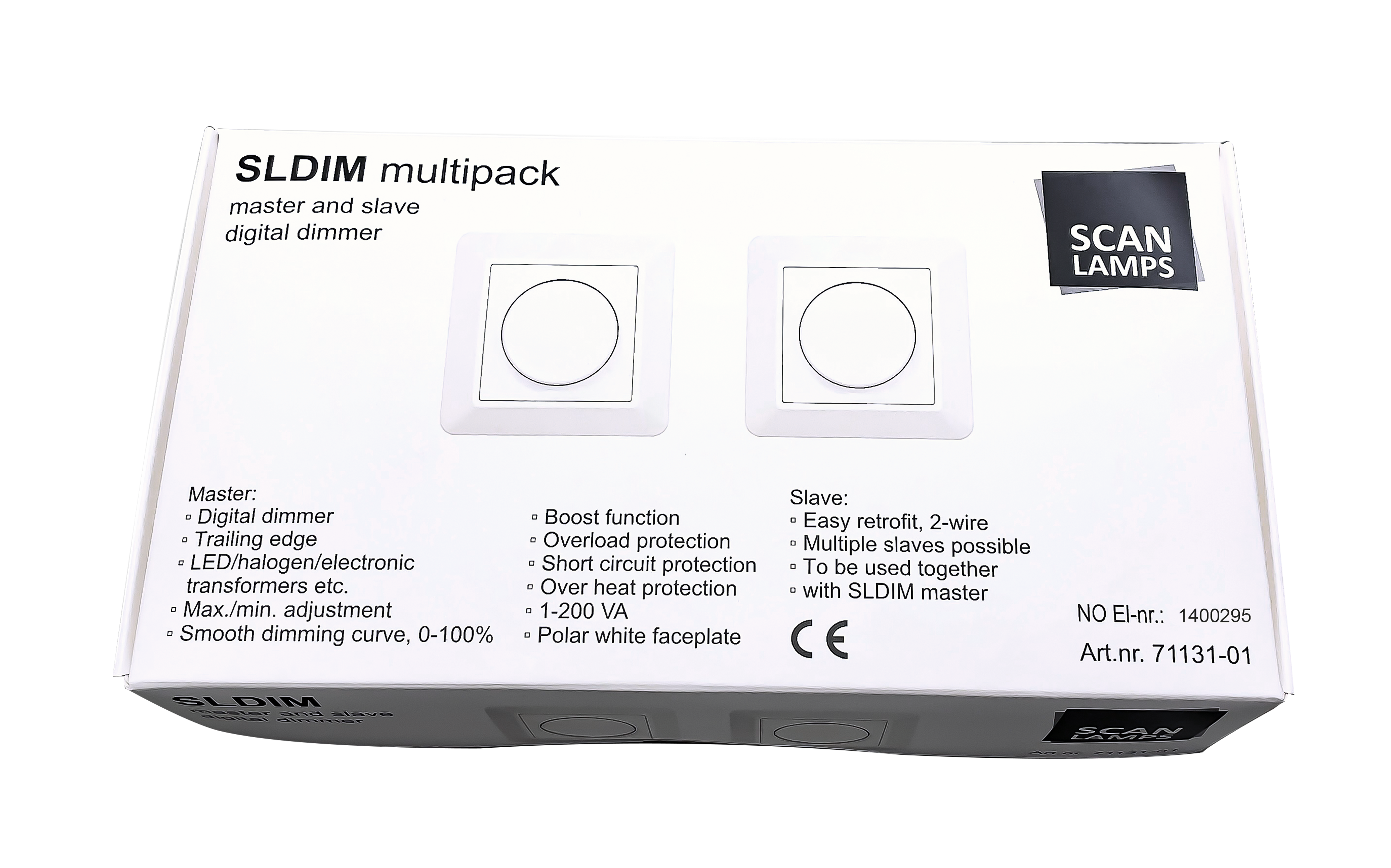

SLDIM multipack

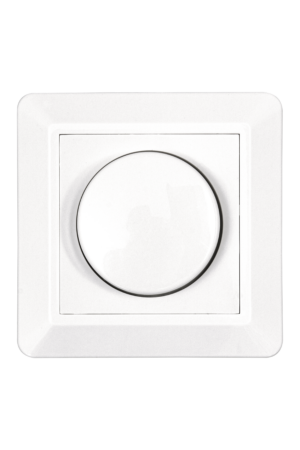

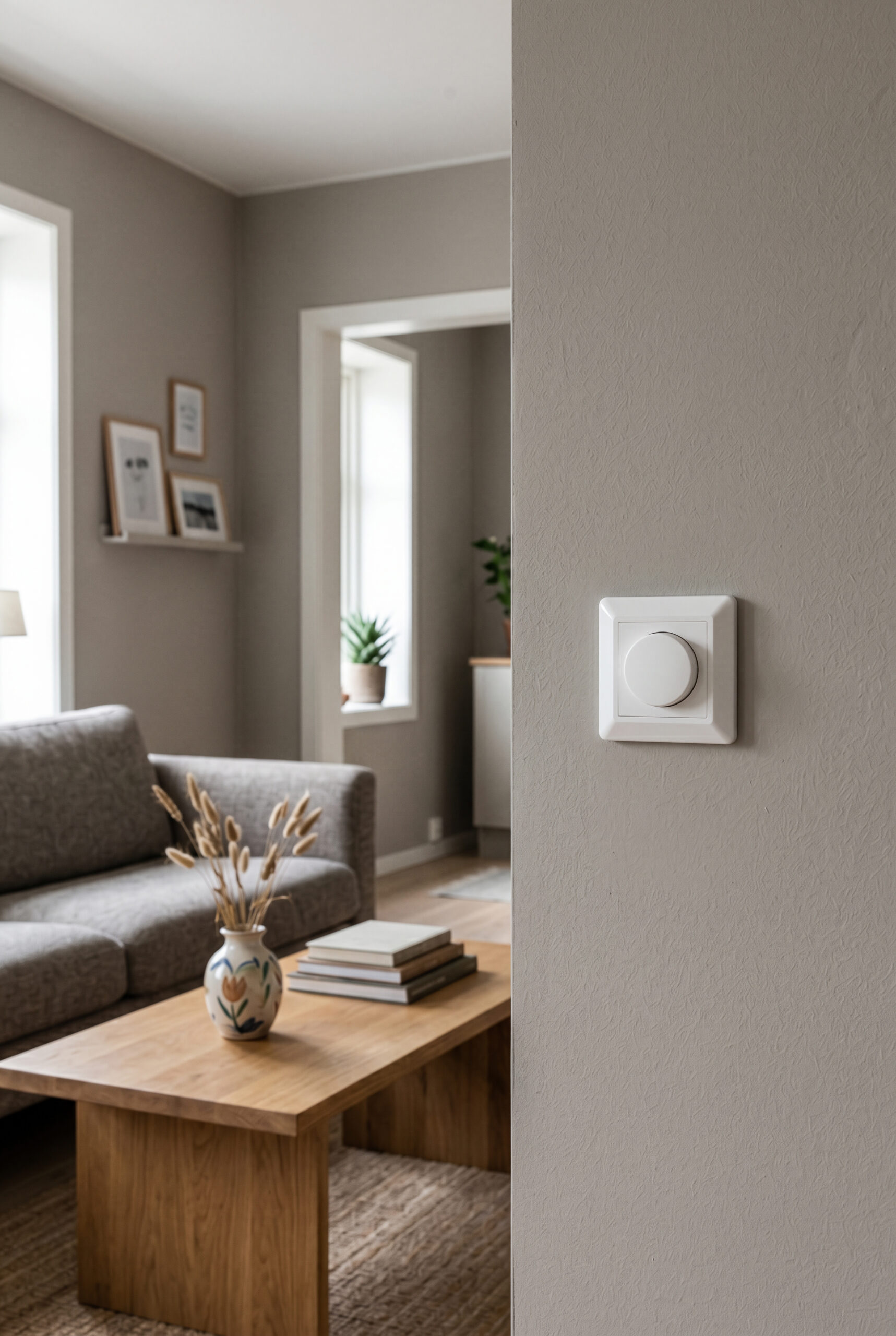

SLDIM multipack contains one master and one slave dimmer. Perfect for staircases, corridors and even in your bedroom. If you wish to control your lights from several locations additional slave modules can easily be connected.

The SLDIM master dimmer is designed to work with the ‘Live’ wire, no ‘Neutral’ wire is required for connection. This makes the dimmer easily retrofit to normal ON/OFF switches. The dimmer has a dial knob to control the brightness level. Additional dial knob control modules (SLDIM slave) can be purchased to connect to this master dimmer to extend the brightness dial control to several locations. The master dimmer and the control modules are designed to retrofit existing dual pole, triple pole and quad pole wiring circuits without the requirement of re-wiring. Only simple wire connections and plug and play actions are needed. Since different brands of LED bulbs have different dimming control circuits, the SLDIM master provides user friendly maximum and minimum brightness tuning to define the dimming range and this makes the dimmer work with most brands of LED bulbs and dimmable electronic transformers. Some LED bulbs require a large amount of power to turn on and so do not illuminate at low brightness levels. The dimmer provides a programmable trigger function which ensures a chain of combination of different brands and rating of LED light bulbs connected to turn on at the same time while in very low dimming brightness levels.

SLDIM slave is an extension of brightness and ON/OFF control of the SLDIM master. The slave module is designed to only work with the master-unit and can not be used as a dimmer by itself! SLDIM slave provide dimming and ON/OFF control of lighting in different locations (max 5 recommended).


Dimensions 44 × 8,4 × 84 mm
Weight 191 g






EL Number
