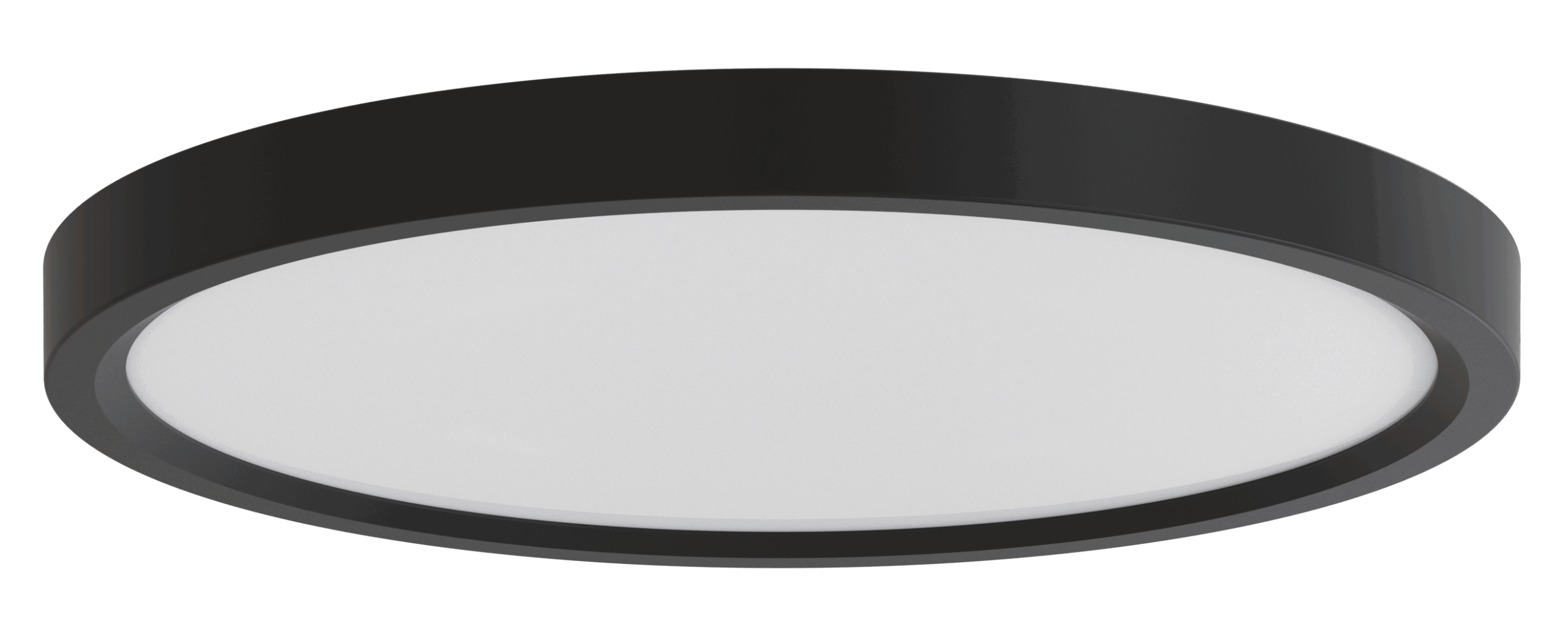

RING 15/300 evo

Dimensions

Dimensions	293 × 29,3 × 24 mm 293 × 29,3 × 24 mm
Weight	733 g 733 g

Specification

Material	Plastic
Color	Black White
Electrical Safety Class	Class II
IP-Grade	IP20
Electrical Connection	cable
IK Rating	IK05
GTIN	7041661283176 7041661283183

Technical

Wattage LED	12,92W 12,92W
Total Wattage	14W
Ground Current/Voltage	220-240V
Replaceable LED	No
Supplied Light Sources	Yes
Brightness	1425lm 1530lm
Light Efficiency Luminaire	100lm/W 110lm/W
Color Rendering	>90
Color Temperature	2700/3000/4000K
SDCM	4
Life Span	165000
Light Angle	110°
Dimmable	Yes
Dimmable Type	Trailing edge / Leading edge
Driver	built-in
UGR Rating	UGR<25
