71283-01Product Number: 71283-01

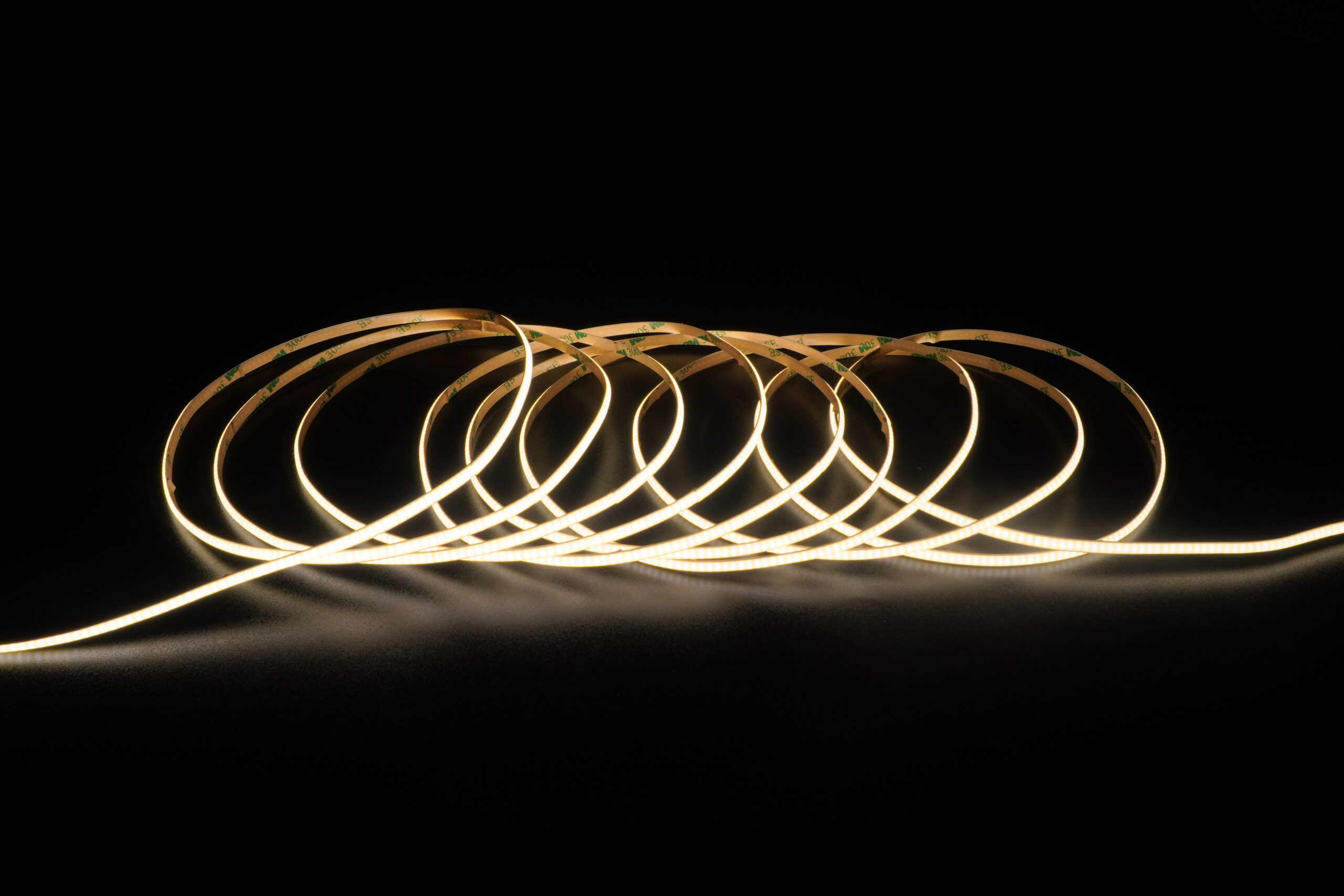

Scanstrip COB-27 slimline 10W/m IP20

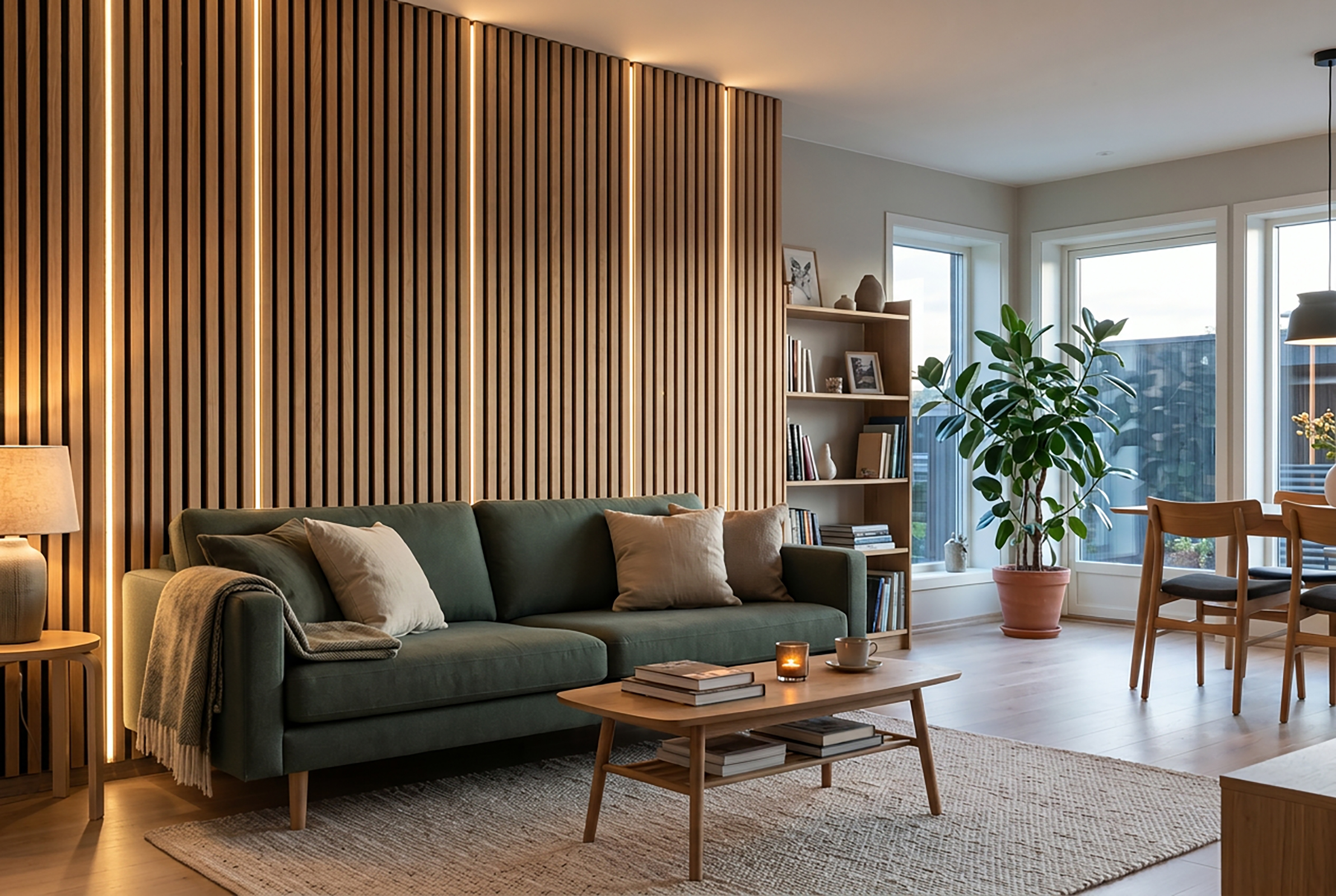

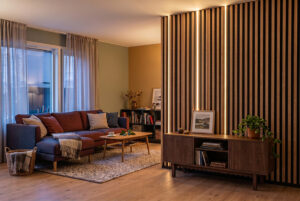

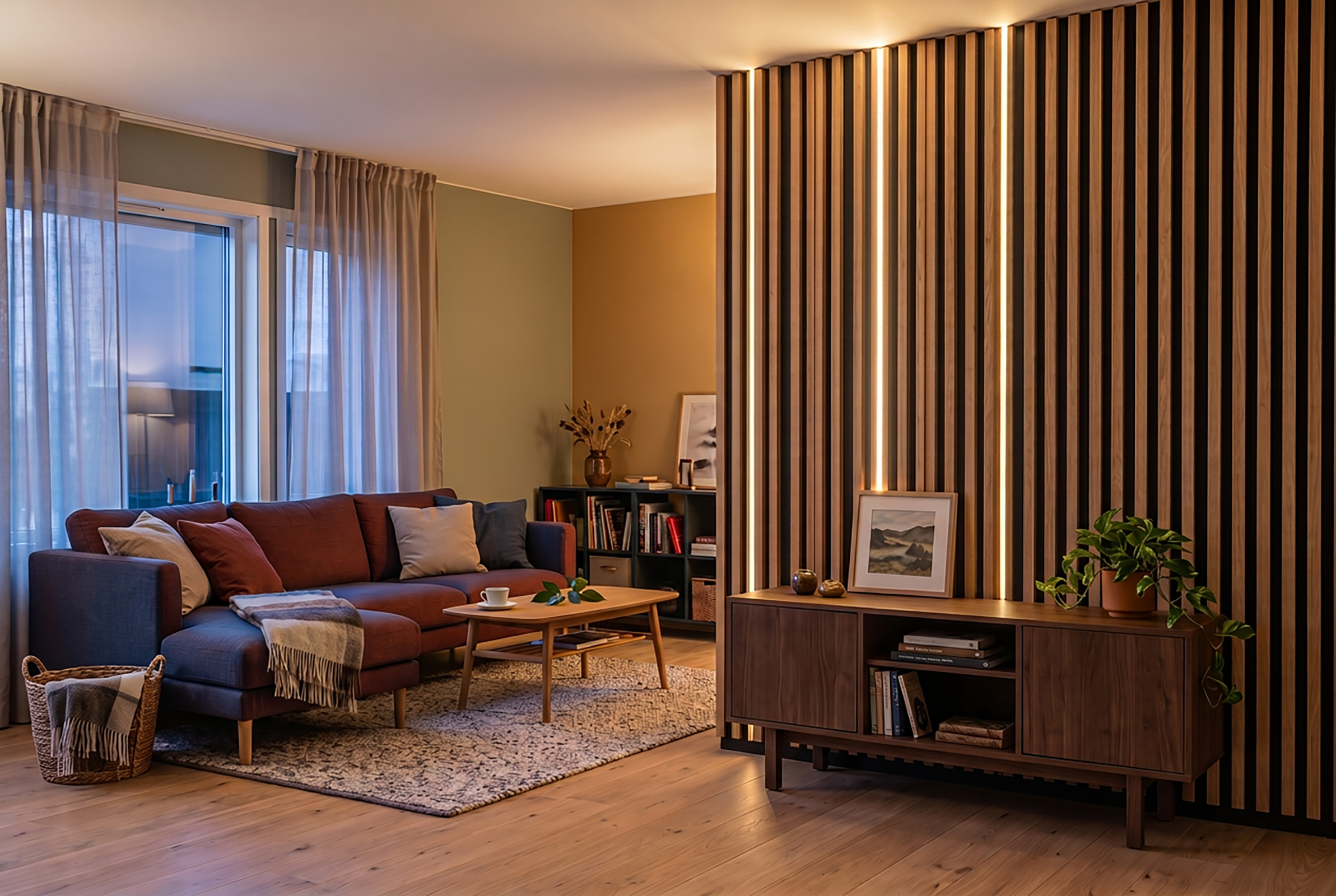

Scanstrip COB slimline can mainly be categorized as a long and flexible light diode; the diodes are closely spaced (384 LEDs/m) and covered with silicone. COB slimline 10W/m is only 5mm wide and specially developed for installation in narrow wall/ceiling slats along with Scanstrip NARROW aluminum profile (<8mm wide externally). The LED strip is available with color temperatures of 2700K and 3000K and comes in a 5m roll with a 2m white cable at both ends.

Dimensions

Dimensions 5000 × 0,5 × 2 mm
Weight 180 g

Specification

Material

2Oz Electrolytic Copper

Color

White / Copper

Electrical Safety Class

Class III

IP-Grade

IP20

Electrical Connection

Kabel

EL Number

3208693

GTIN

7041661279728

Technical

Wattage LED

10W/m

Total Wattage

50W

Ground Current/Voltage

DC24V

Replaceable LED

No

Supplied Light Sources

Yes

Brightness

930 lm/m

Light Efficiency Luminaire

93 lm/W

Color Rendering

>90

Color Temperature

2700K

SDCM

<3

Life Span

56000

Light Angle

180°

Dimmable

Yes

Driver

not included
