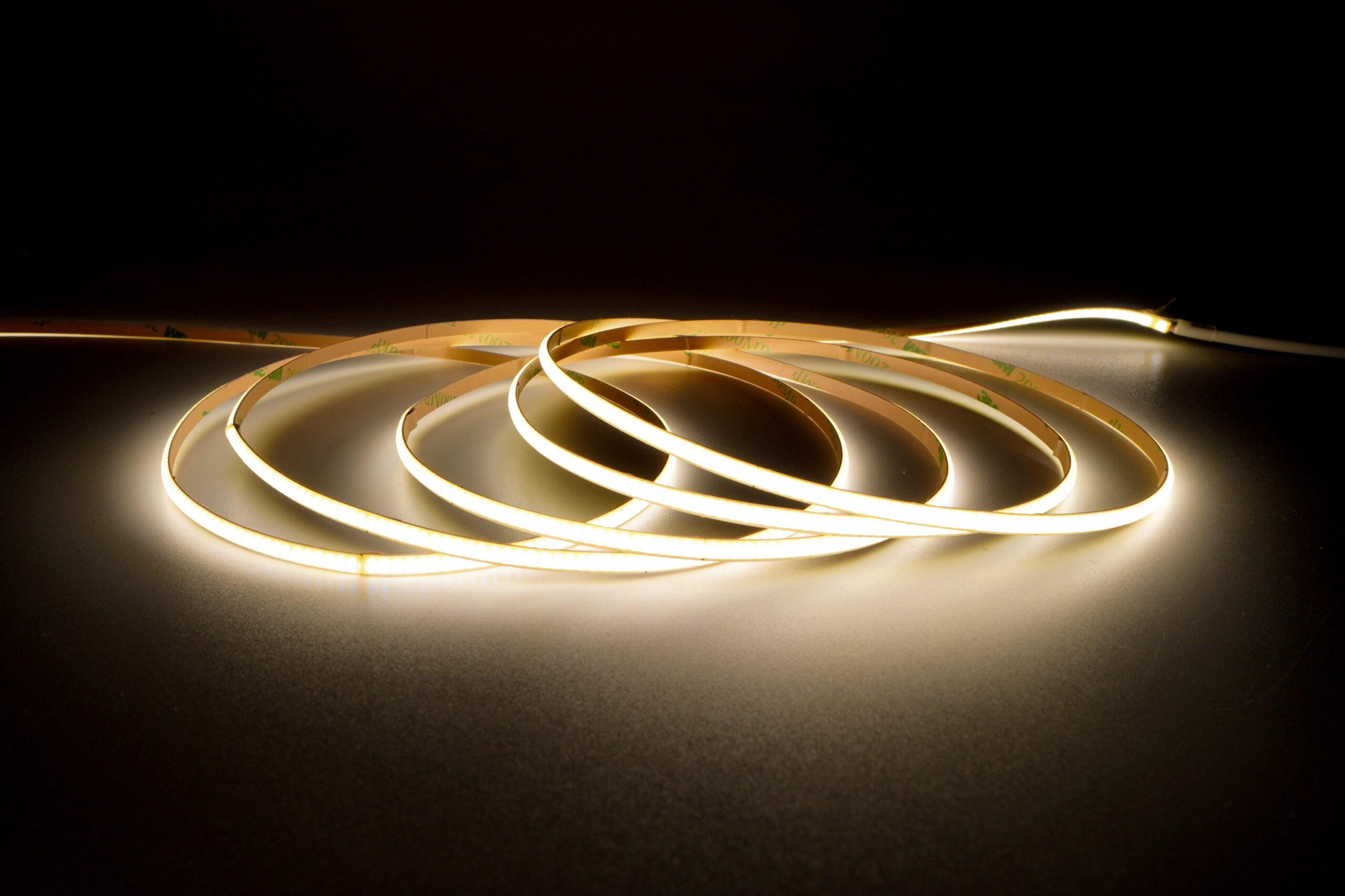

Scanstrip COB-30 slimline
Scanstrip COB can mainly be categorized as a long and flexible LED; the diodes are close (480LED/m) and are covered with silicone. COB slimline is only 4mm wide and specially developed for installation in slatted walls/ceilings together with Scanstrip NARROW aluminum profile (<8mm wide outside). The LED strip is available with a color temperature of 2700K and 3000K and is supplied on a 5m roll with 2m white cable at both ends.
Dimensions
| Dimensions | 5000 × 0,4 × 2 mm |
|---|---|
| Weight | 170 g |
Specification
| Material | 2Oz Electrolytic Copper |
|---|---|
| Color | White / Copper |
| Electrical Safety Class | Class III |
| IP-Grade | IP20 |
| Electrical Connection | Kabel |
| EL Number | 3246846 |
| GTIN | 7041661275737 |
Technical
| Wattage LED | 4W/m |
|---|---|
| Total Wattage | 20W |
| Ground Current/Voltage | DC24V |
| Lamp Base | nej |
| Replaceable LED | No |
| Supplied Light Sources | No |
| Brightness | 400 lm/m |
| Light Efficiency Luminaire | 100 lm/W |
| Color Rendering | >90 |
| Color Temperature | 3000K |
| SDCM | <3 |
| Life Span | 56000 |
| Light Angle | 180° |
| Dimmable | Yes |
| Driver | not included |
