Skylight 6060 XS

Dimensions

Dimensions	595 × 59,5 × 9 mm 595 × 59,5 × 9 mm
Weight	2350 g 2350 g

Specification

Material	Aluminum/plastic
Color	White
Electrical Safety Class	Class III
IP-Grade	IP40
Electrical Connection	Plug-in driver
GTIN	7041661271340 7041661271357

Technical

Wattage LED	33W
Ground Current/Voltage	DC30-40V
Lamp Base	LED
Replaceable LED	No
Max Wattage	33W
Supplied Light Sources	Yes
Wattage Supplied Light Sources	33W
Brightness	4125 lm 4290 lm
Light Efficiency Luminaire	125 lm/W 130 lm/W
Color Rendering	>80
Color Temperature	3000K 4000K
SDCM	<3
Life Span	160000
Light Angle	90
Dimmable	Yes
Driver	not included
UGR Rating	UGR<19

Downloads

Images

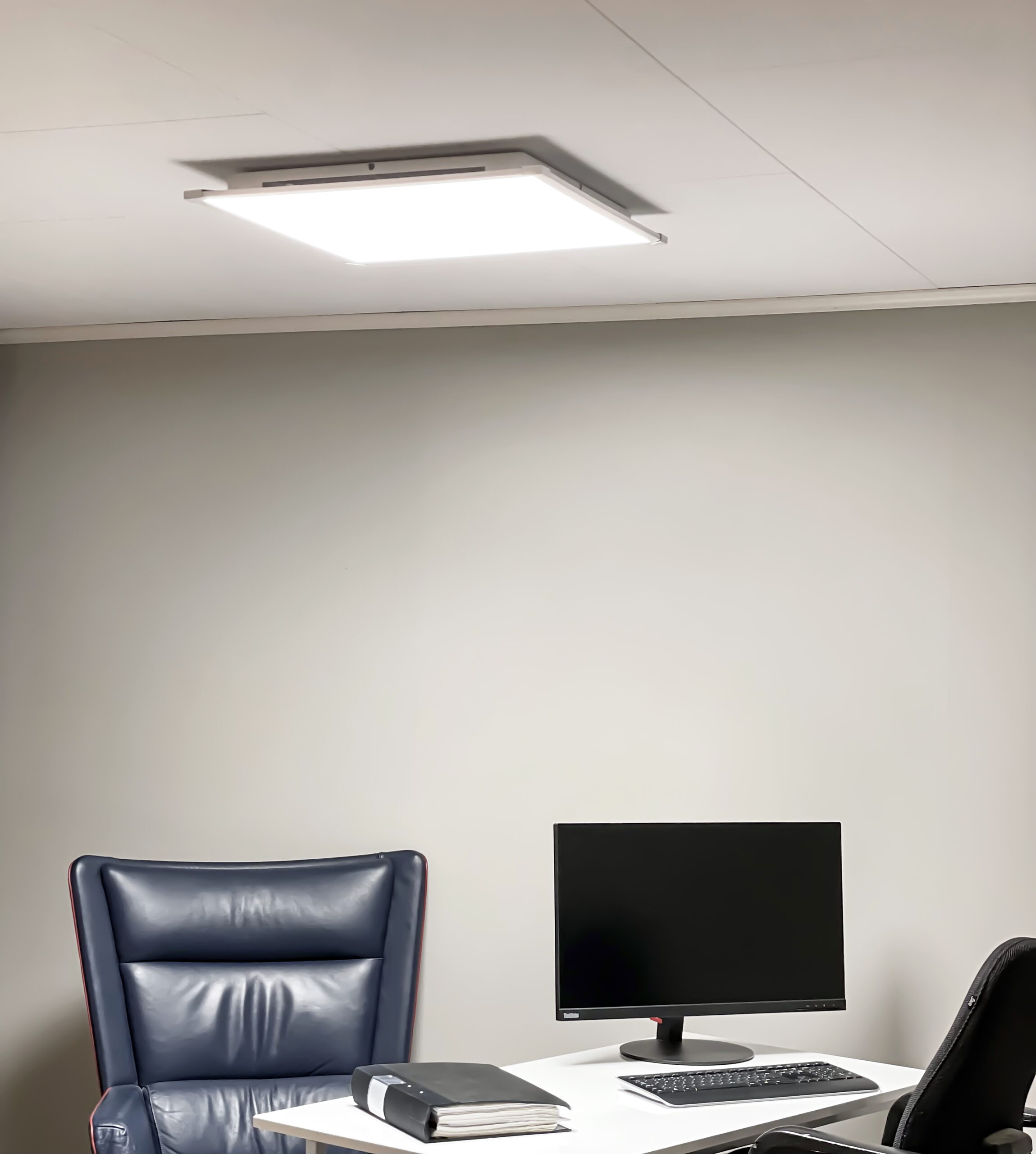

Product pictureMood picture 1Mood picture 2Mood picture 3Detail picture 1Detail picture 2

Images

Detail picture 1Detail picture 2

Documents

Assembly instructions

Images

Product pictureMood picture 1Mood picture 2Mood picture 3

Documents

Assembly instructions

Accessories

• Skylight NONdim driver

  Product Number: 71076-01

• Skylight DIM driver

  Product Number: 71077-01

• Skylight DALI driver

  Product Number: 71078-01

• Skylight 6060 FRAME

  Product Number: 71139-01
