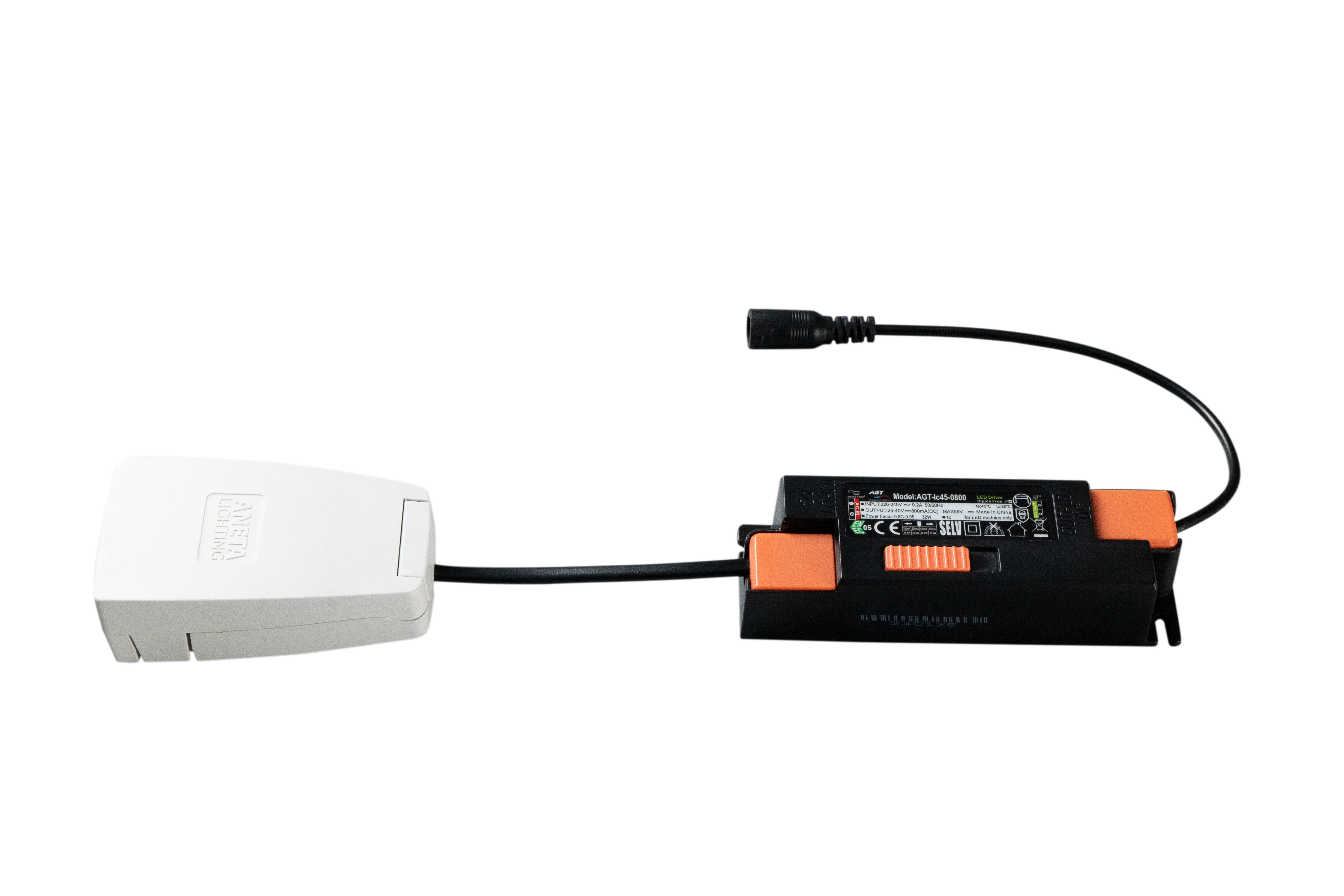

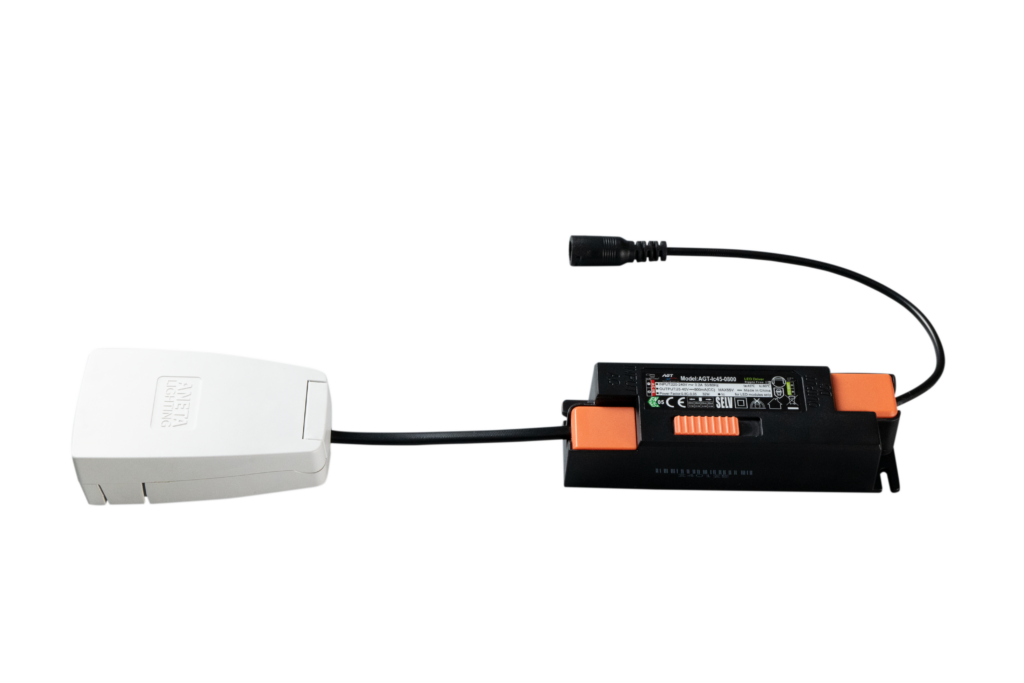

Skylight PWR 15-30W LINECT
The Skylight PWR driver series is the result of valuable feedback from our customers. A single driver can now cater to multiple applications, thanks to the ability to adjust the output power. This not only provides flexibility in customizing the lighting effect on the LED panel as needed but also allows the same driver to be adapted for our brand-new large downlights (Skylight DOME)! Skylight PWR is available in options such as ON/OFF, dimmable (phase-cut/phase-dim), and DALI, all equipped with our innovative Aneta junction box featuring WAGO LINECT.
Dimensions
Dimensions | 125 × 4 × 27 mm |
---|---|
Weight | 98 g |
Specification
Material | Plastic |
---|---|
Color | Black |
Electrical Safety Class | Class II |
IP-Grade | IP20 |
Electrical Connection | terminal block |
EL Number | 6604125 |
GTIN | 7041661281189 |
Technical
Total Wattage | 15-30W |
---|---|
Ground Current/Voltage | AC220-240V |
Life Span | 100000 |
Dimmable | No |
Driver | plug-in |
