TINY 22°

Dimensions

Dimensions	38 × 3,8 × 29 mm 38 × 3,8 × 29 mm
Cut out size	30 mm
Recess Depth	29mm
Weight	100 g 100 g

Specification

Material	Aluminium
Color	Black White
Electrical Safety Class	Class III
IP-Grade	IP65
Electrical Connection	fixed mounting
IK Rating	IK08
ISOsafe	Yes
GTIN	7041661274051 7041661274044

Technical

Wattage LED	2W
Ground Current/Voltage	24V
Lamp Base	LED
Replaceable LED	No
Max Wattage	2
Supplied Light Sources	Yes
Brightness	165 lm 170 lm
Light Efficiency Luminaire	65 lm/W 67 lm/W
Color Rendering	>90
Color Temperature	2700K
SDCM	<2
Life Span	100000
Light Angle	22°
Dimmable	Yes
Driver	not included
UGR Rating	UGR<28

Downloads

Images

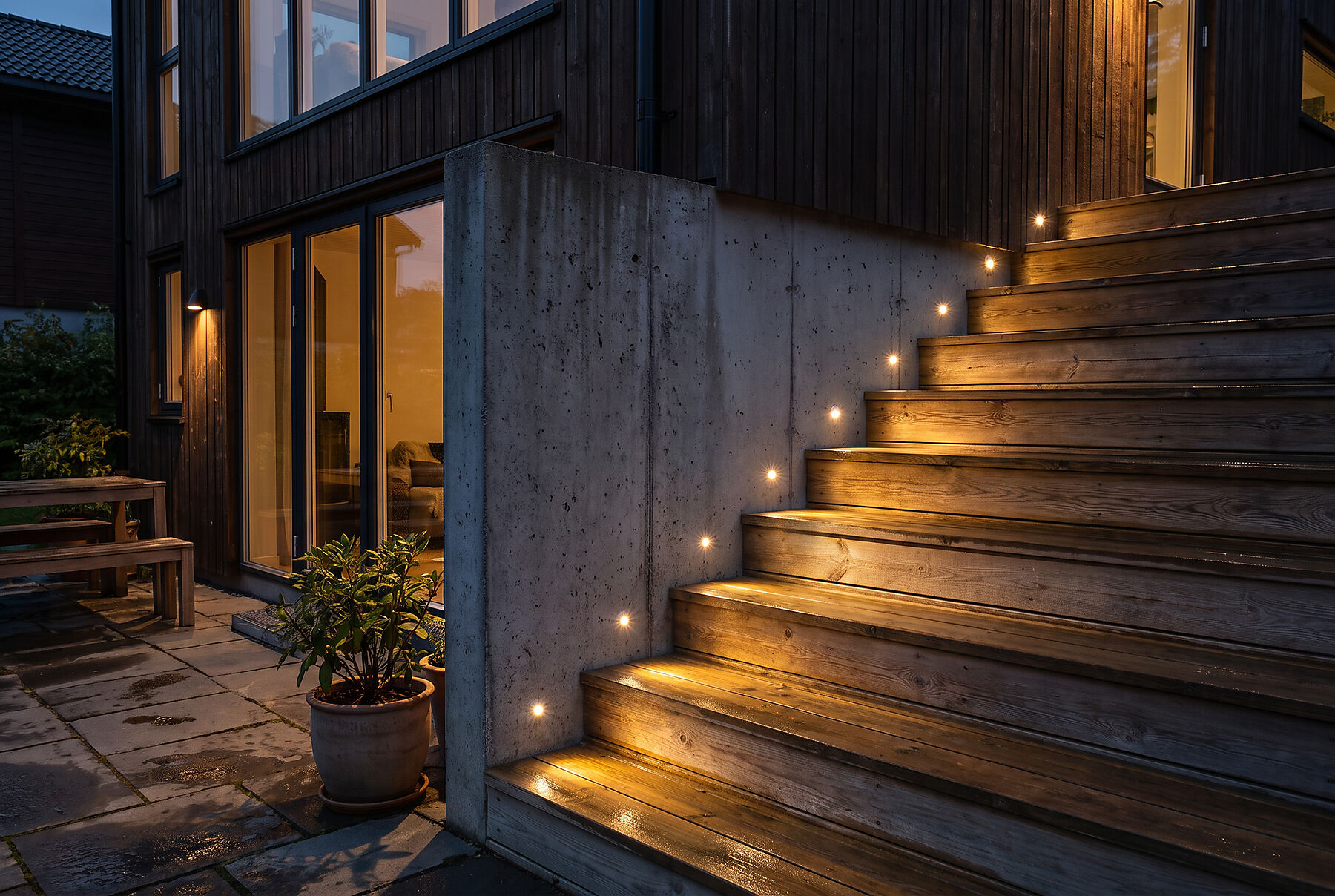

Product picture 1Product picture 2Detail picture 1Detail picture 2Detail picture 3Detail picture 4

Documents

Assembly instructions

Images

Product pictureDetail picture 1Detail picture 2Detail picture 3

Documents

Assembly instructions

Images

Product pictureDetail picture

Documents

Assembly instructions

Accessories

• Scanstrip DIM12 IP65 driver

  Product Number: 71060-01

• Scanstrip DIM25 driver

  Product Number: 71061-01

• Scanstrip DIM50 driver

  Product Number: 71062-01

• Scanstrip DIM100 driver

  Product Number: 71063-01

• Scanstrip DIM 200 IP67 driver

  Product Number: 71064-27

• Scanstrip CTR18

  Product Number: 71158-01

• Scanstrip CTR40

  Product Number: 71159-01

• Scanstrip CTR75

  Product Number: 71160-01

• Scanstrip CTR150

  Product Number: 71161-01
