71160-01Product Number: 71160-01

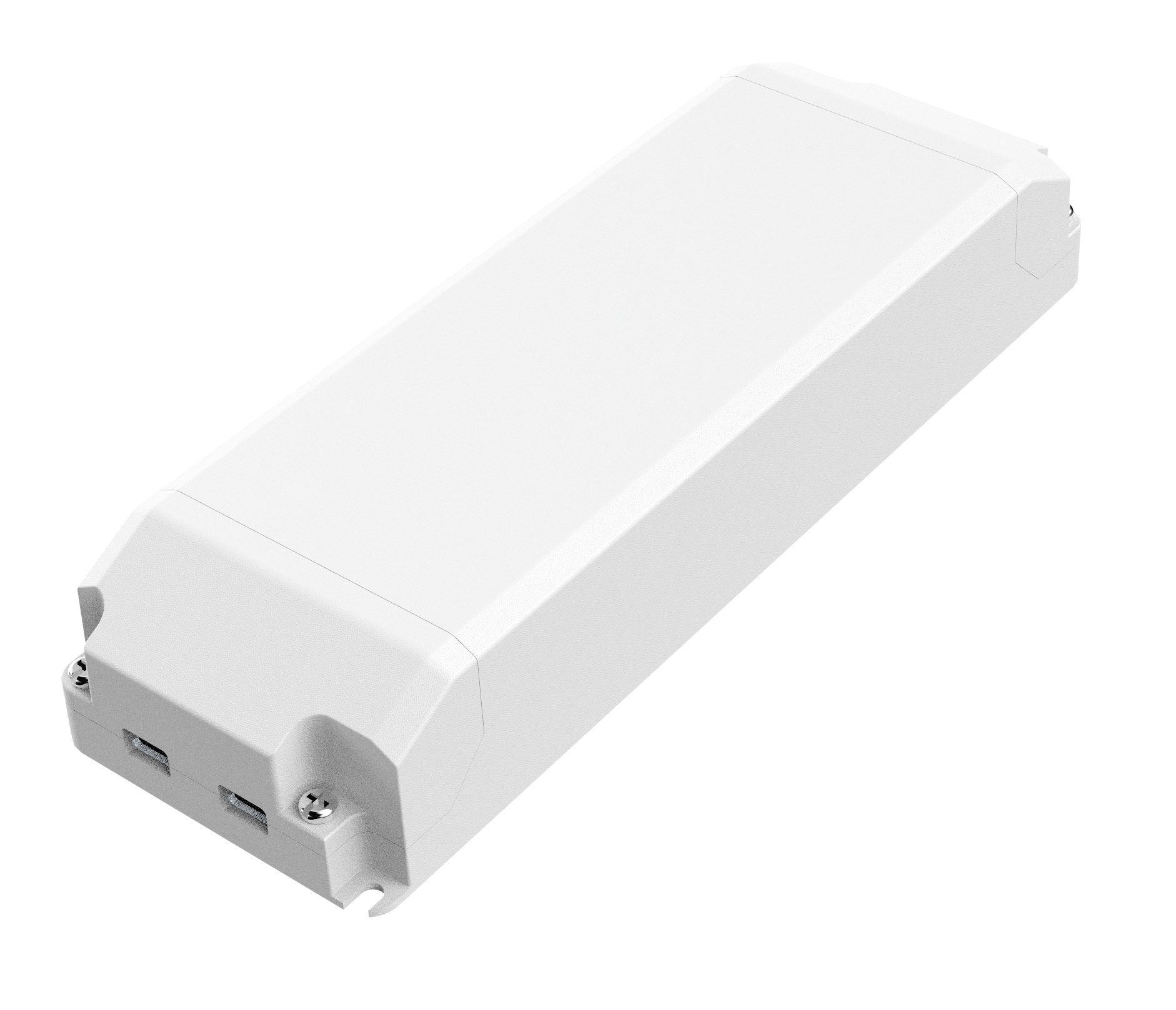

Scanstrip CTR75

The Scanstrip CTR driver series is perfect in combination with our CTR LED strip control system. For simplicity, the products also share the same product name. The drivers are of the highest quality and ensure stable DC24V voltage to the controllers or directly to the LED strip; even at very low loads. CTR18, CTR40, CTR75 and CTR150 have had all product text printed on the back and behind the connection covers to ensure the prettiest possible result if the driver is mounted directly on the wall / ceiling. CTR75 is 75W and a natural middle ground where little brother CTR40 is too small and big brother CTR150 is too big.

Dimensions

Dimensions 184 × 3,2 × 61 mm
Weight 200 g

Specification

Material

Plastic

Color

White

Electrical Safety Class

Class II

IP-Grade

IP20

Electrical Connection

fixed mounting

EL Number

6604123

GTIN

7041661273955

Technical

Ground Current/Voltage

DC24V

Max Wattage

75W

Life Span

50000
