New
71161-01Product Number: 71161-01

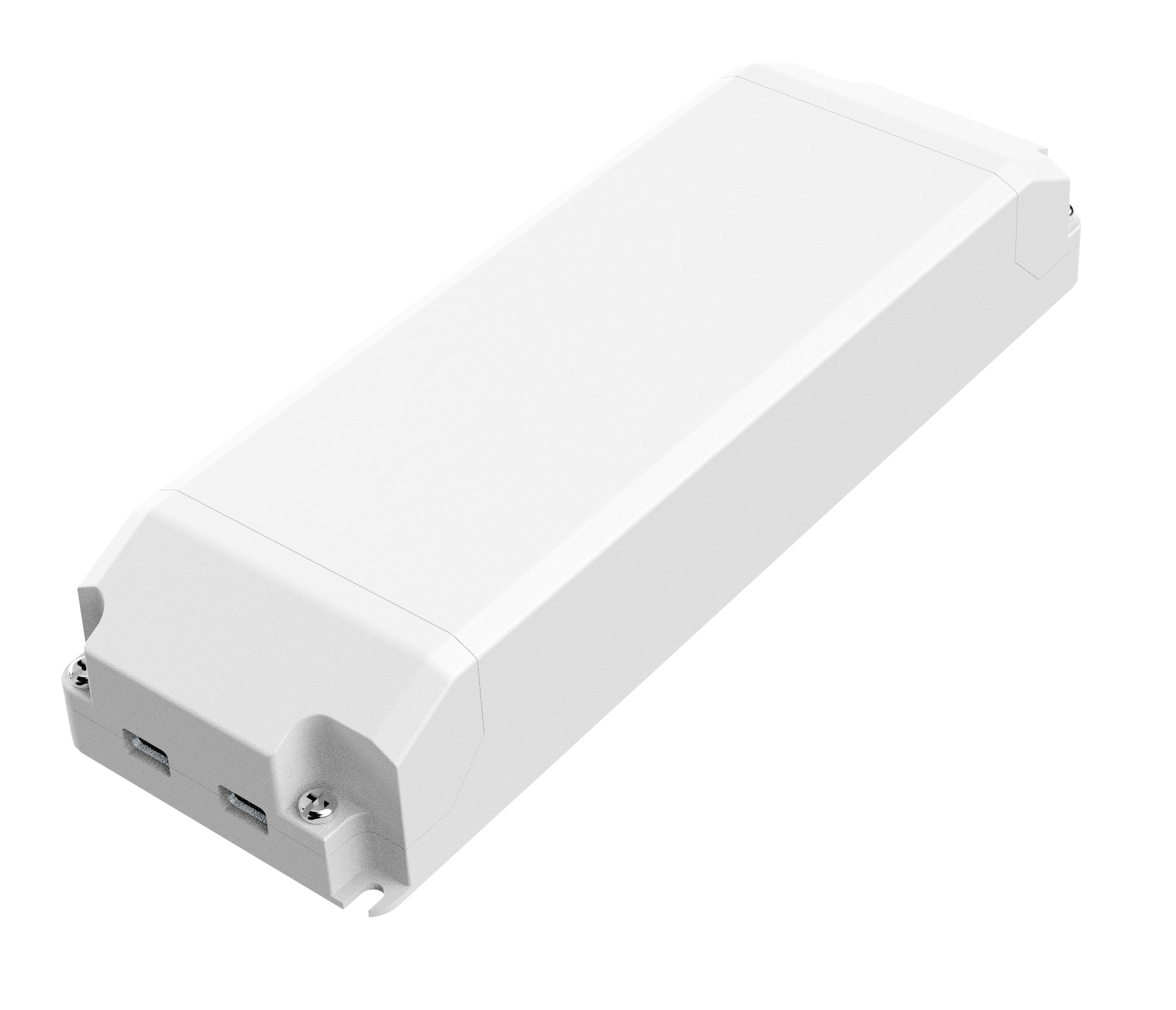

Scanstrip CTR150

The Scanstrip CTR driver series is perfect in combination with our CTR LED strip control system. For simplicity, the products also share the same product name. The drivers are of the highest quality and ensure stable DC24V voltage to the controllers or directly to the LED strip; even at very low loads. CTR18, CTR40, CTR75 and CTR150 have had all product text printed on the back and behind the connection covers to ensure the prettiest possible result if the driver is mounted directly on the wall / ceiling. The CTR150 is 150W and is perfect for longer LED strip installations or many shorter stretches.

Dimensions

Dimensions 34 × 21 × 67 mm
Weight 500 g
Package Quantity

50

Specification

Material

Plastic

Color

White

Electrical Safety Class

Class II

IP-Grade

IP20

Electrical Connection

fixed mounting

EL Number

6604124

GTIN

7041661273948

Technical

Ground Current/Voltage

DC24V

Max Wattage

150W

Life Span

50000
