71165Product Number: 71165-15 Product Number: 71165-70

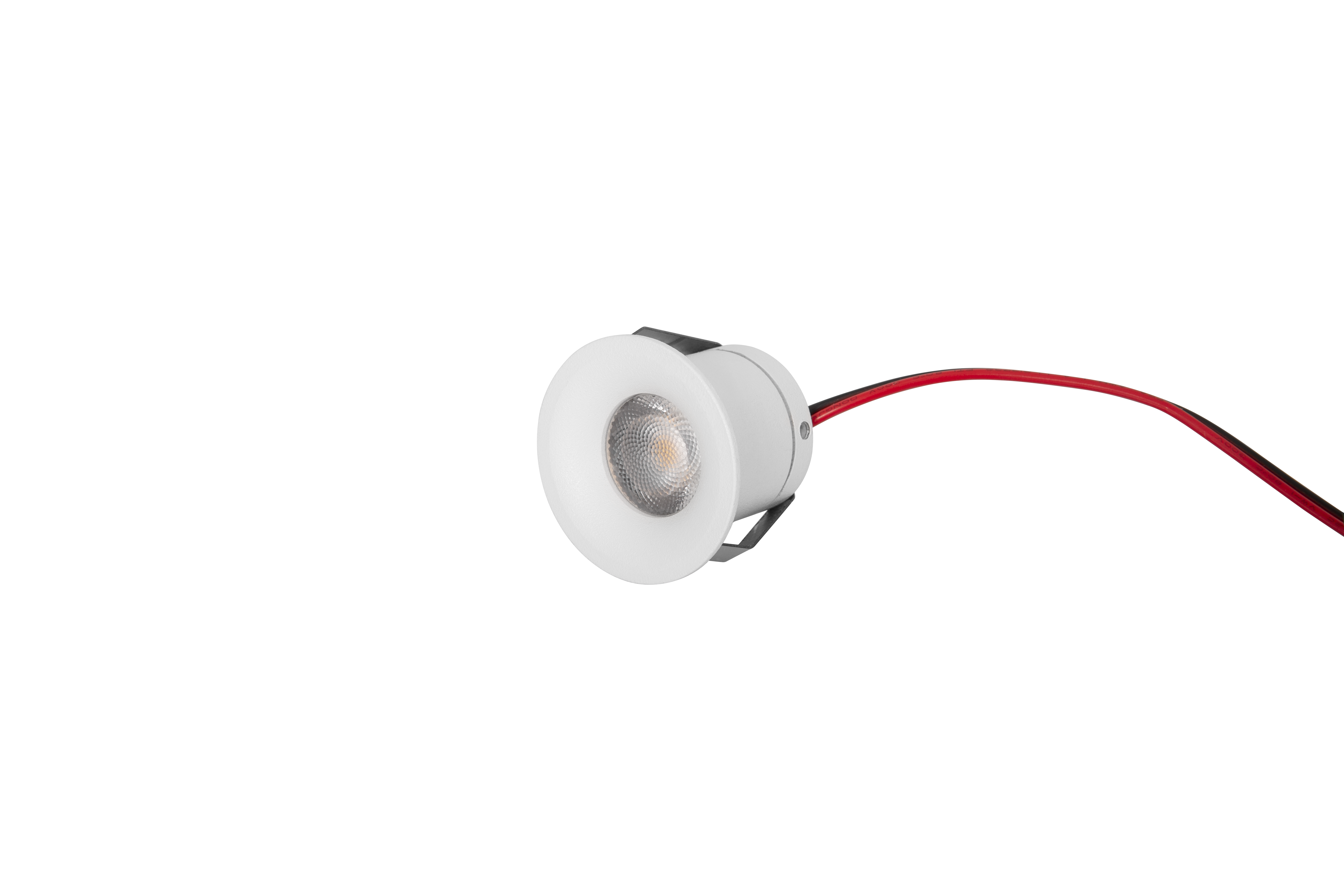

TINY 33°

Dimensions

Dimensions

38 × 3,8 × 29 mm

38 × 3,8 × 29 mm
Cut out size

30 mm
Recess Depth

29mm
Weight

100 g

100 g

Specification

Material

Aluminium
Color

Black

White
Electrical Safety Class

Class III
IP-Grade

IP65
Electrical Connection

fixed mounting
IK Rating

IK08
ISOsafe

Yes
EL Number

3246842

3246841
GTIN

7041661274075

7041661274068

Technical

Wattage LED

2W
Ground Current/Voltage

24V
Lamp Base

LED
Replaceable LED

No
Max Wattage

2
Supplied Light Sources

Yes
Brightness

165 lm

170 lm
Light Efficiency Luminaire

65 lm/W

67 lm/W
Color Rendering

>90
Color Temperature

2700K
SDCM

<2
Life Span

100000
Light Angle

33°
Dimmable

Yes
Driver

not included
UGR Rating

UGR<28
