New
71150-01Product Number: 71150-01

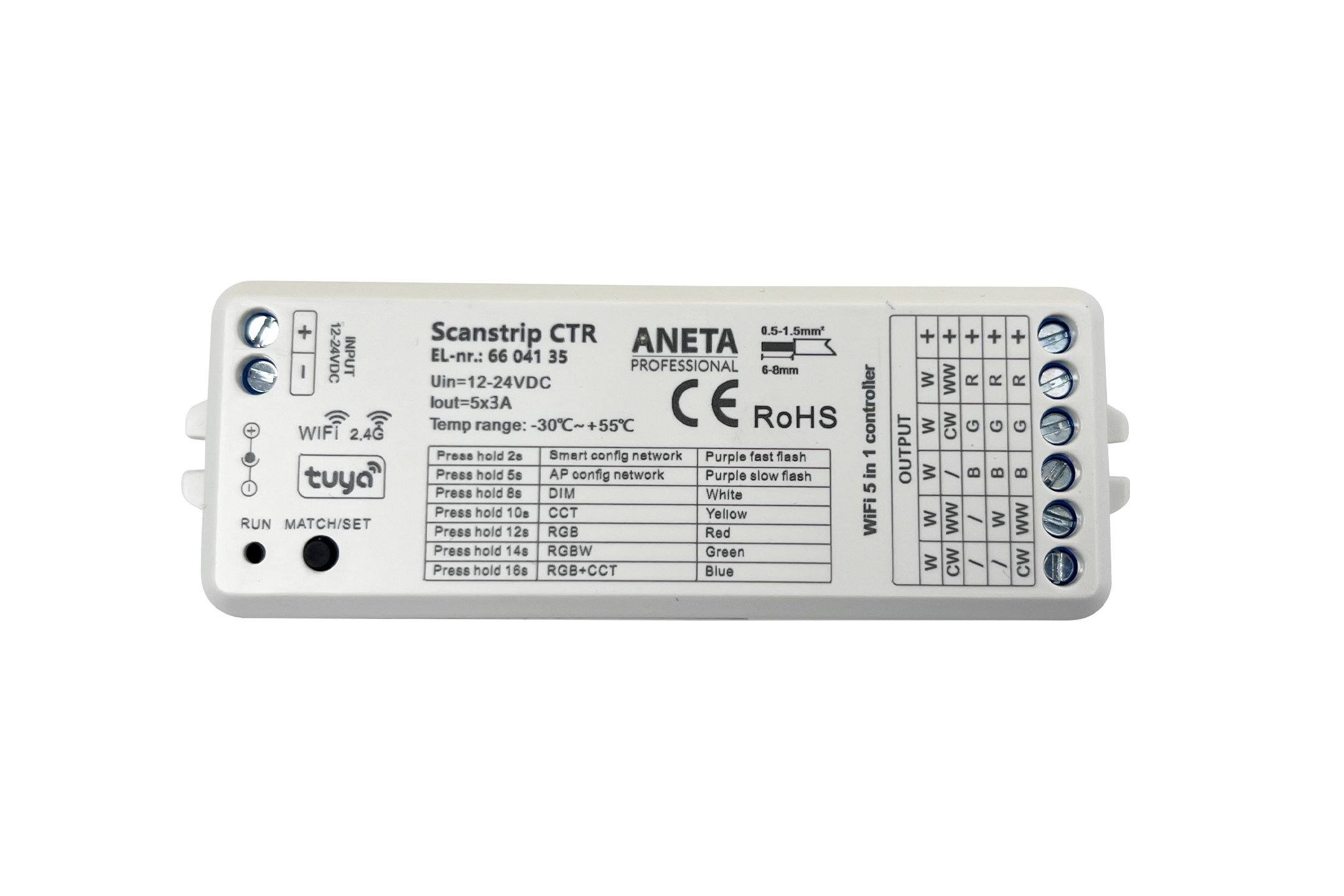

Scanstrip CTR

Scanstrip CTR is a 5 in 1 Wi-Fi controller with five outputs of 3A (max. 72W) for controlling DC12-24V LED strips! The controller can control single colour / dual colour (CCT) / RGB / RGBW or RGB + CCT LED strips depending on which mode it’s set to. Choose between remote control (Scanstrip REMOTE DIM / CCT / RGBW), wall panel (Scanstrip REMOTE AC PANEL / BATTERY PANEL) or via mobile app (TUYA). The controller dims with pulse width modulation (PWM), communicates via RF 2.4GHz or TUYA app and has a wireless range of up to 30m. Several controllers can be connected to the same remote control / wall panel; or several remote controls / wall panel can be connected to one controller to achieve the desired function in your system.

Dimensions

Dimensions 114 × 3,8 × 20 mm
Weight 100 g
Package Quantity

100

Specification

Material

Plastic

Color

White

IP-Grade

IP20

Electrical Connection

fixed mounting

EL Number

6604135

GTIN

7041661273870

Technical

Total Wattage

5×36-72W

Ground Current/Voltage

12-24V

Life Span

50000

Driver
