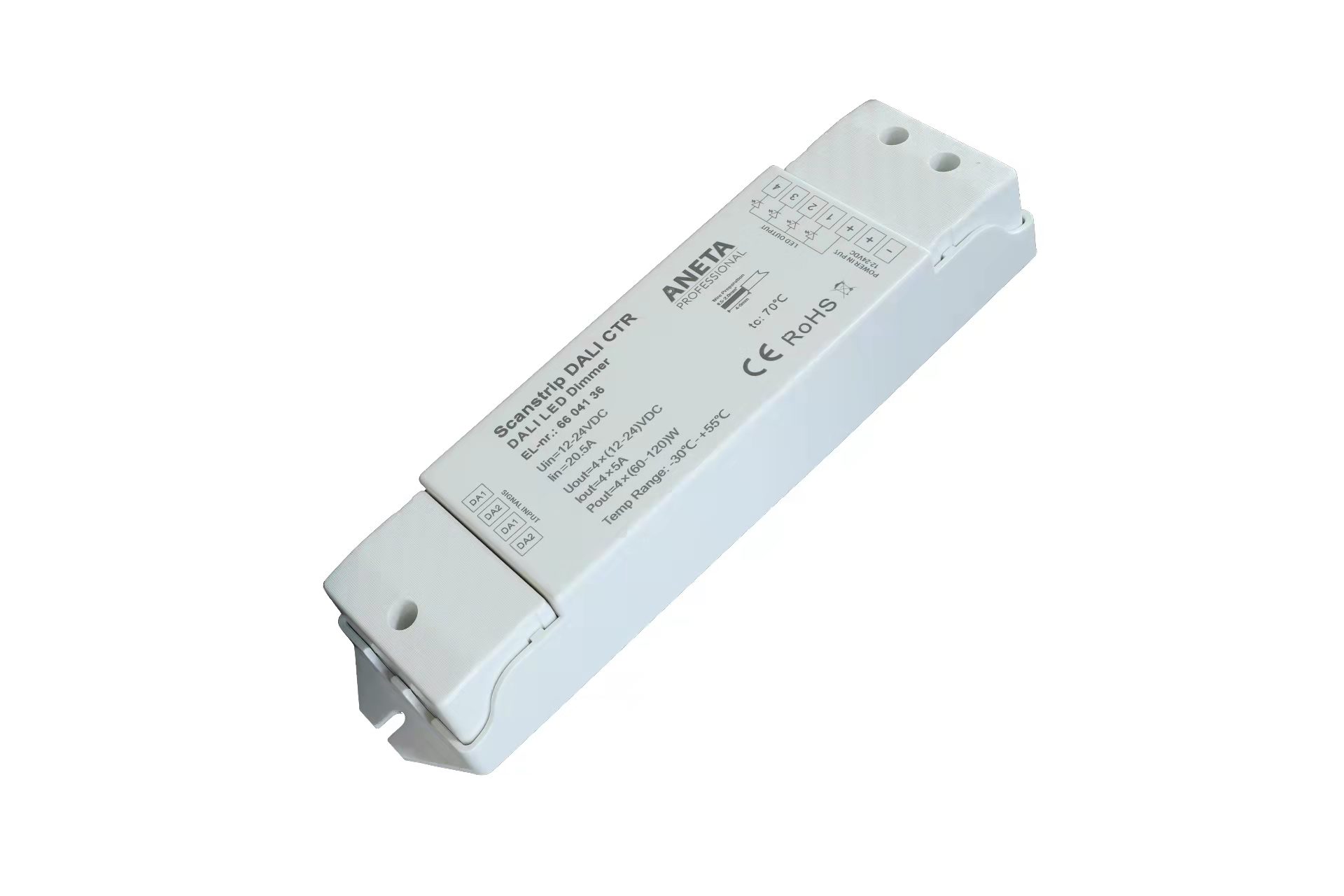

Scanstrip DALI CTR
Scanstrip DALI CTR is a DC12-24V DALI LED strip controller with four channels, where each channel has its individual DALI address and can be operated independently. The controller dims with pulse width modulation (PWM) and each output can handle up to 5A (max. 120W).
Dimensions
| Dimensions | 175 × 4,5 × 27 mm |
|---|---|
| Weight | 130 g |
Specification
| Material | Plastic |
|---|---|
| Color | White |
| IP-Grade | IP20 |
| Electrical Connection | fixed mounting |
| GTIN | 7041661273887 |
Technical
| Total Wattage | 4×60W-120W |
|---|---|
| Ground Current/Voltage | 12-24V |
Downloads
