71016Product Number: 71016-01 Product Number: 71019-01 Product Number: 71022-01

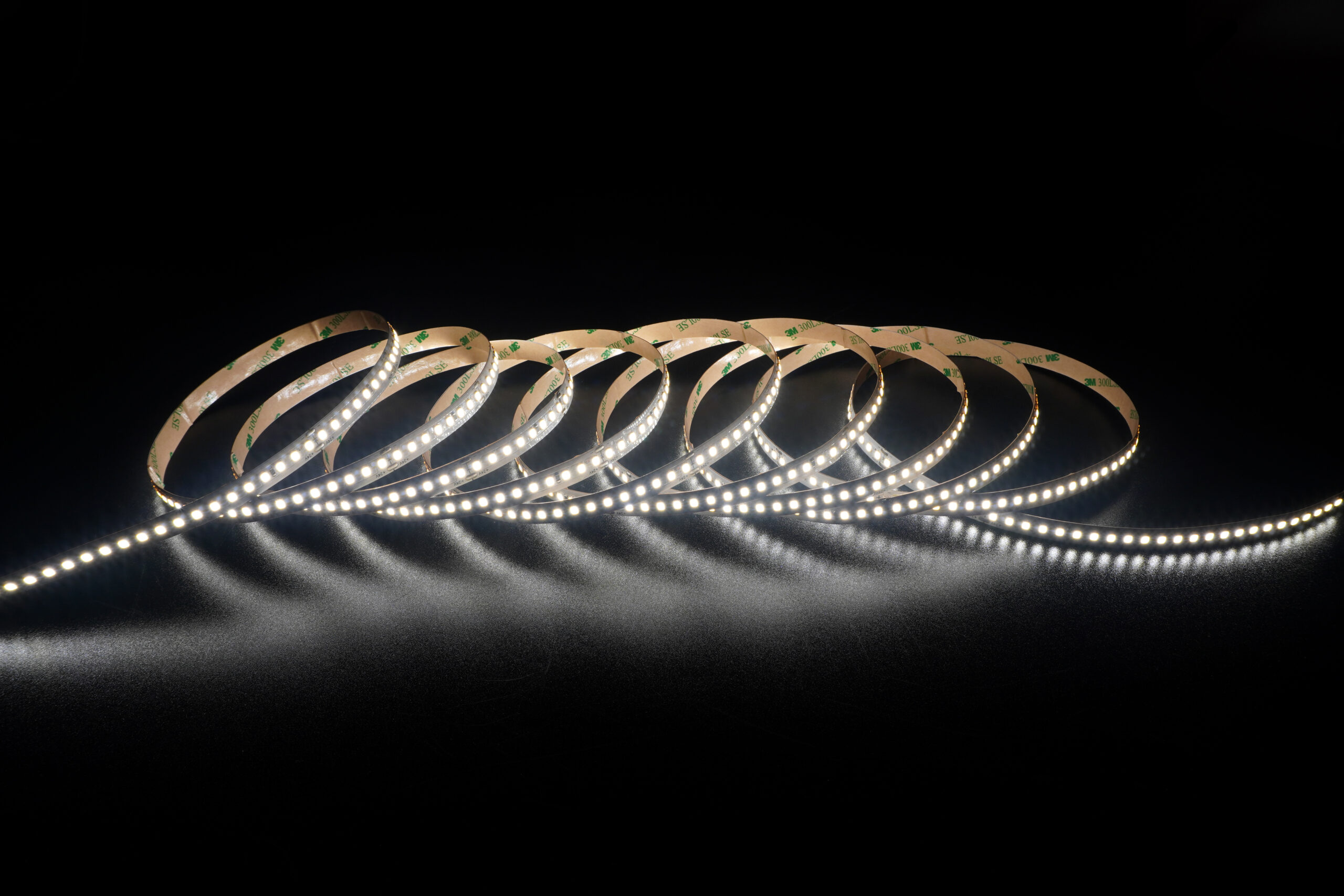

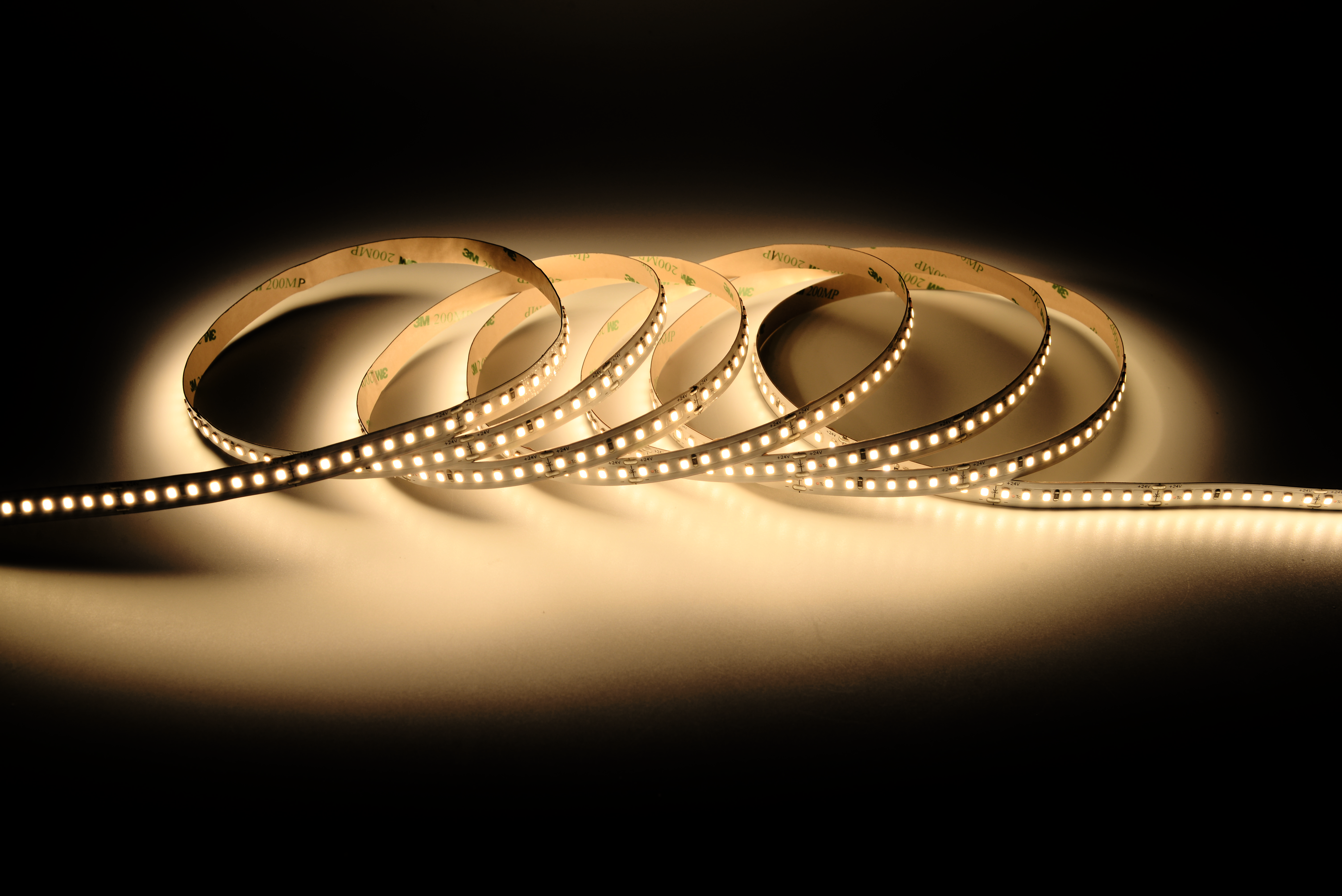

Scanstrip BRIGHT IP20

Dimensions

Dimensions

5000 × 1 × 1,2 mm

5000 × 1 × 1,2 mm

5000 × 1 × 1,2 mm
Weight

120 g

120 g

200 g

Specification

Material

2Oz Electrolytic Copper
Color

White
Electrical Safety Class

Class III
IP-Grade

IP20
Electrical Connection

Kabel
EL Number

3203946

3203949

3208692
GTIN

7041661270466

7041661270763

7041661279711

Technical

Wattage LED

72W, 14,4W/m

72W, 14,4W/m

72W, 14,4W/m
Ground Current/Voltage

DC24V
Lamp Base

LED
Replaceable LED

No
Max Wattage

72W
Supplied Light Sources

Yes
Brightness

9360 lm, 1872 lm/W

9360 lm, 1872 lm/W

10050 lm, 2010 lm/W
Light Efficiency Luminaire

85lm/W

85lm/W

140
Color Rendering

>90
Color Temperature

2700K

3000K

4000K
SDCM

<3
Life Span

56000
Light Angle

120°
Dimmable

Yes
Driver

not included
