71010Product Number: 71010-01 Product Number: 71013-01

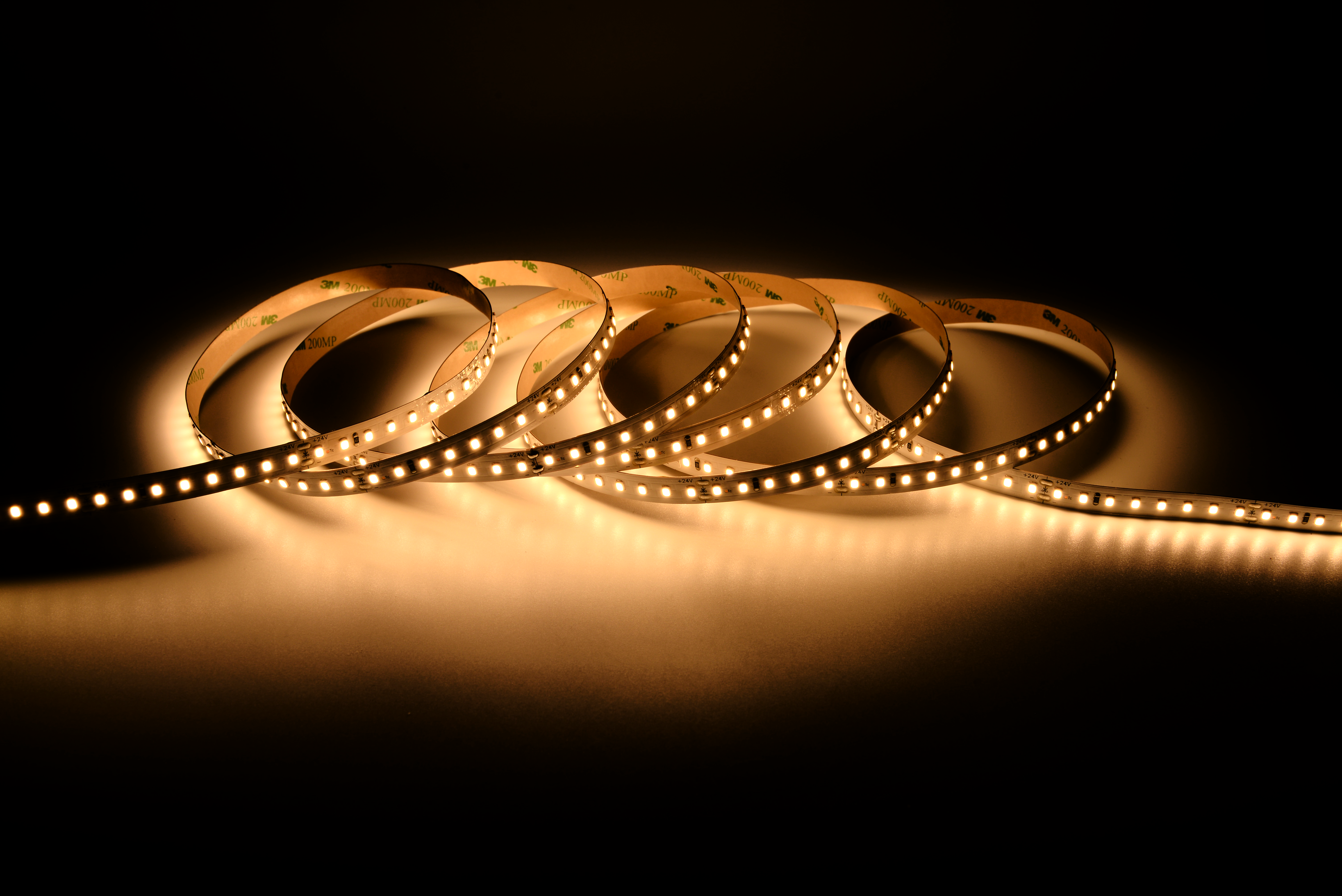

Scanstrip GLOW IP20

Dimensions

Dimensions

5000 × 1 × 1,2 mm

5000 × 1 × 1,2 mm
Weight

120 g

120 g

Specification

Material

2Oz Electrolytic Copper
Color

White
Electrical Safety Class

Class III
IP-Grade

IP20
Electrical Connection

fixed mounting

Kabel
EL Number

3203940

3203943
GTIN

7041661270411

7041661270435

Technical

Wattage LED

45W, 9W/m

45W, 9W/m
Ground Current/Voltage

DC24V
Lamp Base

LED
Replaceable LED

No
Max Wattage

45W
Supplied Light Sources

Yes
Wattage Supplied Light Sources

45W, 9W/m
Brightness

5850 lm, 1170 lm/m

5850 lm, 1170 lm/m
Light Efficiency Luminaire

85lm/W
Color Rendering

>90
Color Temperature

2700K

3000K
SDCM

<3
Life Span

56000
Light Angle

120°
Dimmable

Yes
Driver

not included
