71012Product Number: 71012-01 Product Number: 71015-01

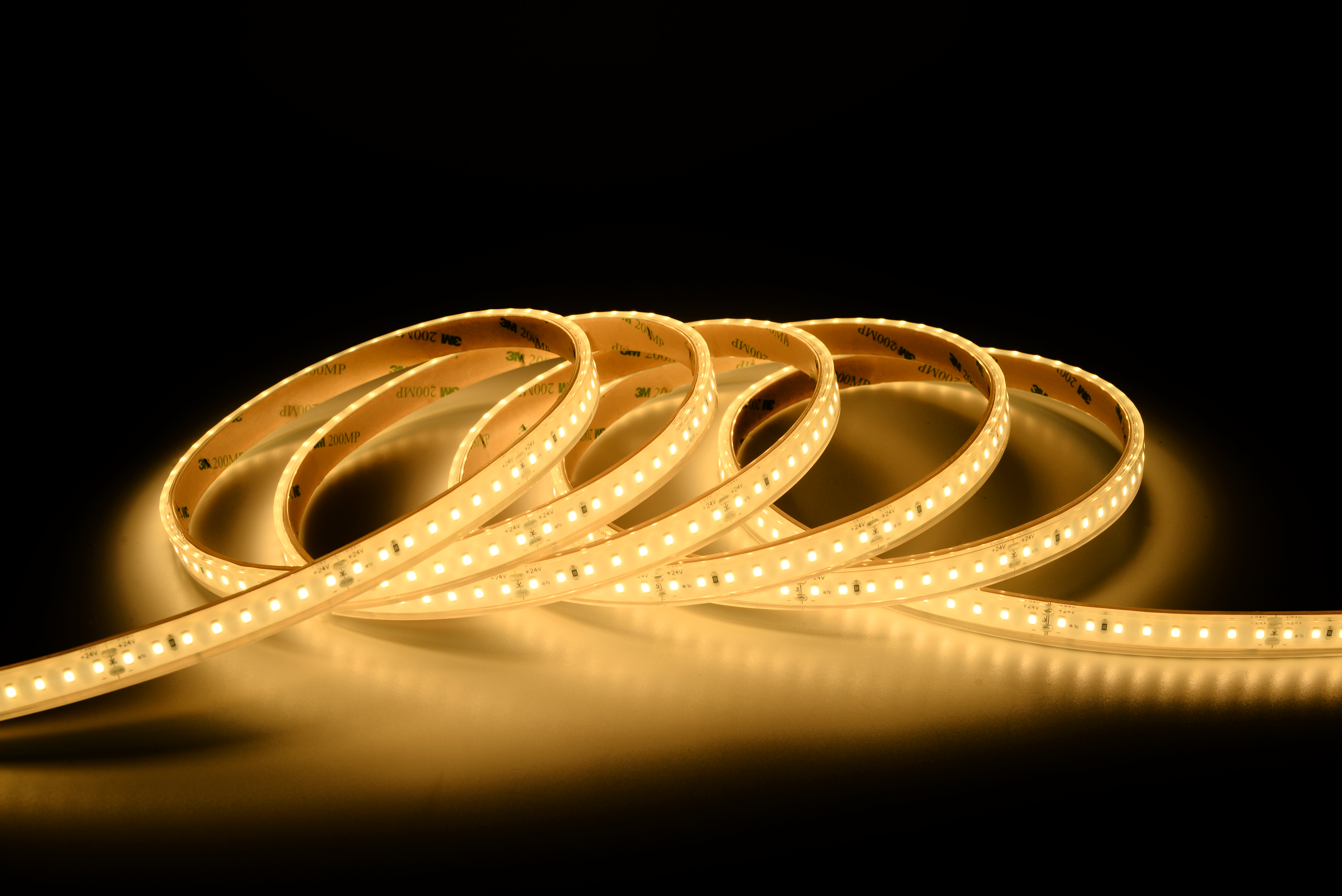

Scanstrip GLOW IP67

Dimensions

Dimensions

5000 × 1,25 × 4 mm

5000 × 1,25 × 4 mm
Weight

520 g

520 g

Specification

Material

2Oz Electrolytic Copper
Color

White
Electrical Safety Class

Class III
IP-Grade

IP67
Electrical Connection

Kabel
EL Number

3203942

3203945
GTIN

7041661270626

7041661270459

Technical

Wattage LED

45W, 9W/m

45W, 9W/m
Ground Current/Voltage

DC24V
Lamp Base

LED
Replaceable LED

No
Max Wattage

45W
Supplied Light Sources

Yes
Brightness

5850 lm, 1170 lm/m

5850 lm, 1170 lm/m
Light Efficiency Luminaire

85lm/W
Color Rendering

>90
Color Temperature

2700K

3000K
SDCM

<3
Life Span

56000
Light Angle

120°
Dimmable

Yes
Driver

not included
